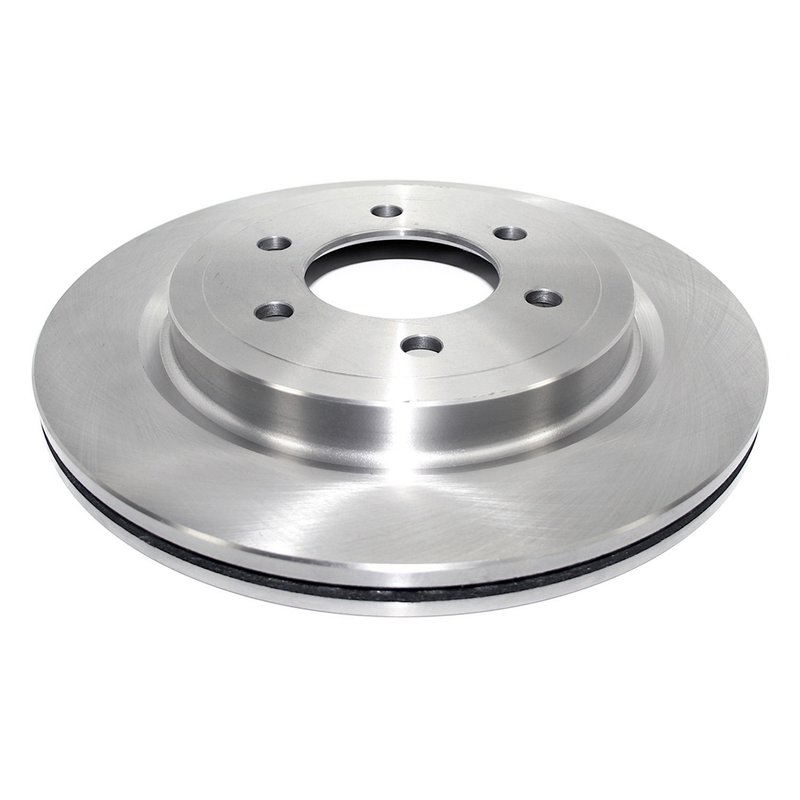

DuraGo BR901652 Disc Brake Rotor - Rear
| Brand | DuraGo BR901652 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.54 |
| Center Hole Diameter | 90 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.89 |
| Discard Thickness | 22.5 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.31 |
| Mounting Bolt Hole Circle Diameter | 135 |
| Mounting Bolt Hole Diameter | 0.62 |
| Mounting Bolt Hole Diameter | 15.7 |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.94 |
| Nominal Thickness | 24 |
| Outside Diameter | 13.23 |
| Outside Diameter | 336 |
| Overall Height | 1.78 |
| Overall Height | 45.2 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Ford and Lincoln · 11 vehicles |
Vented design. Promotes efficient airflow for more consistent braking performance.
Full cast construction. Cast iron rotor built for dependable strength and durability.
ISO-certified manufacturing. Made to meet fit, form, and function requirements.
Cross-references JL3Z2C026A for the same application. See all 1.
DuraGo BR901652 Rear Brake Rotor
The DuraGo BR901652 is a rear disc brake rotor built for specific Ford and Lincoln applications. It uses full cast iron construction with a vented design and non-directional brake surface for consistent braking contact.
Key Features
- Cast iron, full cast rotor construction
- Vented rotor design for rear brake applications
- Non-directional brake surface
- Conventional rotor design
- Outside diameter: 13.23 in. / 336 mm
- Nominal thickness: 0.94 in. / 24 mm
- Discard thickness: 0.89 in. / 22.5 mm
- Center hole diameter: 3.54 in. / 90 mm
- 6-bolt mounting pattern with 135 mm bolt circle
- Part number BR901652
Detailed Description
DuraGo manufactures aftermarket brake components through ISO-certified factories with a focus on fit, form, and function. The BR901652 rear rotor follows that approach with a conventional, vented cast iron design sized for rear brake service on 2018-2021 Ford Expedition, 2018-2021 Lincoln Navigator, and 2018-2020 Ford F-150 models with Electronic Parking Brake noted for the F-150 fitment. This rotor measures 13.23 inches in outside diameter and uses a 6-hole, 135 mm bolt circle for the listed applications. The BR901652 is a direct-fit replacement choice for drivers searching for a rear brake rotor for Ford Expedition, Lincoln Navigator, or Ford F-150 rear brake service.
This part cross-references JL3Z2C026A for the same application.
Common Problems This Rotor Addresses
- Rear brake pulsation from worn rotor surfaces
- Brake noise caused by uneven rotor wear
- Reduced braking consistency from rotor thickness loss
- Corrosion-related rotor replacement on service intervals
- Brake service needs on rear axle applications
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and rear axle fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. For 2018-2020 Ford F-150 applications, confirm the Electronic Parking Brake configuration matches the vehicle being serviced. Always inspect pads, caliper hardware, and wheel bearings during rotor replacement.
Quality Assurance
DuraGo brake rotors are manufactured in ISO-certified factories and built to meet fit, form, and function requirements for the listed applications. Part number BR901652 is produced under DuraGo’s aftermarket brake program for professional repair use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Ford | Expedition | Rear | — |
| 2021 | Lincoln | Navigator | Rear | — |
| 2020 | Ford | Expedition | Rear | — |
| 2020 | Ford | F-150 | Rear | Electronic Parking Brake |
| 2020 | Lincoln | Navigator | Rear | — |
| 2019 | Ford | Expedition | Rear | — |
| 2019 | Ford | F-150 | Rear | Electronic Parking Brake |
| 2019 | Lincoln | Navigator | Rear | — |
| 2018 | Ford | Expedition | Rear | — |
| 2018 | Ford | F-150 | Rear | Electronic Parking Brake |
| 2018 | Lincoln | Navigator | Rear | — |
