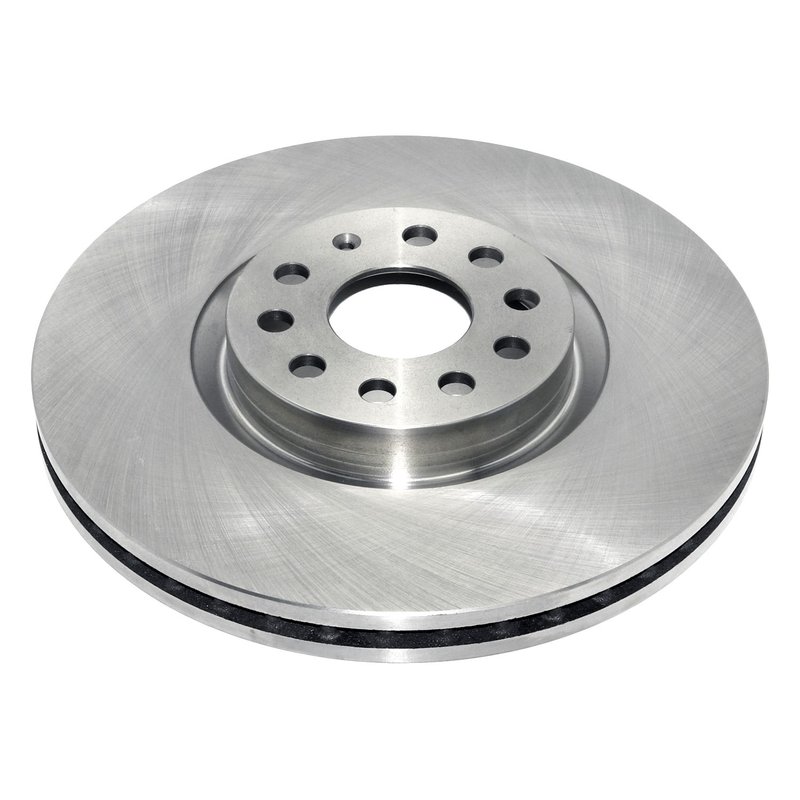

DuraGo BR901684 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Volkswagen Atlas Models

The DuraGo BR901684 disc brake rotor is engineered to provide reliable braking performance for Volkswagen Atlas and Atlas Cross Sport vehicles. Crafted from full cast iron, this vented rotor is designed to maintain consistent stopping power under various driving conditions.

• Material: Full cast iron construction for durability
• Vented rotor design to improve heat dissipation
• Nominal thickness of 1.18 inches (30 mm) with discard thickness at 1.06 inches (27 mm)
• Outside diameter measures 13.19 inches (335 mm)
• Five mounting bolt holes with a 4.41 inch (112 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type compatible with Volkswagen Atlas and Atlas Cross Sport

Product Details and Specifications

The DuraGo BR901684 rotor features a full cast iron construction that offers strength and resistance to warping. Its vented design allows air to flow between the rotor surfaces, helping to reduce heat buildup during braking. The rotor’s nominal thickness is 1.18 inches (30 mm), with a discard thickness of 1.06 inches (27 mm), ensuring it meets safety standards for replacement. Measuring 13.19 inches (335 mm) in outside diameter, this rotor fits Volkswagen Atlas and Atlas Cross Sport models requiring a 5-bolt mounting pattern with a 4.41 inch (112 mm) bolt circle diameter. The non-directional brake surface simplifies installation without concern for rotor orientation. This conventional rotor does not include an ABS tone ring and does not feature cross-drilled or slotted surfaces.

Compatible Vehicles and Applications

• Volkswagen Atlas (all applicable years requiring this rotor size)
• Volkswagen Atlas Cross Sport
• Replacement for worn, warped, or damaged front disc brake rotors
• Addresses issues such as brake pulsation, noise, and reduced stopping power
• Suitable for routine brake system maintenance and rotor upgrades

Installation Notes and Tips

When installing the DuraGo BR901684 rotor, ensure the mounting surface is clean and free of rust or debris to promote proper fitment. Use the correct torque specifications for the five mounting bolts to avoid rotor distortion. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Verify rotor thickness before installation to confirm it meets minimum discard specifications.

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet industry standards for material quality and dimensional accuracy. While this rotor does not include a rust-resistant coating, its cast iron construction provides reliable durability under normal operating conditions. The BR901684 part number is backed by DuraGo’s quality control processes to ensure consistent performance. Please refer to DuraGo’s warranty policy for specific coverage details.
