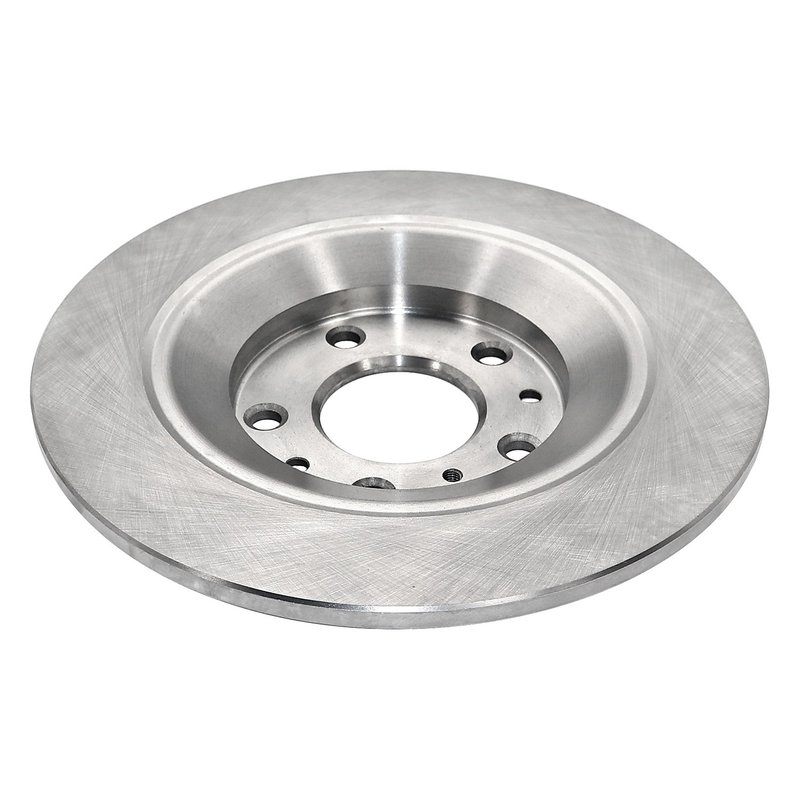

DuraGo BR901814 Disc Brake Rotor - Rear

Overview of DuraGo BR901814 Disc Brake Rotor

The DuraGo BR901814 is a solid disc brake rotor designed specifically for Mazda CX-30 models. Crafted from durable cast iron, this rotor provides reliable braking performance and consistent wear characteristics for your vehicle.

• Material: Cast iron for strength and heat dissipation
• Rotor Type: Solid, conventional design
• Outside Diameter: 11.92 inches (302.7 mm)
• Nominal Thickness: 0.39 inches (10 mm)
• Discard Thickness: 0.31 inches (8 mm)
• Mounting Bolt Holes: 5 holes with 0.52 inch (13.1 mm) diameter
• Center Hole Diameter: 2.68 inches (68 mm)
• Non-directional brake surface for versatile installation
• No ABS tone ring included
• No rust resistant coating applied

Detailed Product Description

The DuraGo BR901814 disc brake rotor is engineered with a full cast construction using high-quality cast iron, ensuring durability and effective heat management during braking. Its solid rotor design is conventional, providing a straightforward replacement option for Mazda CX-30 vehicles requiring dependable stopping power. The rotor measures 11.92 inches in outside diameter and maintains a nominal thickness of 0.39 inches, with a discard thickness of 0.31 inches to indicate when replacement is necessary. The mounting bolt pattern includes five holes with a 4.5 inch (114.3 mm) bolt circle diameter, compatible with the Mazda CX-30's specifications. This rotor does not include an ABS tone ring and features a non-directional braking surface, allowing for flexible installation without concern for rotor orientation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor thickness below discard limits
• Eliminating noise or vibration from uneven rotor surfaces
• Upgrading to a reliable rotor compatible with Mazda CX-30 brake systems
• Resolving rotor damage from corrosion or physical wear

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for safety
• Check compatibility with existing brake pads and hardware
• Inspect wheel bearings and hub assembly during rotor replacement

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet industry standards for fit, form, and function. While this product does not include a rust resistant coating, the cast iron construction provides consistent performance under normal operating conditions. Please refer to DuraGo's warranty policy for specific coverage details related to the BR901814 rotor.
