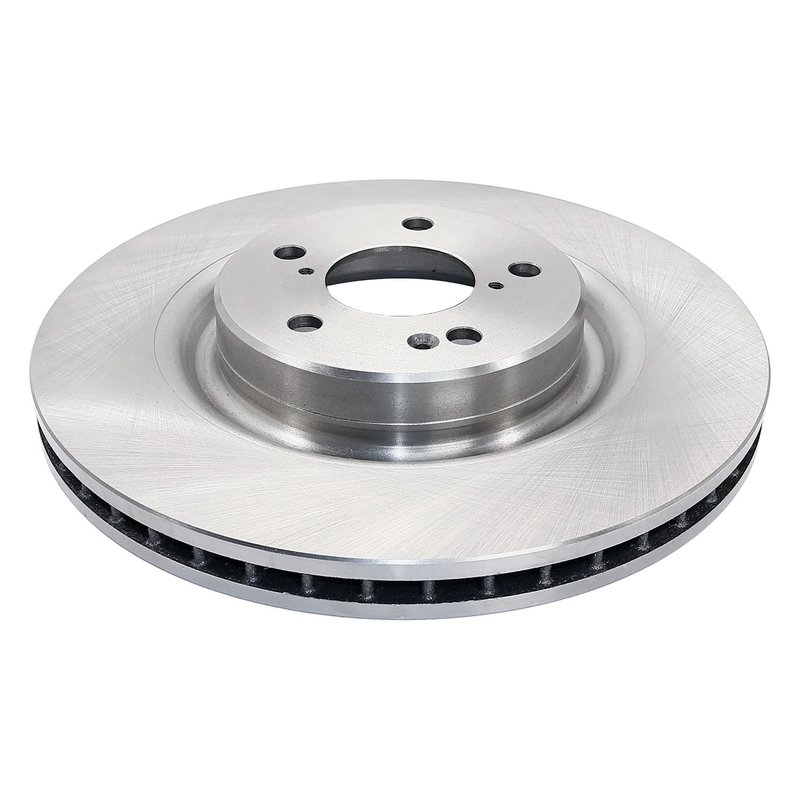

DuraGo BR901910 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Acura MDX and Honda Pilot

The DuraGo BR901910 disc brake rotor is engineered to provide reliable braking performance for Acura MDX and Honda Pilot models. Constructed from full cast iron, this vented rotor is designed to maintain consistent stopping power under various driving conditions.

• Material: Full cast iron construction for durability
• Vented design to improve heat dissipation
• Nominal thickness: 1.18 inches (30 mm) with discard thickness at 1.1 inches (28 mm)
• Outside diameter: 13.78 inches (350 mm)
• Mounting bolt pattern: 5 holes with 4.72 inches (120 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Overall height: 2.17 inches (55.1 mm)
• Center hole diameter: 2.76 inches (70.2 mm)

Technical Details and Construction

The DuraGo BR901910 rotor features a full cast iron construction, providing a solid and durable braking surface. Its vented design allows for better heat dissipation compared to solid rotors, helping to reduce brake fade during extended use. The rotor measures 13.78 inches in outside diameter and has a nominal thickness of 1.18 inches, with a discard thickness of 1.1 inches, ensuring it meets OEM specifications for safe operation. The non-directional brake surface allows for flexible installation without concern for rotor orientation. This rotor is designed with a 5-bolt mounting pattern and a 4.72-inch bolt circle diameter, compatible with specific Acura MDX and Honda Pilot models.

Compatible Vehicles and Applications

This disc brake rotor is compatible with the following vehicles:

• Acura MDX
• Honda Pilot

It is intended for use in replacing worn or damaged front or rear rotors on these models, restoring proper braking function and safety.

Common Issues Addressed by This Rotor

• Brake pulsation or vibration due to warped rotors
• Reduced braking efficiency from worn or thin rotors
• Overheating and brake fade during heavy braking
• Noise caused by uneven rotor surfaces
• Corrosion-related rotor damage (note: this rotor does not have rust-resistant coating)

Installation Notes and Tips

When installing the DuraGo BR901910 rotor, ensure the rotor thickness is above the discard thickness of 1.1 inches to maintain safe braking performance. Clean the rotor surface before installation to remove any protective coatings or debris. Since this rotor has a non-directional surface, it can be installed on either side without concern for directional rotation. Verify the mounting bolt pattern matches your vehicle’s hub assembly. Proper torque specifications should be followed to avoid rotor warping.

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet or exceed OEM standards for fit and function. The full cast iron construction and vented design contribute to consistent braking performance. While this product does not include a rust-resistant coating, it is engineered for durability under normal operating conditions. Warranty information is provided by DuraGo and may vary; please consult the manufacturer or authorized distributor for specific warranty details.
