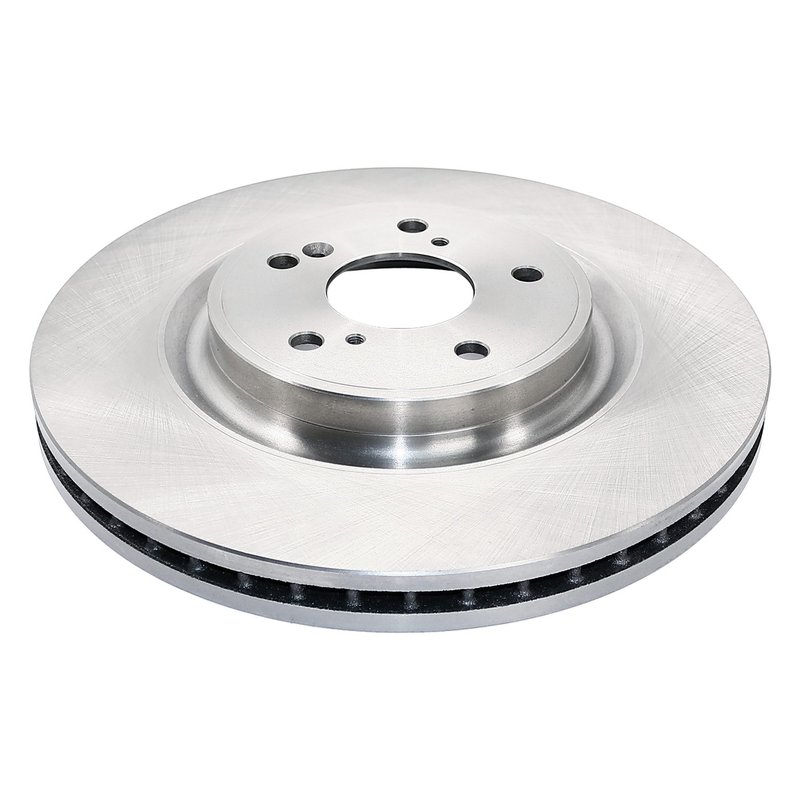

DuraGo BR901914 Disc Brake Rotor - Front
| Brand | DuraGo BR901914 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.02 |
| Discard Thickness | 26 |
| Nominal Thickness | 1.1 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | No |
| Overall Height | 1.82 |
| Overall Height | 46.2 |
| Outside Diameter | 12.6 |
| Outside Diameter | 320 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.53 |
| Center Hole Diameter | 64.2 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.5 |
| Mounting Bolt Hole Diameter | 12.7 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Honda · 3 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Vented design. Helps promote efficient airflow through the rotor.
Cast iron construction. Full cast rotor for dependable braking performance.
Cross-references 45251TLAA50 for the same application. See all 1.
DuraGo BR901914 Front Brake Rotor for Honda CR-V
The DuraGo BR901914 is a front disc brake rotor built for 2020-2022 Honda CR-V applications. It uses a full cast, vented cast iron construction with a non-directional brake surface to support consistent pad contact and straightforward service work.
Key Features
- Fits 2020-2022 Honda CR-V, front
- Part number BR901914 for direct catalog lookup
- Cast iron, full cast rotor construction
- Vented rotor design for front brake use
- Non-directional brake surface for even pad bedding
- Outside diameter: 12.6 in. / 320 mm
- Nominal thickness: 1.1 in. / 28 mm
- Discard thickness: 1.02 in. / 26 mm
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Center hole diameter: 2.53 in. / 64.2 mm
Detailed Description
DuraGo manufactures aftermarket brake components through ISO certified factories with attention to fit, form, and function. The BR901914 front rotor is engineered for the Honda CR-V platform and follows the dimensional requirements needed for proper wheel-end fitment, including a 320 mm outside diameter, 5-lug mounting pattern, and vented construction. The non-directional surface supports uniform braking contact during rotor service, while the cast iron build provides the mass and thermal characteristics expected in a conventional replacement rotor. This part cross-references 45251TLAA50 for the same application.
Common Brake Service Issues This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from a worn front rotor surface
- Noise from uneven pad-to-rotor contact
- Rotor replacement needs during front brake service on a Honda CR-V
- Fitment replacement for a damaged or out-of-spec OE-style rotor
Installation Notes and Tips
Confirm rotor diameter, center bore, bolt circle, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle service manual for torque and bedding procedures. Fits 2020-2022 Honda CR-V, front.
Quality Assurance
DuraGo brake rotors are produced in ISO certified factories and built to meet fit, form, and function requirements for the listed application. Part number BR901914 is cataloged for direct replacement use on the front axle of the 2020-2022 Honda CR-V.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Honda | CR-V | FULL HYBRID EV-GAS (FHEV) | Front | — |
| 2021 | Honda | CR-V | FULL HYBRID EV-GAS (FHEV) | Front | — |
| 2020 | Honda | CR-V | FULL HYBRID EV-GAS (FHEV) | Front | — |
