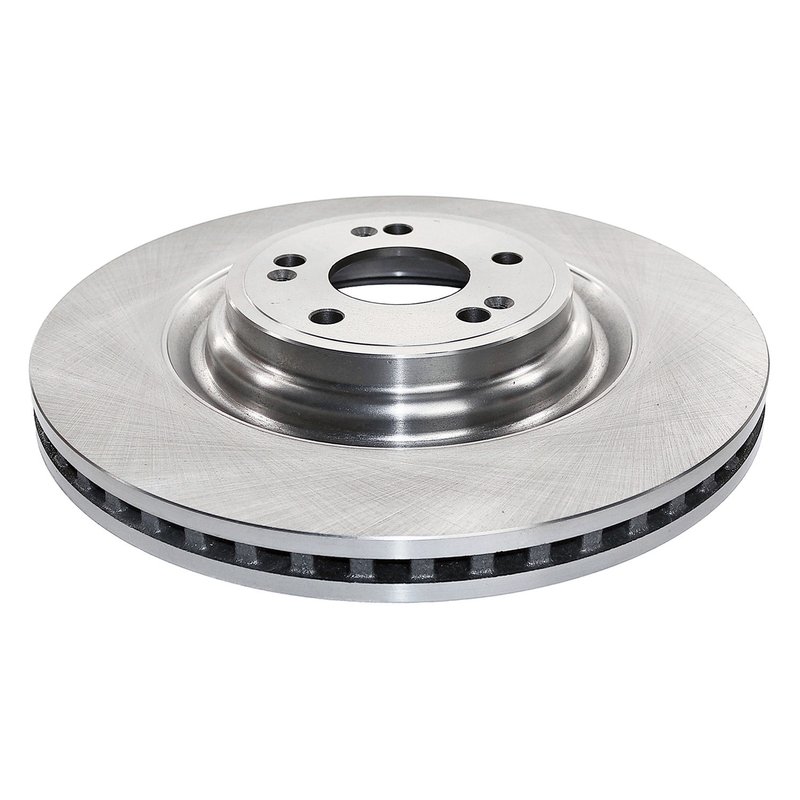

DuraGo BR901920 Disc Brake Rotor - Front

DuraGo BR901920 Front Brake Rotor

The DuraGo BR901920 is a front disc brake rotor built from cast iron with a full cast construction and a vented design for consistent braking performance. It is engineered for direct fitment on select Genesis GV80 applications, including 2021-2025 Genesis GV80 front rotor positions with 360 mm rotor diameter coverage.

Key Features

• Cast iron construction for dependable braking surface integrity
• Full cast, vented rotor design
• Non-directional brake surface for straightforward service replacement
• Conventional, drum-in-hat style rotor configuration
• 5-bolt mounting pattern with 114.3 mm bolt circle diameter
• Outside diameter: 14.17 in. / 360 mm
• Center hole diameter: 2.72 in. / 69 mm
• Nominal thickness: 1.18 in. / 30 mm
• Discard thickness: 1.1 in. / 28 mm

Detailed Description

DuraGo manufactures aftermarket brake components through ISO-certified factories with a focus on fit, form, and function. The BR901920 front brake rotor follows those standards with a vented cast iron design, 5 mounting bolt holes, and a non-directional braking surface that supports even pad contact during service replacement. This part cross-references OE-style application number 51712T6200 for the same application. It is a direct-fit option for 2021-2023 Genesis GV80 front and 2024-2025 Genesis GV80 front applications, including the 360 mm rotor diameter specification used on those vehicles. If you are searching for a Genesis GV80 front brake rotor or a DuraGo BR901920 replacement rotor, this part matches the listed fitment and dimensions.

Common Problems This Rotor Can Address

• Front brake pulsation caused by rotor wear or thickness variation
• Reduced braking consistency from a worn or heat-cycled rotor surface
• Service replacement needs for a damaged or below-spec front rotor
• Brake noise related to uneven rotor contact surfaces
• Fitment replacement for Genesis GV80 front brake service

Installation Notes and Tips

Verify rotor diameter, center bore, bolt pattern, and thickness against the vehicle before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads, calipers, and hardware condition during brake service. For 2024-2025 Genesis GV80 models, confirm the 360 mm rotor diameter specification before ordering. Proper bedding-in of new pads and rotors helps establish even contact on the new braking surface.

Quality Assurance

DuraGo brake drums and rotors are produced in ISO-certified factories and built to meet fit, form, and function requirements for aftermarket brake service. The BR901920 is manufactured as a conventional replacement rotor for select Genesis GV80 front applications.
