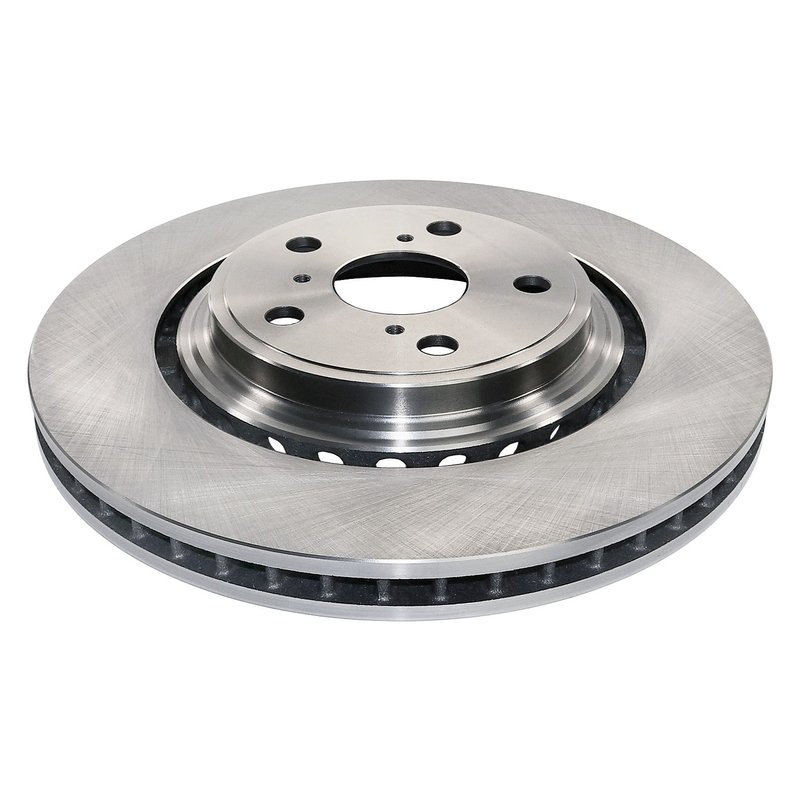

DuraGo BR901996 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Lexus and Toyota

The DuraGo BR901996 disc brake rotor is engineered to provide reliable braking performance for Lexus Grand Highlander and Toyota TX350 models. Crafted from full cast iron, this vented rotor is designed to maintain consistent stopping power under various driving conditions.

• Material: Full cast iron construction for durability
• Vented rotor design for improved heat dissipation
• Nominal thickness of 1.1 inches (28 mm) with discard thickness at 0.98 inches (25 mm)
• Outside diameter of 13.39 inches (340 mm) suitable for specified vehicle models
• Five mounting bolt holes with a 120 mm bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type without ABS tone ring

Technical Details and Specifications

The DuraGo BR901996 rotor features a full cast iron construction that balances strength and heat resistance. Its vented design helps reduce brake fade by allowing air to circulate between the rotor surfaces, which is essential for maintaining braking efficiency during extended use. The rotor measures 13.39 inches (340 mm) in outside diameter and has an overall height of 1.95 inches (49.5 mm). The nominal thickness is 1.1 inches (28 mm), with a discard thickness of 0.98 inches (25 mm), indicating when the rotor should be replaced to ensure safety.

Mounting is facilitated by five bolt holes arranged on a 120 mm bolt circle diameter, with each hole measuring 0.65 inches (16.5 mm) in diameter. The center hole diameter is 2.44 inches (62 mm). This rotor is designed as a conventional, non-directional brake surface, making it compatible with the brake systems of Lexus Grand Highlander and Toyota TX350 models without ABS tone ring integration.

Compatible Vehicles and Applications

• Replacement disc brake rotor for Lexus Grand Highlander
• Suitable for Toyota TX350 brake system upgrades or repairs
• Addresses issues such as brake rotor wear and reduced braking efficiency
• Helps resolve brake noise caused by warped or damaged rotors
• Improves heat dissipation to reduce brake fade during heavy use

Installation Notes and Tips

When installing the DuraGo BR901996 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the rotor thickness is within the nominal range and replace if below discard thickness. Use proper torque specifications for the five mounting bolts to avoid rotor warping. This rotor is non-directional, so it can be installed on either side of the vehicle without concern for rotation direction.

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet industry standards for material quality and dimensional accuracy. While specific warranty details are not provided, DuraGo products typically undergo rigorous quality control to ensure consistent performance and durability. Always consult vehicle manufacturer guidelines and local regulations when replacing brake components.
