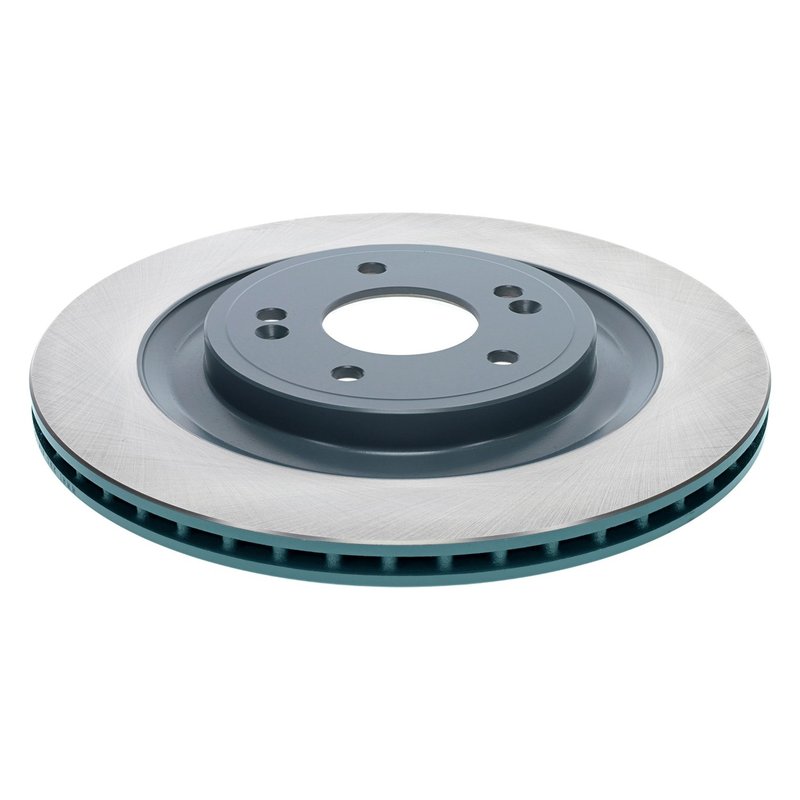

DuraGo BR902010-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Hyundai and Kia

The DuraGo BR902010-01 disc brake rotor is engineered to provide reliable braking performance for select Hyundai and Kia models. Designed with a full cast construction and rust-resistant coating, this rotor ensures durability and consistent stopping power under various driving conditions.

• Material: Cast iron for strength and heat dissipation
• Nominal thickness: 0.79 inches (20 mm) with discard thickness at 0.71 inches (18 mm)
• Vented rotor design for improved cooling
• Rust-resistant coating to reduce corrosion
• Overall height: 1.38 inches (35 mm)
• Outside diameter: 12.8 inches (325 mm)
• Mounting bolt hole quantity: 5 with 0.49 inches (12.5 mm) diameter
• Non-directional brake surface, conventional rotor type

Product Details and Specifications

The DuraGo BR902010-01 rotor features a full cast iron construction that balances durability with effective heat management. Its vented design allows air to flow between the rotor surfaces, helping to dissipate heat generated during braking and reduce the risk of brake fade. The rotor’s rust-resistant coating extends its service life by protecting against corrosion, which is especially beneficial in humid or wet environments.

With a nominal thickness of 0.79 inches (20 mm) and a discard thickness of 0.71 inches (18 mm), this rotor meets the necessary specifications for safe and effective braking. The 12.8-inch (325 mm) outside diameter and 1.38-inch (35 mm) overall height are designed to fit specific Hyundai and Kia vehicles, including the Carnival, Palisade, Santa Fe, and Sorento models. The rotor includes five mounting bolt holes with a 4.5-inch (114.3 mm) bolt circle diameter, ensuring proper fitment and secure installation.

Compatible Vehicles and Applications

This disc brake rotor is compatible with the following vehicles:

• Hyundai Carnival
• Hyundai Palisade
• Hyundai Santa Fe
• Kia Sorento

It is designed to replace worn or damaged rotors, restoring braking efficiency and safety for these models.

Common Issues Addressed by This Rotor

• Brake pulsation or vibration due to warped rotors
• Reduced braking performance from worn rotor surfaces
• Corrosion and rust buildup affecting rotor integrity
• Overheating and brake fade during extended braking
• Uneven brake pad wear caused by damaged rotors

Installation Notes and Tips

When installing the DuraGo BR902010-01 rotor, ensure the mounting surface is clean and free of debris to promote proper seating. Verify that the rotor thickness is within the specified limits before installation. Since this rotor is non-directional, it can be installed on either side of the vehicle without concern for rotation direction. Always torque mounting bolts to manufacturer specifications and inspect brake pads for wear during rotor replacement.

Quality Assurance and Warranty

DuraGo rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The BR902010-01 rotor includes a rust-resistant coating to enhance longevity and maintain performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
