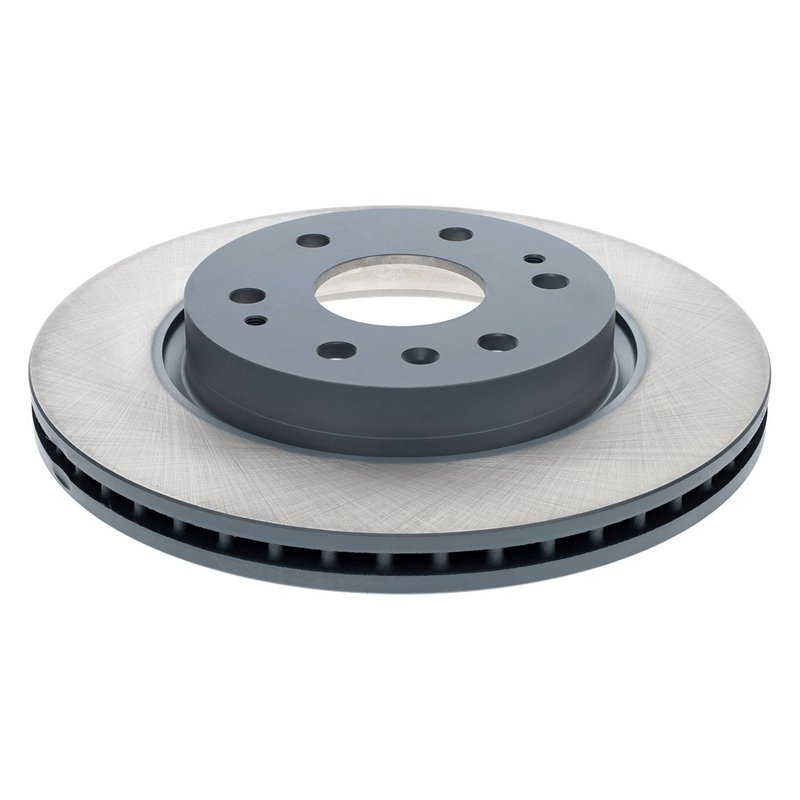

DuraGo BR902020-01 Disc Brake Rotor - Front
OE Quality 60-Day Returns
DuraGo

DuraGo BR902020-01 Disc Brake Rotor - Front

Brand DuraGo BR902020-01
Position Front
Material Cast iron
Discard Thickness 0.98
Discard Thickness 25
Nominal Thickness 1.07
Nominal Thickness 27.2
Construction Full cast
Rust Resistant Coating Yes
Overall Height 2.11
Overall Height 53.5
Outside Diameter 13.39
Outside Diameter 340
Mounting Bolt Hole Quantity 6
ABS Tone Ring Included No
Solid Or Vented Type Rotor Vented
Center Hole Diameter 3.09
Center Hole Diameter 78.5
Mounting Bolt Hole Circle Diameter 139.7
Mounting Bolt Hole Circle Diameter 5.5
Mounting Bolt Hole Diameter 0.63
Mounting Bolt Hole Diameter 15.9
Directional or Non-Directional Brake Surface Non-directional
Conventional Or Drum-In-Hat Type Rotor Conventional
Cross Drilled No
Slotted No
Fits Chevrolet and GMC · 6 vehicles

Corrosion-resistant coating. Helps protect the hat and edge for lasting defense against rust.

Vented design. Promotes airflow for more consistent braking performance.

Full cast construction. Cast iron rotor built to meet fit, form, and function requirements.

Cross-references 13549409 for the same application. See all 1.

$73.29Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $73.29
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

DuraGo BR902020-01 Front Brake Rotor

The DuraGo Titanium Series BR902020-01 is a front disc brake rotor built from cast iron with a vented, full-cast construction. It features a corrosion-resistant coating on the hat and edge, along with a titanium gray finish that suits open-wheel vehicle designs.

Key Features

  • Cast iron construction with a vented rotor design
  • Rust-resistant coating on the hat and edge
  • Non-directional brake surface for consistent serviceability
  • Conventional rotor design with no cross-drilling or slots
  • ISO-certified manufacturing for fit, form, and function
  • Outside diameter: 13.39 in. (340 mm)
  • Nominal thickness: 1.07 in. (27.2 mm); discard thickness: 0.98 in. (25 mm)
  • 6-bolt mounting pattern with 5.5 in. (139.7 mm) bolt circle

Detailed Description

DuraGo BR902020-01 is a front brake rotor engineered for 2023-2026 Chevrolet Colorado and 2023-2026 GMC Canyon applications. The coated hat and edge help protect exposed surfaces from corrosion, while the titanium gray finish provides a clean appearance behind open wheels. This rotor uses a vented, conventional design with a non-directional braking surface for straightforward resurfacing and service. This part cross-references OE number 13549409 for the same application.

Common Issues This Rotor Helps Address

  • Brake pulsation caused by rotor wear or thickness variation
  • Reduced braking performance from a worn front rotor
  • Surface rust on exposed rotor areas
  • Noise or vibration related to rotor condition
  • Service replacement needs for front brake maintenance

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Follow the vehicle service procedure for torque specifications and brake bedding after installation. Fits 2023-2026 Chevrolet Colorado, front. Fits 2023-2026 GMC Canyon, front.

Quality Assurance

DuraGo manufactures this rotor in an ISO-certified factory and builds it to meet fit, form, and function requirements. The Titanium Series focuses on corrosion protection and service-ready construction for professional brake replacement work.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2025ChevroletColoradoFrontCoated Hat and Edge for Rust Resistance
2025GMCCanyonFrontCoated Hat and Edge for Rust Resistance
2024ChevroletColoradoFrontCoated Hat and Edge for Rust Resistance
2024GMCCanyonFrontCoated Hat and Edge for Rust Resistance
2023ChevroletColoradoFrontCoated Hat and Edge for Rust Resistance
2023GMCCanyonFrontCoated Hat and Edge for Rust Resistance
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
13549409
