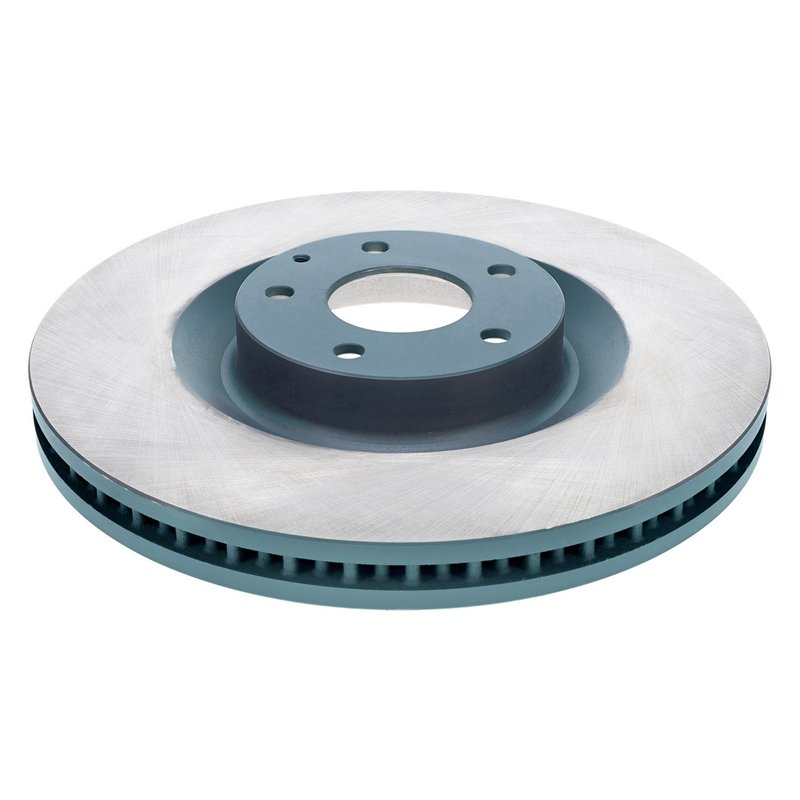

DuraGo BR902026-01 Disc Brake Rotor - Front

DuraGo BR902026-01 Front Brake Rotor

The DuraGo Titanium Series BR902026-01 is a front disc brake rotor built from cast iron with a full cast construction and a vented design. It features a corrosion-resistant coating on the hat and edge, plus a titanium gray finish that suits open-wheel vehicle styling.

Compatible with 2024-2026 Mazda CX-90 front and 2025-2026 Mazda CX-70 front, this rotor is manufactured in an ISO certified factory to support fit, form, and function requirements.

Key Features

• Part number BR902026-01
• Front vented disc brake rotor
• Cast iron, full cast construction
• Rust-resistant coating on hat and edge
• Non-directional brake surface
• 347 mm outside diameter
• 5-bolt mounting pattern with 114.3 mm bolt circle
• 2.68 in center hole diameter
• No cross-drilling or slotting

Detailed Description

DuraGo BR902026-01 is engineered as a conventional front rotor for Mazda CX-90 and Mazda CX-70 applications that use a 347 mm rotor diameter. The vented design supports heat management during braking, while the coated hat and edge help resist corrosion in exposed areas. The titanium gray finish also provides a clean appearance behind open wheel designs. This part cross-references K13T33251 for the same application.

Built to DuraGo’s dimensional specifications, this rotor lists a nominal thickness of 1.26 in and a discard thickness of 1.18 in, with an overall height of 1.99 in. The non-directional surface supports straightforward service replacement when matching the original brake setup.

What This Rotor Helps Address

• Brake pulsation caused by a worn or out-of-spec front rotor
• Surface rust on exposed rotor hat and edge areas
• Reduced braking consistency from heat buildup in a vented front rotor
• Fitment issues when replacing a 347 mm front rotor on Mazda CX-90 or Mazda CX-70
• Replacement needs for a conventional, non-slotted, non-drilled rotor design

Installation Notes and Tips

Verify rotor diameter, bolt pattern, center hole diameter, and thickness before installation. This rotor is listed for front position use on 2024-2026 Mazda CX-90 and 2025-2026 Mazda CX-70 only. Clean the hub mounting surface thoroughly and confirm the brake pads and caliper hardware are in serviceable condition before completing the brake job.

Quality Assurance

DuraGo manufactures the Titanium Series in an ISO certified factory and builds the rotor to meet fit, form, and function requirements. The corrosion-resistant coating is applied to the hat and edge for added protection in service.
