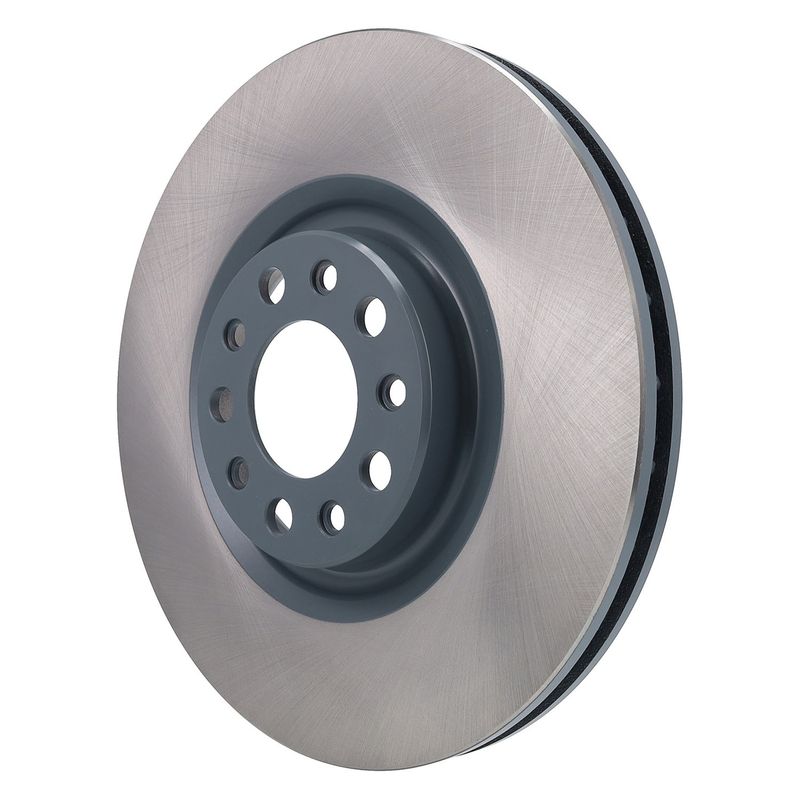

DuraGo BR902038-01 Disc Brake Rotor - Front

DuraGo Titanium Series Brake Rotor

The DuraGo Titanium Series brake rotor is built for drivers and repair shops that need a vented disc brake rotor with corrosion protection and consistent fitment. Part number BR902038-01 features a titanium gray finish that helps protect the hat and edge while also giving the rotor a clean look behind open wheel designs.

Compatible With select vehicle applications that use a 330 mm vented front rotor, this DuraGo rotor is engineered in an ISO-certified factory to meet fit, form, and function requirements. It is a practical OE-style replacement for service work on vehicles such as Chrysler 300 and Dodge Charger applications where the correct rotor dimensions matter.

Key Features

• Part number BR902038-01
• Cast iron, full cast construction
• Vented disc brake rotor design
• Rust resistant coating on the hat and edge
• Titanium gray finish for a cleaner appearance behind open wheels
• Non-directional brake surface
• Conventional rotor design, not cross-drilled or slotted
• 5-bolt mounting pattern with 110 mm bolt circle
• 330 mm outside diameter and 70 mm center hole diameter

Detailed Description

DuraGo BR902038-01 is a Titanium Series brake rotor made from cast iron and finished with a corrosion-resistant coating for added protection in exposed areas. The rotor measures 330 mm in outside diameter, 28 mm nominal thickness, and 44.8 mm overall height, with a vented, non-directional braking surface for straightforward service replacement. Its conventional full cast construction is suited to applications that call for a standard replacement rotor rather than a drilled or slotted performance design.

This rotor is a direct-fit style option for select Chrysler 300 and Dodge Charger brake service applications that require the specified 5-lug, 110 mm bolt circle configuration. The BR902038-01 part number is also useful when matching interchange references during brake repair and parts lookup.

This part cross-references OE numbers 68311958AA and 68413795AA for the same application.

Common Problems This Rotor Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Corrosion on the rotor hat and outer edge
• Reduced braking consistency from an aged or heat-cycled rotor
• Noise or vibration related to worn brake rotor surfaces
• Service replacement needs for Chrysler 300 and Dodge Charger brake systems

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt pattern, and thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake vibration. Inspect pads, calipers, and hardware condition during service, and follow the vehicle manufacturer’s torque specifications and bedding procedure after installation. Confirm the rotor position and application match the vehicle’s brake package before ordering.

Quality Assurance

DuraGo manufactures the Titanium Series rotor in an ISO-certified facility and builds it to meet fit, form, and function requirements. The corrosion-resistant coating and controlled manufacturing process support consistent service replacement quality for professional brake work.
