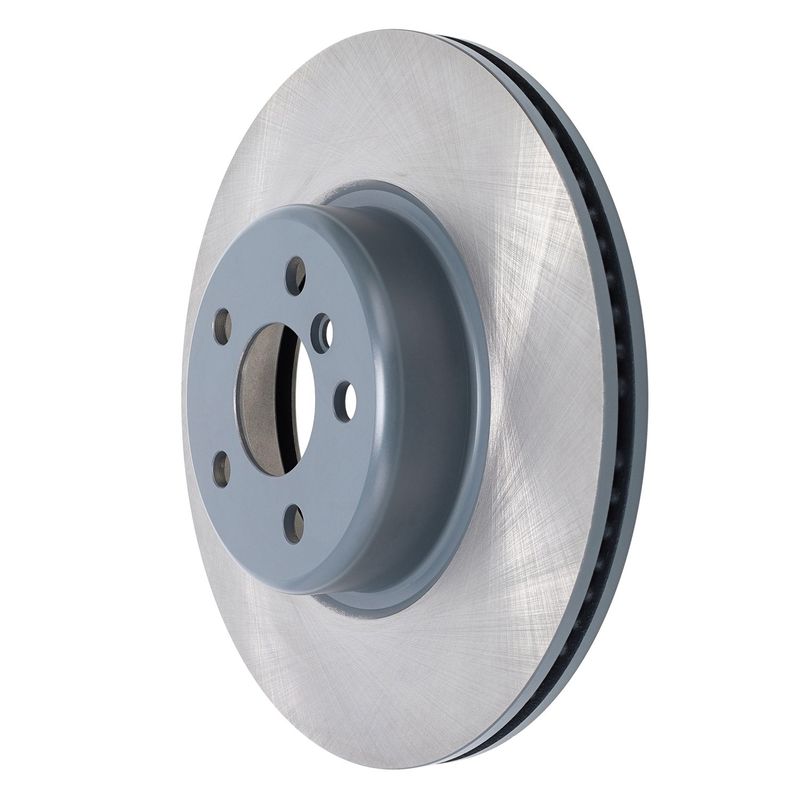

DuraGo BR902046-01 Disc Brake Rotor - Front
| Brand | DuraGo BR902046-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.88 |
| Discard Thickness | 22.4 |
| Nominal Thickness | 0.94 |
| Nominal Thickness | 24 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.61 |
| Overall Height | 66.3 |
| Outside Diameter | 12.99 |
| Outside Diameter | 330 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.64 |
| Center Hole Diameter | 67 |
| Mounting Bolt Hole Circle Diameter | 112 |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Mounting Bolt Hole Diameter | 0.65 |
| Mounting Bolt Hole Diameter | 16.6 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | BMW · 59 vehicles |
Corrosion-resistant coating. Helps protect the hat and edge for lasting defense against rust.
Vented design. Promotes efficient airflow for more consistent braking performance.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references 34106880072 and 34116860907 for the same application. See all 2.
DuraGo BR902046-01 Front Brake Rotor
The DuraGo BR902046-01 is a front disc brake rotor built for BMW applications that call for a 1-piece, full cast replacement. It combines cast iron construction with a rust-resistant coating on the hat and edge to help maintain appearance and protection in everyday driving conditions.
With a vented, non-directional brake surface and a titanium gray finish, this rotor is a practical choice for BMW 230i, 330i, X3, X4, Z4, and related front brake applications where fit, form, and function matter.
Key Features
- Cast iron, full cast construction for front disc brake service
- Vented rotor design for front axle braking applications
- Rust-resistant coating on the hat and edge
- Titanium gray finish for a cleaner look behind open wheel designs
- Non-directional brake surface for straightforward service replacement
- ISO-certified manufacturing for consistent fit and function
- Part number BR902046-01 for ordering and cross-reference use
Detailed Product Overview
DuraGo engineered the BR902046-01 using its experience in brake components and OE-style replacement standards. This rotor measures 330 mm outside diameter, 24 mm nominal thickness, and 22.4 mm discard thickness, with a 67 mm center hole diameter and 112 mm bolt circle diameter. It uses a 5-bolt mounting pattern and a conventional, full cast rotor construction.
This rotor is a direct-fit front brake rotor for select BMW models, including BMW 230i, BMW 330i, BMW 430i, BMW X3, BMW X4, and BMW Z4 applications listed below. If you are searching for a front brake rotor for BMW 330i xDrive, a front rotor for BMW X3, or a replacement rotor for BMW Z4 front brakes, BR902046-01 is built for those fitments.
This part cross-references Monroe Shocks & Struts (e.g., 34106880072, 34116860907) for the same application.
What This Rotor Helps Address
- Front brake pulsation caused by worn rotor surfaces
- Brake noise related to uneven rotor wear
- Corrosion on exposed rotor hat and edge areas
- Reduced braking consistency from rotor thickness loss
- Replacement needs for OE-style front brake service on select BMW models
Installation Notes and Fitment
Fits 2022-2026 BMW 230i, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2023-2026 BMW 230i xDrive, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2026 BMW Z4, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2025 BMW X4, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2023-2024 BMW 330e, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2023-2024 BMW 330e xDrive, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2023-2024 BMW 330i, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2023-2024 BMW 330i xDrive, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2024 BMW 430i, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2024 BMW 430i xDrive, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2024 BMW X3, front; 1-piece design, full cast replacement; except painted calipers; coated hat and edge for rust resistance.
Fits 2021-2022 BMW 330e, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2021-2022 BMW 330e xDrive, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2019-2022 BMW 330i, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2020-2022 BMW 330i xDrive, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2018-2020 BMW X3, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2019-2020 BMW X4, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2019-2020 BMW Z4, front; 1-piece design, full cast replacement; except blue calipers; coated hat and edge for rust resistance.
Fits 2019 BMW 330i xDrive, front; 1-piece design, full cast replacement; 330 mm rotor diameter; except blue calipers; coated hat and edge for rust resistance.
Before installation, confirm rotor diameter, center hole, bolt pattern, and caliper clearance against the vehicle’s brake package. This rotor is not listed with cross-drilling or slots, so it is a conventional replacement choice for standard front brake service.
Quality Assurance
DuraGo manufactures this rotor in an ISO-certified factory to support fit, form, and function requirements. The BR902046-01 is engineered from DuraGo’s brake component experience and includes a corrosion-resistant coating for added protection on the hat and edge.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2026 | BMW | 230i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2026 | BMW | 230i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2026 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2025 | BMW | 230i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2025 | BMW | 230i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2025 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2025 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 230i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 230i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 330e | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 330e xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 330i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 430i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | 430i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2024 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 230i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 230i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 330e | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 330e xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 330i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 430i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | 430i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2023 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 230i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 330e | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 330e xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 330i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 430i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | 430i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2022 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 330e | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 330e xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 330i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 430i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | 430i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2021 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Painted Calipers; Coated Hat and Edge for Rust Resistance |
| 2020 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2020 | BMW | 330i xDrive | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2020 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2020 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2020 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2019 | BMW | 330i | — | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2019 | BMW | 330i xDrive | — | Sedan | Front | 1-Piece Design, Full Cast Replacement; 330 mm Rotor Diameter; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2019 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2019 | BMW | X4 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2019 | BMW | Z4 | sDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
| 2018 | BMW | X3 | xDrive30i | — | Front | 1-Piece Design, Full Cast Replacement; except Blue Calipers; Coated Hat and Edge for Rust Resistance |
