Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

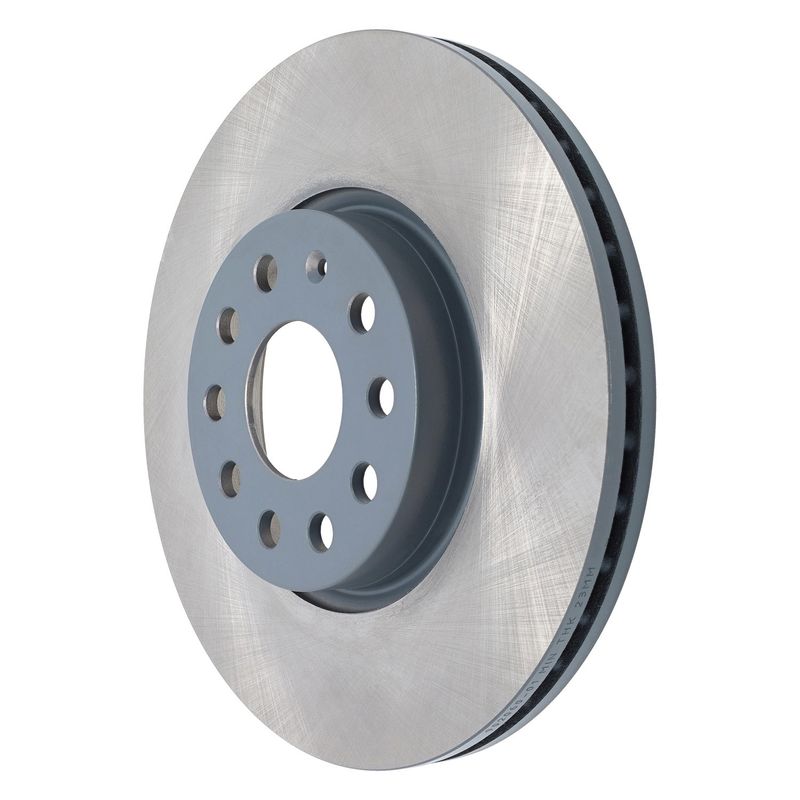

DuraGo BR902060-01 Disc Brake Rotor - Front
| Brand | DuraGo BR902060-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.91 |
| Discard Thickness | 23 |
| Nominal Thickness | 1.02 |
| Nominal Thickness | 26 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.96 |
| Overall Height | 49.8 |
| Outside Diameter | 12.05 |
| Outside Diameter | 306 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.56 |
| Center Hole Diameter | 65 |
| Mounting Bolt Hole Circle Diameter | 112 |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Mounting Bolt Hole Diameter | 0.6 |
| Mounting Bolt Hole Diameter | 15.3 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Audi · 8 vehicles |
Corrosion-resistant coating. Protects the rotor hat and edge for lasting defense against rust.
Vented design. Helps manage heat for consistent braking performance.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references 5WA615301 and 5WA615301B for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
DuraGo BR902060-01 Front Brake Rotor
The DuraGo Titanium Series BR902060-01 is a front disc brake rotor built from cast iron with a vented, full-cast construction. It features a corrosion-resistant coating on the hat and edge, along with a titanium gray finish that suits open-wheel vehicle designs.
Compatible with select 2022-2026 Audi A3 Quattro front brake applications and 2022-2024 Audi A3 front brake applications, this rotor is manufactured in an ISO certified factory to support fit, form, and function requirements.
Key Features
- Part number BR902060-01
- Front disc brake rotor for select Audi A3 and Audi A3 Quattro models
- Cast iron, full-cast construction
- Vented rotor design
- Rust resistant coating on the hat and edge
- Titanium gray finish
- Non-directional brake surface
- Outside diameter: 306 mm (12.05 in.)
- Nominal thickness: 26 mm (1.02 in.)
- Discard thickness: 23 mm (0.91 in.)
Detailed Description
DuraGo BR902060-01 is engineered as a front replacement rotor for Audi A3 and Audi A3 Quattro vehicles that use a 5-bolt, vented rotor setup with a 112 mm bolt circle and 65 mm center hole. The coated hat and edge help resist corrosion in exposed areas, while the non-directional surface supports consistent brake pad contact during service. This part cross-references OE-style part numbers 5WA615301 and 5WA615301B for the same application.
For shoppers searching for a front brake rotor for 2022-2026 Audi A3 Quattro or a coated front rotor for 2022-2024 Audi A3, BR902060-01 provides the specified dimensions and finish in one application-specific part. The rotor is produced in an ISO certified factory and reflects DuraGo’s long-term brake component experience.
What This Rotor Helps Address
- Brake pulsation caused by worn or out-of-spec front rotors
- Corrosion on exposed rotor surfaces and hat areas
- Reduced braking consistency from uneven rotor wear
- Noise or vibration related to rotor surface condition
- Service needs on Audi A3 and Audi A3 Quattro front brake systems
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, center bore, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake vibration. After installation, follow the vehicle manufacturer’s brake bedding procedure and confirm proper pad contact on the non-directional surface.
Fits 2022-2026 Audi A3 Quattro, front. Fits 2022-2024 Audi A3, front.
Quality Assurance
DuraGo manufactures this rotor in an ISO certified factory and builds it to meet fit, form, and function requirements. The Titanium Series coating is applied to the hat and edge for added corrosion resistance in exposed areas.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2026 | Audi | A3 Quattro | Front | Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | A3 Quattro | Front | Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | A3 | Front | Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | A3 Quattro | Front | Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | A3 | Front | Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | A3 Quattro | Front | Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | A3 | Front | Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | A3 Quattro | Front | Coated Hat and Edge for Rust Resistance |
| No rows match your filter. | ||||
