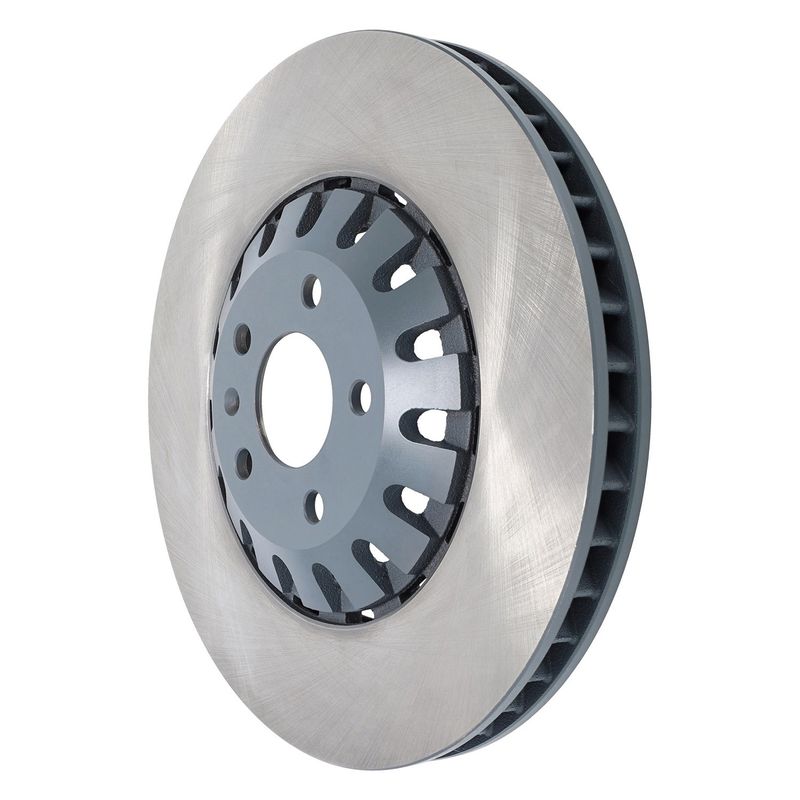

DuraGo BR902062-01 Disc Brake Rotor - Front
| Brand | DuraGo BR902062-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.34 |
| Discard Thickness | 34 |
| Nominal Thickness | 1.42 |
| Nominal Thickness | 36 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.29 |
| Overall Height | 58.1 |
| Outside Diameter | 14.72 |
| Outside Diameter | 374 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Mounting Bolt Hole Circle Diameter | 112 |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Mounting Bolt Hole Diameter | 0.61 |
| Mounting Bolt Hole Diameter | 15.5 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Audi · 40 vehicles |
Corrosion-resistant coating. Protects the hat and edge for lasting defense against rust.
Vented design. Helps air flow through the rotor for consistent braking performance.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references 4M0615301AD and 4M0615301AS for the same application. See all 2.
DuraGo Titanium Series Front Brake Rotor
The DuraGo Titanium Series brake rotor is a front disc brake rotor built for select Audi applications, including Audi A6 Quattro, Audi A7 Sportback, Audi A8 Quattro, Audi Q7, and Audi Q8. Part number BR902062-01 combines a full cast iron construction with a corrosion-resistant coating on the hat and edge for added protection in exposed wheel areas.
Key Features
- Part number BR902062-01
- Front disc brake rotor for select Audi models
- Cast iron, full cast construction
- Vented rotor design
- Rust resistant coating on the hat and edge
- Non-directional brake surface
- Outside diameter: 14.72 in. (374 mm)
- Nominal thickness: 1.42 in. (36 mm)
- Discard thickness: 1.34 in. (34 mm)
- Center hole diameter: 2.68 in. (68 mm)
- 5-bolt mounting pattern with 112 mm bolt circle
- No ABS tone ring included
Detailed Description
DuraGo BR902062-01 is engineered as a conventional, one-piece front rotor for vehicles that require a vented, full cast replacement. The titanium gray finish helps protect the rotor hat and edge from corrosion while also providing a clean appearance behind open wheel designs. Manufactured in an ISO certified factory, this rotor is built to meet fit, form, and function requirements for the listed Audi applications. This part cross-references 4M0615301AD and 4M0615301AS for the same application.
What This Rotor Helps Address
- Brake pulsation caused by rotor wear or thickness variation
- Corrosion on the rotor hat and outer edge
- Reduced braking performance from a worn front rotor
- Noise or vibration related to an aging brake rotor
- Replacement needs for a vented front rotor on select Audi vehicles
Installation Notes and Tips
Fits 2019-2026 Audi A8 Quattro, front. Fits 2017-2026 Audi Q7, front. Fits 2019-2026 Audi Q8, front. Fits 2019-2025 Audi A6 Quattro, front. Fits 2019-2025 Audi A7 Sportback, front. Verify rotor dimensions, hub fitment, and brake system specifications before installation. Clean the rotor friction surfaces before service and inspect pads, calipers, and wheel bearings for wear that could affect braking performance. Part number BR902062-01 is a direct-fit style replacement for the listed front applications.
Quality Assurance
DuraGo manufactures this rotor in an ISO certified facility and applies a corrosion-resistant coating to help maintain appearance and protection in service. The design reflects DuraGo’s experience in brake component engineering for professional repair use.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2026 | Audi | A8 Quattro | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2026 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2026 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | A8 Quattro | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2025 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | A8 Quattro | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2024 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | A8 Quattro | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2023 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | A8 Quattro | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2022 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2021 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2021 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2021 | Audi | A8 Quattro | L | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2021 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2021 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2020 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2020 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2020 | Audi | A8 Quattro | L | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2020 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2020 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2019 | Audi | A6 Quattro | — | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2019 | Audi | A7 Sportback | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2019 | Audi | A8 Quattro | L | 3.0L | V6 | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2019 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2019 | Audi | Q8 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2018 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
| 2017 | Audi | Q7 | — | — | — | Front | 1-Piece Design, Full Cast Replacement; Coated Hat and Edge for Rust Resistance |
