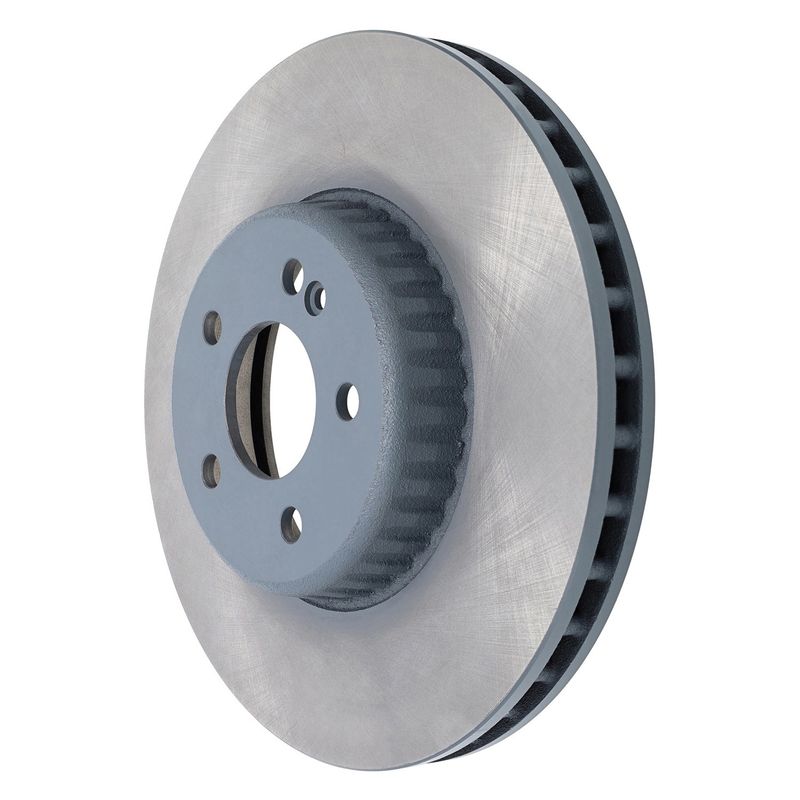

DuraGo BR902064 Disc Brake Rotor - Front
| Brand | DuraGo BR902064 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.16 |
| Discard Thickness | 29.4 |
| Nominal Thickness | 1.26 |
| Nominal Thickness | 32 |
| Construction | Full cast |
| Rust Resistant Coating | No |
| Overall Height | 2.64 |
| Overall Height | 67 |
| Outside Diameter | 12.99 |
| Outside Diameter | 330 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.72 |
| Center Hole Diameter | 69 |
| Mounting Bolt Hole Circle Diameter | 112 |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Mounting Bolt Hole Diameter | 0.6 |
| Mounting Bolt Hole Diameter | 15.3 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Mercedes-Benz · 11 vehicles |
Vented design. Helps move air through the rotor for more consistent braking performance.
Cast iron construction. Full-cast rotor delivers dependable strength and heat handling.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references Genuine 0004212712 for the same application. See all 1.
DuraGo BR902064 Front Brake Rotor
The DuraGo BR902064 is a front disc brake rotor built for select Mercedes-Benz applications that call for a 330 mm vented, full cast replacement. It is engineered in cast iron with a non-directional brake surface to support consistent pad contact and dependable braking performance.
Compatible with 2022-2023 Mercedes-Benz C300 front and 2015-2021 Mercedes-Benz C300 front, as well as 2018-2019 Mercedes-Benz E300 front in listed configurations. This rotor is a direct-fit style replacement for drivers searching for a Mercedes-Benz C300 front brake rotor or Mercedes-Benz E300 front rotor by part number BR902064.
Key Features
- Part number: BR902064
- Front disc brake rotor for select Mercedes-Benz models
- Cast iron, full cast construction
- Vented rotor design for front axle use
- 330 mm outside diameter
- Nominal thickness: 32 mm; discard thickness: 29.4 mm
- 5-bolt mounting pattern with 112 mm bolt circle
- Non-directional brake surface for even pad bedding
- Conventional, one-piece rotor design
Detailed Description
DuraGo manufactures aftermarket brake components through ISO-certified factories with attention to fit, form, and function. The BR902064 front rotor uses a full cast, cast iron construction and a vented profile to match the braking requirements of select Mercedes-Benz C300 and E300 front applications. With a 330 mm outside diameter, 69 mm center hole diameter, and 5 mounting bolt holes on a 112 mm bolt circle, this rotor is built around the listed OE-style dimensions for proper alignment and braking contact. This part cross-references Genuine 0004212712 for the same application.
Common Brake Issues This Rotor Can Address
- Brake pulsation from a worn or uneven front rotor surface
- Reduced braking consistency caused by rotor wear beyond discard thickness
- Noise related to rotor surface irregularity or uneven pad contact
- Front-end braking vibration during stops
- Loss of braking smoothness on Mercedes-Benz C300 and E300 front applications
Installation Notes and Tips
- Verify vehicle trim and package details before ordering; this rotor excludes AMG Package C300 applications and excludes Sport Package E300 applications.
- Confirm rotor diameter, center hole, and bolt pattern against the existing part before installation.
- Inspect brake pads, caliper hardware, and hub condition during rotor replacement.
- Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation.
- Follow the vehicle manufacturer’s torque specifications during wheel installation.
Quality Assurance
DuraGo brake rotors are produced in ISO-certified factories and built to meet fit, form, and function requirements for the listed applications. The BR902064 reflects DuraGo’s long-standing aftermarket brake program and cataloged application coverage for Mercedes-Benz front brake service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; 330 mm Rotor Diameter; except AMG Package |
| 2022 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; 330 mm Rotor Diameter; except AMG Package |
| 2021 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2020 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2019 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2019 | Mercedes-Benz | E300 | Front | 1-Piece Design, Full Cast Replacement; except Sport Package |
| 2018 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2018 | Mercedes-Benz | E300 | Front | 1-Piece Design, Full Cast Replacement; except Sport Package |
| 2017 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2016 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
| 2015 | Mercedes-Benz | C300 | Front | 1-Piece Design, Full Cast Replacement; except AMG Package |
