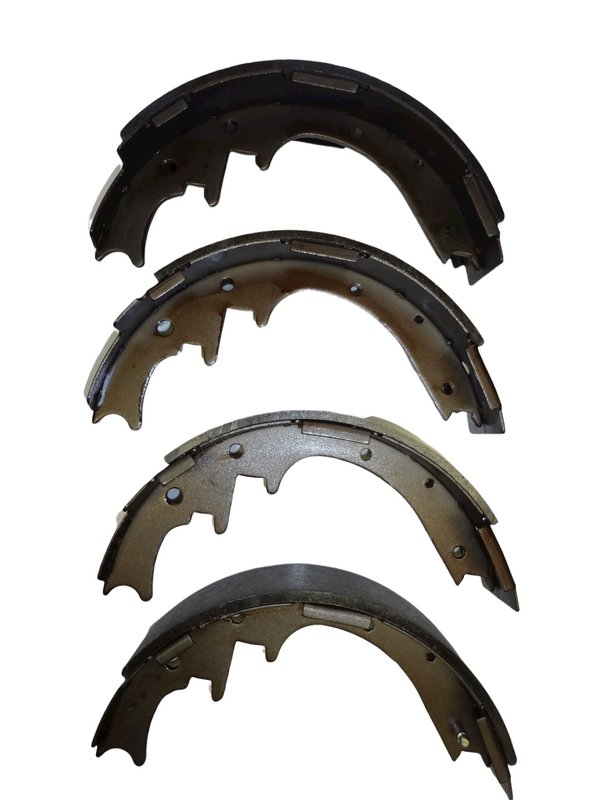

DVJX 12-705 Drum Brake Shoe - Rear

Rear Drum Brake Shoe 12-705

This bonded drum brake shoe is built for rear drum brake service on select Ford Ranger and Mazda truck applications. It is a fitment-specific replacement for vehicles using 10-inch rear drums and related rear brake configurations.

Key Features

• Bonded friction material for rear drum brake applications.
• Fitment coverage for select Ford Ranger and Mazda B-Series models.
• Application-specific design for vehicles with 10-inch rear drums.
• Part number 12-705 for catalog and service identification.

Detailed Description

Part number 12-705 is a rear drum brake shoe for compatible Ford Ranger and Mazda B2300, B2500, B3000, and B4000 applications. The bonded construction is listed across the fitment data and is used in rear drum brake systems that require the correct shoe profile and friction surface for proper service replacement. This part number 12-705 is relevant for a wide range of model years, including Ford Ranger rear brake applications from 1995 through 2009 and Mazda B-Series rear brake applications from 1995 through 2010, depending on drum size and brake configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Uses

• Replacing worn rear drum brake shoes.
• Restoring braking performance affected by lining wear.
• Addressing brake noise caused by aged friction material.
• Correcting reduced rear brake response in drum-equipped vehicles.
• Servicing rear drum brake systems with bonded shoe construction.

Installation Notes

Verify rear drum size, brake configuration, and model-year fitment before installation. Match the application notes in the fitment table, including drum diameter and ABS or axle-related details where listed. Professional installation is recommended for proper brake adjustment and system inspection.

Quality Assurance

Bonded construction is identified in the product line and fitment data for this brake shoe application. Confirm all vehicle-specific brake details before ordering to ensure correct service replacement.
