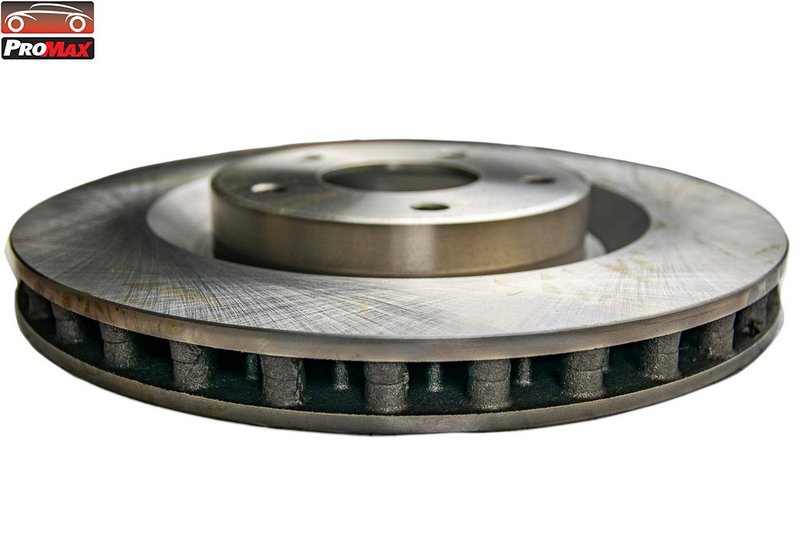

DVJX 14-55101 Disc Brake Rotor - Front
| Brand | DVJX 14-55101 |
|---|---|
| Position | Front |
| Product line | ProMax |
| Fits | Cadillac and Chevrolet · 14 vehicles |
OE-style fitment. Cataloged for front brake service with application-specific brake code and diameter notes.
325 mm diameter. Listed in fitment notes for accurate brake system matching.
ProMax line. Product line identification for easier catalog and replacement matching.
Overview
The ProMax 14-55101 disc brake rotor is a front brake replacement for select Chevrolet Corvette and Cadillac XLR applications. It is listed with a 325 mm outer diameter and fitment-specific notes that help match the correct brake setup.
Key Features
- Disc brake rotor for front brake service
- 325 mm outer diameter listed in fitment notes
- Compatible with GM Brake Code JL9 on select Corvette applications
- ProMax product line identification for catalog matching
- Fits select Chevrolet Corvette and Cadillac XLR models
Detailed Description
Use the ProMax 14-55101 when replacing a front disc brake rotor on compatible Chevrolet Corvette and Cadillac XLR vehicles. The fitment data identifies 2004-2009 Cadillac XLR front applications and 2006-2008 Chevrolet Corvette front applications with a 325 mm outer diameter, while 2009-2013 Chevrolet Corvette front fitment also includes GM Brake Code JL9. This part number, 14-55101, should be matched to the vehicle’s brake code and rotor size before ordering.
ProMax is the product line name, and this rotor is cataloged for direct brake service where the listed dimensions and notes align with the vehicle’s original brake configuration. For shoppers searching for a Chevrolet Corvette front brake rotor or a Cadillac XLR front disc brake rotor, 14-55101 provides a fitment-focused replacement reference.
Common Uses
- Replacing a worn front brake rotor
- Correcting brake pulsation from rotor wear or thickness variation
- Restoring braking surface condition after scoring or heat damage
- Matching a rotor to the listed brake code and diameter requirements
Installation Notes
Verify the vehicle’s brake code, rotor diameter, and front application before installation. Compare the existing rotor and brake system details to the fitment notes for 14-55101 to confirm the correct match for your Chevrolet Corvette or Cadillac XLR.
Quality Assurance
ProMax catalog identification helps ensure the correct part is selected for the listed application. Confirm all fitment details against the vehicle before installation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Corvette | Base | — | — | Front | GM Brake Code JL9; 325mm Outer Diameter; ProMax |
| 2012 | Chevrolet | Corvette | Base | — | — | Front | GM Brake Code JL9; 325mm Outer Diameter; ProMax |
| 2011 | Chevrolet | Corvette | Base | — | — | Front | GM Brake Code JL9; 325mm Outer Diameter; ProMax |
| 2010 | Chevrolet | Corvette | Base | — | — | Front | GM Brake Code JL9; 325mm Outer Diameter; ProMax |
| 2009 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2009 | Chevrolet | Corvette | Base | — | — | Front | GM Brake Code JL9; 325mm Outer Diameter; ProMax |
| 2008 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2008 | Chevrolet | Corvette | Z06 | 7.0L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2007 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2007 | Chevrolet | Corvette | Z06 | 7.0L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2006 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2006 | Chevrolet | Corvette | Z06 | 7.0L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2005 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
| 2004 | Cadillac | XLR | — | 4.6L | V8 | Front | 325mm Outer Diameter; ProMax |
