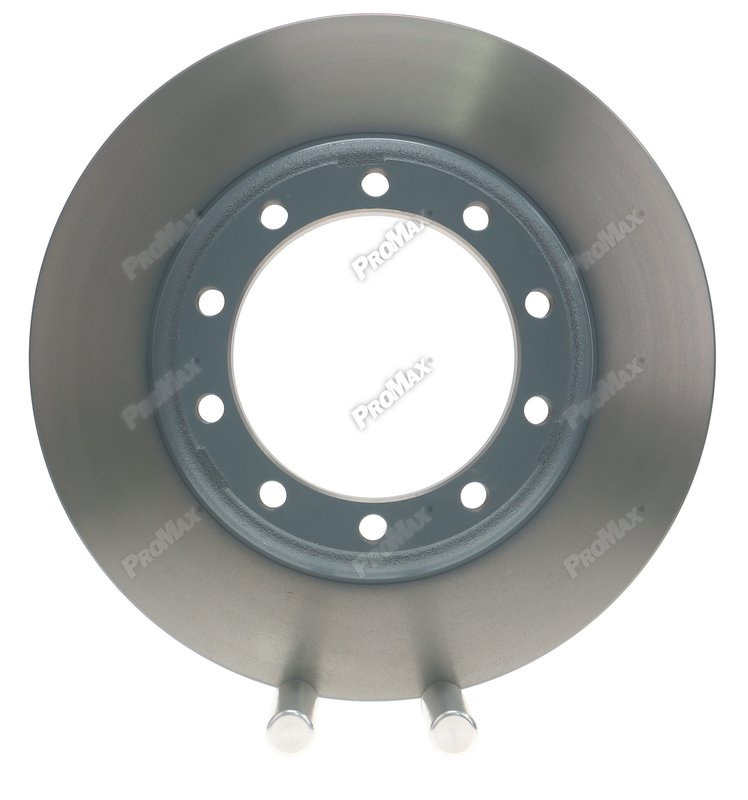

DVJX 14-55104 Disc Brake Rotor - Front or Rear

Overview

ProMax brake rotor Part Number 14-55104 is a fitment-specific replacement for heavy-duty commercial braking systems. It is listed across front and rear applications for multiple medium-duty trucks and buses, including Hino, Isuzu, Chevrolet, GMC, Blue Bird, and Workhorse platforms.

Compatible With 1989-2019 commercial vehicle applications, this rotor is matched to specific hub and caliper configurations noted in the fitment data. Use the part number 14-55104 to verify the correct rotor for your brake setup before ordering.

Key Features

• Disc brake rotor for heavy-duty braking applications
• ProMax product line replacement part
• Fitment includes front and rear positions depending on vehicle application
• Application notes reference hat-shaped rotor designs, 10-hole patterns, and specific axle or caliper configurations
• Cross-reference part numbers are available for select same-application replacements

Fitment Details

• Fits 2005-2019 Hino 268, front, 391mm outer diameter; ProMax.
• Fits 2004-2018 Blue Bird All American FE, front, 70mm, 4 piston Dayton calipers; ProMax.
• Fits 2004-2018 Blue Bird Vision School Bus, front, 391mm outer diameter; ProMax.
• Fits 2011-2017 Hino 258, front, 391mm outer diameter; ProMax.
• Fits 2005-2014 Hino 238, front, 391mm outer diameter; ProMax.
• Fits 2008-2014 Hino 258ALP, front, 391mm outer diameter; ProMax.
• Fits 2006-2014 Hino 258LP, front, 391mm outer diameter; ProMax.
• Fits 2008-2014 Hino 268A, front, 391mm outer diameter; ProMax.
• Fits 2004-2011 Isuzu FTR, rear, 10 hole hat shaped, 19000lb rear axle; ProMax.
• Fits 2003-2011 Isuzu FVR, rear, 10 hole hat shaped; ProMax.
• Fits 2004-2011 Isuzu FXR, rear, 10 hole hat shaped; ProMax.
• Fits 2007-2011 Workhorse W62, front, 10 hole, 19500, 23000, 23500lb GVW, hat shaped; ProMax.
• Fits 2003-2009 Chevrolet C4500 Kodiak, front, 10 hole; ProMax.
• Fits 2003-2009 Chevrolet C5500 Kodiak, front, 10 hole; ProMax.
• Fits 2003-2009 Chevrolet C6500 Kodiak, rear, 10 hole hat shaped rotor, except 21000lb rear axle; ProMax.
• Fits 2003-2009 Chevrolet C7500 Kodiak, front, 10 hole hat shaped, except 21000lb rear axle; ProMax.
• Fits 2005-2009 Chevrolet T6500, rear, 13000lb, 15000lb, 19000lb rear axle, 10 hole, hat shaped; ProMax.
• Fits 2004-2009 Chevrolet T7500, rear, 13000lb, 15000lb, 19000lb rear axle, 10 hole, hat shaped; ProMax.
• Fits 2003-2009 GMC C4500 Topkick, front, 391mm outer diameter, standard painted brake rotor.
• Fits 2003-2009 GMC C5500 Topkick, front, 391mm outer diameter, standard painted brake rotor.
• Fits 2007-2009 GMC T6500, rear, 10 hole hat shaped rotor; ProMax.
• Fits 2004-2009 GMC T7500, front, without driveline mounted parking brake, 19000 lbs. rear axle; ProMax.
• Fits 2007-2009 Workhorse R26, front, 26000lb GVW; ProMax.
• Fits 2004-2009 Workhorse W24, front, 10 hole, hat shaped, 24000lb, 25500lb GVW; ProMax.
• Fits 2005-2009 Workhorse W25, front, 10 hole, hat shaped, 24000lb, 25500lb GVW; ProMax.
• Fits 2005-2008 Isuzu HTR, rear, hat shaped; ProMax.
• Fits 2005-2008 Isuzu HVR, rear, hat shaped; ProMax.
• Fits 2004-2006 GMC T6500, front, 391mm outer diameter; ProMax.
• Fits 1989-2004 Blue Bird TC2000, front, 4 piston caliper, hat shaped disc; ProMax.
• Fits 2004 Chevrolet T6500, front, 10 hole, hat shaped; ProMax.
• Fits 2003 Isuzu FTR, rear, 10 hole, 19000lb rear axle, disc brakes, Fr 4/03; ProMax.

Common Uses

• Replacing a worn rotor with uneven braking surface wear
• Correcting brake pulsation or vibration during stops
• Restoring proper braking performance after rotor scoring or heat damage
• Servicing heavy-duty brake systems with the correct hub and caliper match

Installation Notes

Verify the vehicle’s axle, caliper, hub, and rotor configuration against the fitment notes before installation. This part number 14-55104 is application-specific, so matching the listed diameter, hole pattern, and hat shape is important for proper fitment on Hino, Isuzu, Chevrolet, GMC, Blue Bird, and Workhorse models.

Quality Assurance

ProMax is the listed product line for this rotor, and the fitment data identifies the exact commercial applications it serves. Cross-reference part numbers include Monroe Shocks & Struts 172286 and 182286 for the same application.
