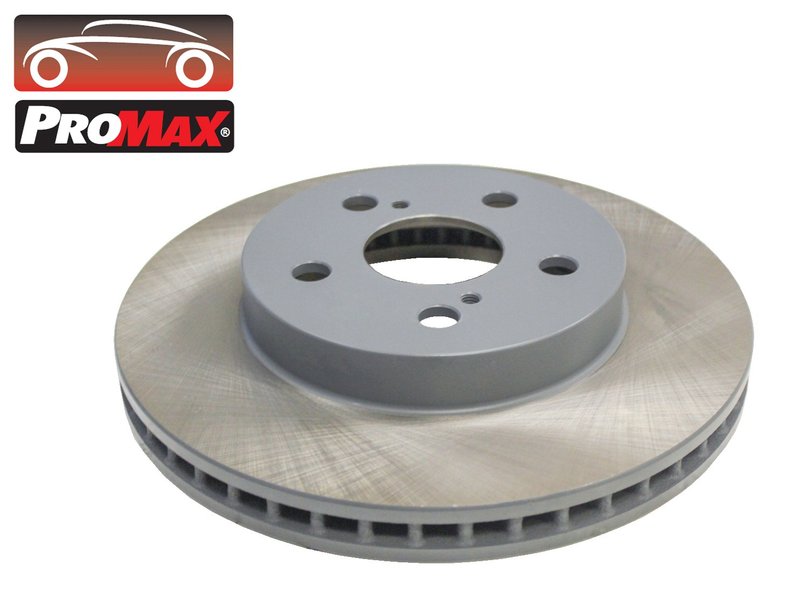

DVJX 14-610030 Disc Brake Rotor - Front
| Brand | DVJX 14-610030 |
|---|---|
| Position | Front |
| Product line | ProMax |
| Fits | Toyota · 18 vehicles |
Front brake rotor. Cataloged for select Toyota hybrid brake service applications.
255mm outer diameter. Matches the listed rotor size for the specified applications.
ProMax line. Easy catalog identification with part number 14-610030.
ProMax Front Brake Rotor
The ProMax 14-610030 is a front disc brake rotor for select Toyota hybrid applications. It is built for vehicles that use a 255mm outer diameter rotor and is listed for multiple Prius and Corolla fitments.
Key Features
- Front disc brake rotor for brake service and replacement
- 255mm outer diameter specification for listed applications
- Fits select Toyota hybrid models with front rotor fitment
- ProMax product line identification for easy catalog matching
- Part number 14-610030 for accurate ordering and lookup
Detailed Description
ProMax 14-610030 is a disc brake rotor cataloged for front use on select Toyota Corolla, Toyota Prius, Toyota Prius AWD-e, and Toyota Prius Prime applications. The fitment data shows a 255mm outer diameter and front position coverage across the listed hybrid vehicles, making this rotor a direct match for buyers searching for a Toyota Corolla front brake rotor, Toyota Prius front brake rotor, or Toyota Prius Prime front brake rotor. Use part number 14-610030 to confirm the correct listing before purchase.
What It Is Used For
- Replacing a worn or scored front brake rotor
- Restoring braking surface condition after heat checking or uneven wear
- Addressing brake pulsation caused by rotor surface variation
- Matching the specified 255mm rotor size for listed Toyota hybrid applications
Installation Notes and Tips
Verify the vehicle’s front rotor specification, including outer diameter and application details, before installation. Confirm the fitment notes for hybrid configuration and use part number 14-610030 to match the correct rotor to the vehicle. Professional brake service procedures should be followed during installation.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | Hybrid; 255mm Outer Diameter; ProMax |
| 2022 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | Hybrid; 255mm Outer Diameter; ProMax |
| 2022 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2022 | Toyota | Prius AWD-e | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2021 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | Hybrid; 255mm Outer Diameter; ProMax |
| 2021 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2021 | Toyota | Prius AWD-e | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2020 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | Hybrid; 255mm Outer Diameter; ProMax |
| 2020 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2020 | Toyota | Prius AWD-e | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2019 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2019 | Toyota | Prius AWD-e | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2019 | Toyota | Prius Prime | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2018 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2018 | Toyota | Prius Prime | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2017 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2017 | Toyota | Prius Prime | — | — | — | Front | 255mm Outer Diameter; ProMax |
| 2016 | Toyota | Prius | — | — | — | Front | 255mm Outer Diameter; ProMax |
