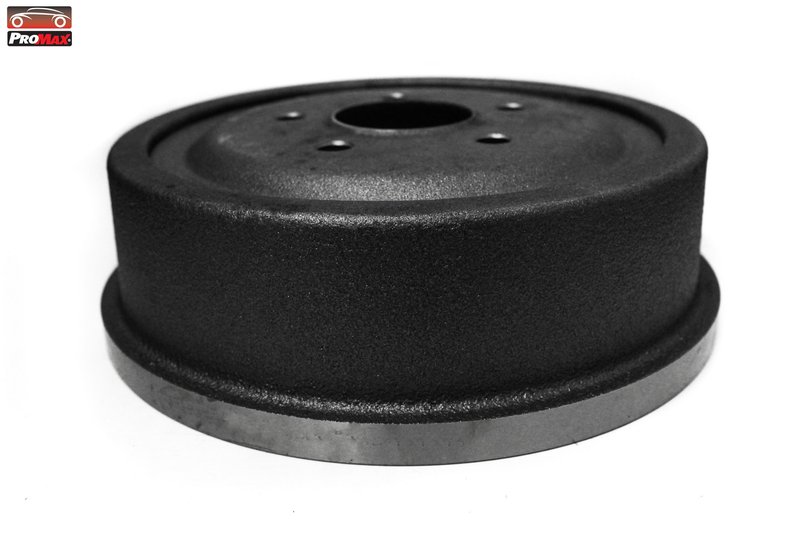

DVJX 16-8946 Brake Drum - Rear

Brake Drum Overview

The ProMax 16-8946 brake drum is a rear brake replacement for select Ford Ranger and Mazda B-Series applications. It is listed for rear fitment on vehicles with 10-inch rear drum setups, with notes that narrow the application by axle and shoe configuration.

Key Features

• Rear brake drum for select Ford Ranger and Mazda B2300, B3000, and B4000 applications.
• Application notes identify 10-inch rear drum or 10-inch rear shoe configurations where required.
• ProMax 16-8946 is cataloged for direct fitment on the listed rear brake applications.
• Fits 1983-1988 Ford Ranger, rear, with 10-inch rear drums.
• Fits 1989-1995 Ford Ranger, rear, 10-inch rear shoes.
• Fits 1996-1997 Ford Ranger, rear, except 3.45 ratio, 10-inch rear shoes.

Detailed Description

ProMax 16-8946 is a brake drum built for rear brake service on compatible Ford Ranger and Mazda B-Series trucks. The fitment data shows coverage for 1983-1997 Ford Ranger and 1995-1997 Mazda B2300, B3000, and B4000 rear applications, with notes that specify 10-inch drum or shoe requirements. Use the part number 16-8946 to verify the correct rear brake drum for your vehicle before ordering.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Is Used For

• Replacing a worn rear brake drum on the listed Ford Ranger and Mazda truck applications.
• Restoring proper drum-to-shoe contact when the original drum surface is worn or out of spec.
• Addressing brake pulsation, scoring, or uneven braking caused by drum wear.
• Supporting rear brake service on vehicles with 10-inch rear drum configurations.

Installation Notes

Confirm rear axle configuration, drum size, and shoe specification against the fitment notes before installation. The 1996-1997 Ford Ranger listing excludes 3.45 ratio applications, so verify that detail before using part number 16-8946. Always inspect related brake components and measure the existing drum before replacement.

Quality Assurance

ProMax product line coverage is cataloged for the listed applications. Verify fitment by year, make, model, position, and notes to ensure the correct rear brake drum selection.
