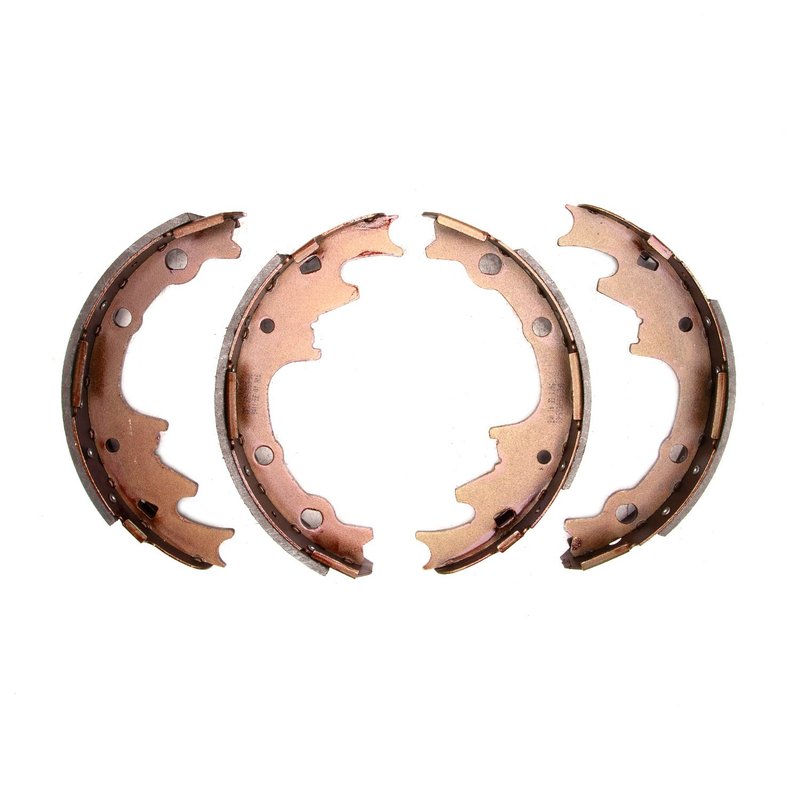

Dynamic Friction 1903-0569-00 Drum Brake Shoe Set - Rear

Rear Drum Brake Shoes for Ford and Mazda

Dynamic Friction DFC Premium Riveted Shoes, part number 1903-0569-00, are rear drum brake shoes for a wide range of Ford and Mazda applications. This drum brake shoe set is built for vehicles using 9 inch rear drums and other listed rear drum configurations, including select Ford Ranger, Ford Mustang, and Mazda B-Series models.

Key Features

• DFC Premium Riveted Shoes product line from Dynamic Friction
• Rear drum brake shoe set for drum brake service
• Fits select Ford Ranger rear drum brake applications
• Fits select Ford Mustang rear drum brake applications
• Fits select Mazda B2300, B3000, and B4000 rear applications
• Part number 1903-0569-00 for accurate ordering and lookup

Fitment Details

• Fits 1983-1985 Ford Ranger, rear, 9 inch rear drums; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1988-1994 Ford Ranger, rear, 9 inch rear drums; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1990-1991 Ford Ranger, rear, 9 inch rear drums; Dana 28-TTB front axle, 2.2 inch tall rotors; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1990-1991 Ford Ranger, rear, 9 inch rear drums; Dana 35-TTB front axle, 2.5 inch tall rotors; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1979, 1980-1981, 1982-1993 Ford Mustang, rear; notes vary by production date and 9 inch rear drum application; required hardware: 370-54015; required sensors on listed years: 372-54001, 372-54002.
• Fits 1994 Mazda B2300, rear, 9 inch rear drums; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1994 Mazda B3000, rear, 9 inch rear drums; required hardware: 370-54015; required sensors: 372-54001, 372-54002.
• Fits 1994 Mazda B4000, rear, 9 inch rear drums; required hardware: 370-54015; required sensors: 372-54001, 372-54002.

What This Part Helps Address

• Rear brake shoe wear that reduces braking performance
• Brake noise caused by worn or uneven drum shoes
• Poor rear brake response during stop-and-go driving
• Service needs on Ford Ranger rear drum brake systems
• Rear brake maintenance on Ford Mustang and Mazda B-Series applications

Installation Notes and Tips

Verify rear drum size, production date, axle configuration, and sensor requirements before ordering. Several listed applications require specific hardware 370-54015 and sensors 372-54001 and 372-54002, so match the vehicle notes exactly to the brake system on the car or truck. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

DFC Premium Riveted Shoes are part of Dynamic Friction’s premium brake shoe line, built for direct-fit rear drum brake service on the listed Ford and Mazda applications. Part number 1903-0569-00 helps confirm the correct brake shoe set for your vehicle.
