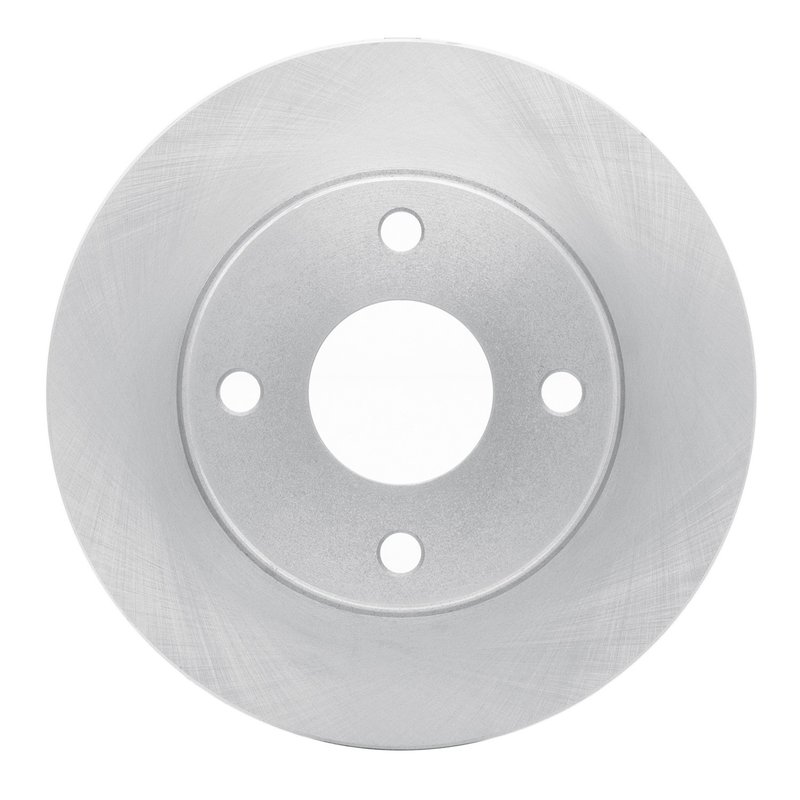

Dynamic Friction 600-47001 Disc Brake Rotor - Front

Brake Rotor Overview

The Dynamic Friction 600-47001 is a solid disc brake rotor built for direct replacement applications. It is engineered with a 227 mm outside diameter, 42 mm height, and 4-bolt pattern for the specified front brake fitments.

Compatible With 1985-1989 Chevrolet Spectrum, front; 1985-1989 Isuzu I-Mark, front; and 1989 Geo Spectrum, front without F41 Package. The DFC Brake Rotor line focuses on application-specific rotor dimensions for consistent fitment.

Key Features

• Solid rotor design for straightforward brake service.
• 227 mm outside diameter with 42 mm overall height.
• 4-bolt configuration with 12.5 mm bolt holes.
• 11 mm nominal thickness and 9.6 mm discard thickness.
• 57 mm inside diameter for the listed applications.

Detailed Description

Part number 600-47001 is a Dynamic Friction disc brake rotor for front brake applications on the Chevrolet Spectrum, Geo Spectrum, and Isuzu I-Mark. The rotor uses a solid construction and dimensions that match the listed vehicles, including the 227 mm outside diameter, 42 mm height, and 4-bolt layout. If you are replacing a worn front rotor on these compact platforms, 600-47001 provides the dimensional match needed for proper brake service. This part number, 600-47001, is also identified within the DFC Brake Rotor line for application-specific coverage.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation.
• Reduced braking performance from a worn front rotor.
• Rotor replacement needs during brake pad service.
• Fitment issues when the original rotor dimensions no longer match.

Installation Notes

Verify rotor dimensions, bolt pattern, and vehicle notes before installation. This part fits 1985-1989 Chevrolet Spectrum, front; 1985-1989 Isuzu I-Mark, front; and 1989 Geo Spectrum, front without F41 Package. Confirm the front application and the Geo Spectrum note before ordering or installing.

Quality Assurance

Dynamic Friction supplies the DFC Brake Rotor line as an application-focused brake component range. The 600-47001 is built to the listed dimensional specifications for the stated fitments.
