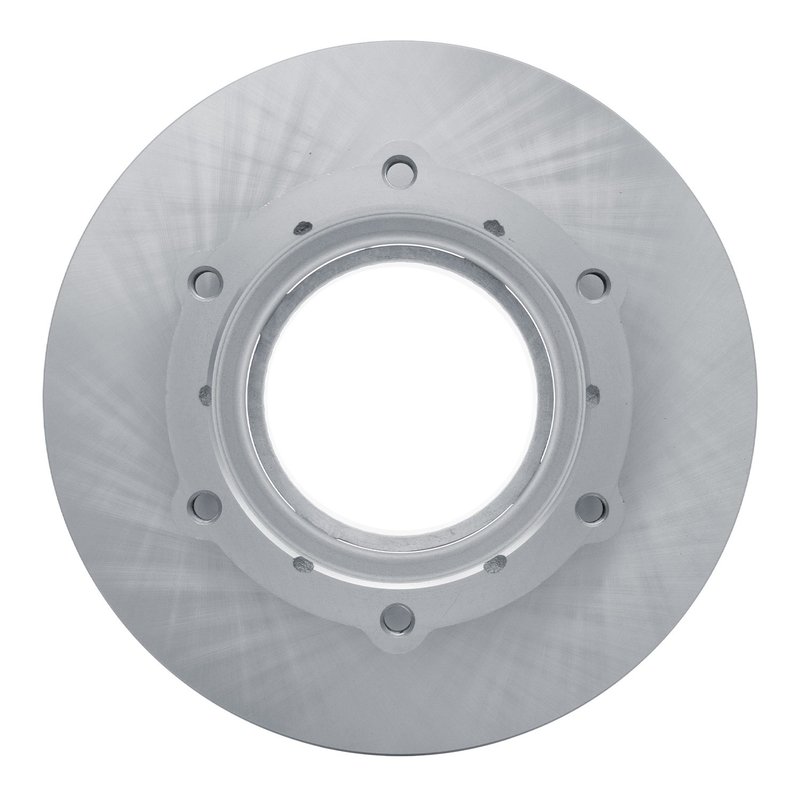

Dynamic Friction 600-76148 Disc Brake Rotor - Rear

Brake Rotor Overview

The Dynamic Friction DFC Brake Rotor, part number 600-76148, is a vented disc brake rotor built for rear brake service. It is engineered with a 348.5 mm outside diameter, 42 mm nominal thickness, and a 106 mm height for the specified Hino applications.

Compatible with Hino 195, Hino 195h, Hino 195DC, and Hino 195h DC rear brake applications, this rotor uses a 6-bolt pattern with 14 x 1.50 bolt holes and a 166 mm inside diameter. The DFC Brake Rotor line focuses on application-specific brake components for direct replacement service, and part number 600-76148 is listed for multiple Hino medium-duty configurations.

Key Features

• Vented rotor design for rear brake applications
• 348.5 mm outside diameter for the listed fitments
• 42 mm nominal thickness and 106 mm height
• 6-bolt pattern with 14 x 1.50 bolt holes
• 166 mm inside diameter for application-specific fitment

Detailed Description

Dynamic Friction 600-76148 is a disc brake rotor intended for rear axle brake service on select Hino medium-duty trucks. The vented construction supports heat management during repeated braking, while the listed dimensions help ensure proper rotor match-up for the specified Hino 195-series applications. If you are replacing a worn rear brake rotor on a Hino 195 or related model, this DFC Brake Rotor provides the dimensional and bolt-pattern details needed for a direct service replacement.

What It Is Used For

• Replacing a worn or scored rear brake rotor
• Addressing brake pulsation caused by rotor wear or thickness variation
• Restoring proper braking surface contact
• Correcting rotor fitment issues tied to bolt pattern or dimensions

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub measurements before installation. Confirm rear application and compare the existing rotor to part number 600-76148 to match the listed Hino fitment. Clean the hub mounting surface and inspect related brake components during service.

Quality Assurance

Dynamic Friction supplies brake components for application-specific replacement use, and the DFC Brake Rotor line is built around fitment-focused brake service parts.
