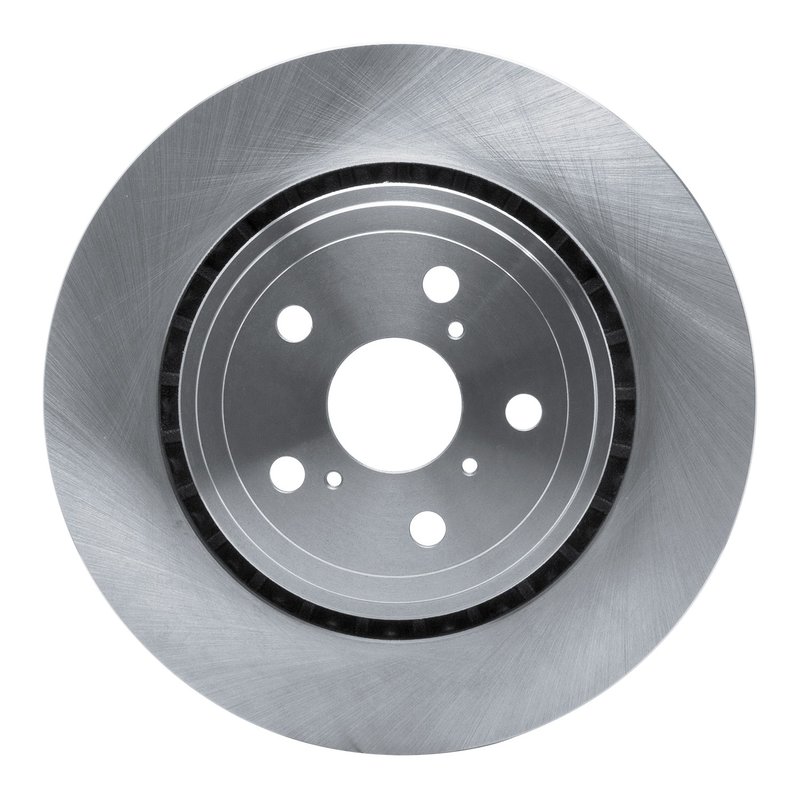

Dynamic Friction 600-76172 Disc Brake Rotor - Front

Overview

The Dynamic Friction DFC Brake Rotor 600-76172 is a vented disc brake rotor built for direct front brake service on select Toyota applications. It uses a smooth, plain surface and a non-directional braking face to support consistent pad contact and straightforward service work.

Compatible With 2024-2026 Toyota Grand Highlander, front. This rotor is identified by part number 600-76172 and is engineered around the listed dimensions for proper brake system fitment.

Key Features

• Vented disc brake rotor construction for heat management during braking.
• Plain, smooth surface finish for a clean contact area.
• Non-directional brake surface for simplified installation orientation.
• 340 mm outside diameter with 49.7 mm height.
• 5-lug pattern with 120 mm bolt circle diameter and 62 mm center hole diameter.

Detailed Description

The DFC Brake Rotor 600-76172 is a front disc brake rotor for the 2024-2026 Toyota Grand Highlander. Its vented design, 35 mm discard thickness, and 38 mm nominal thickness provide the core dimensions needed for brake service, while the plain finish and smooth surface support even pad contact. The 5-bolt, 5-lug layout and 120 mm bolt circle diameter match the listed fitment requirements for this Toyota Grand Highlander application.

Dynamic Friction positions the DFC Brake Rotor line as a practical brake service option focused on fit and dimensional accuracy. For buyers searching for a Toyota Grand Highlander front brake rotor or a 600-76172 replacement rotor, this part provides the specified rotor geometry and surface style for the listed application.

What It Is Used For

• Replacing a worn front brake rotor on the listed Toyota Grand Highlander application.
• Addressing brake pulsation caused by rotor wear or surface irregularity.
• Restoring proper pad-to-rotor contact when the braking surface is no longer smooth.
• Servicing a rotor that no longer meets discard thickness requirements.

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center hole diameter before installation. Confirm the vehicle is a 2024-2026 Toyota Grand Highlander, front application and compare the existing rotor against part number 600-76172. Clean the hub mounting surface before fitting the new rotor to help maintain proper seating and brake runout control.

Quality Assurance

Dynamic Friction supplies this rotor under the DFC Brake Rotor line with the listed OE-style dimensions and surface specifications for the stated application. Part number 600-76172 is built to match the fitment and measurement data provided for the Toyota Grand Highlander front brake service use case.
