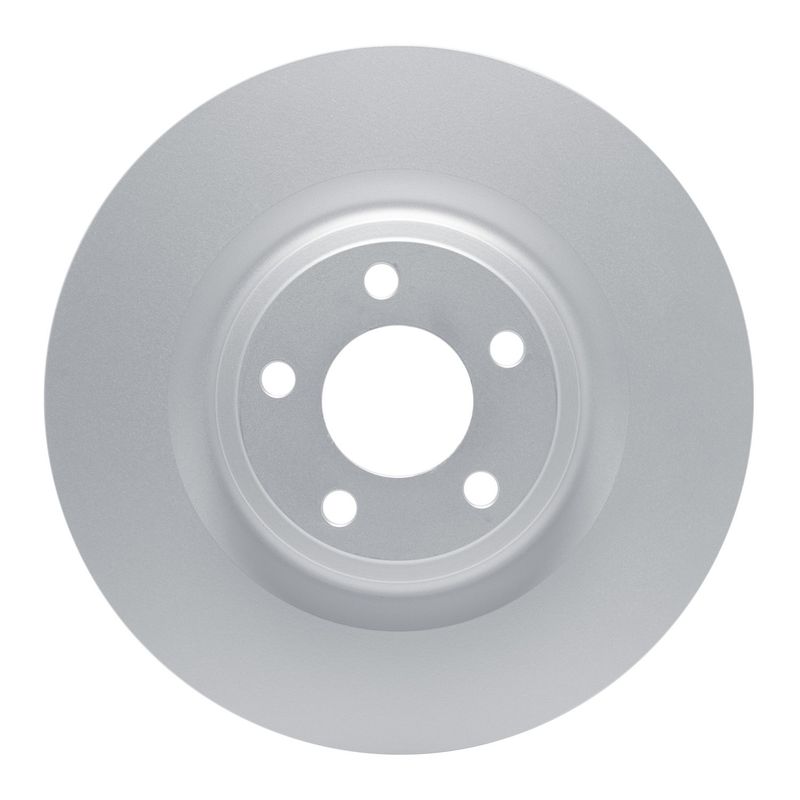

Dynamic Friction 604-55012 Disc Brake Rotor - Front

Brand	Dynamic Friction 604-55012
Position	Front
Discard Thickness	26.5
Nominal Thickness	28
Bolt Hole Diameter	15.8
Disc Finish	Plain
Bolt Hole Quantity	5
Outside Diameter	345
Height	53.2
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Center Hole Diameter	71
Stud/Lug Hole Quantity	5
Directional or Non-Directional Brake Surface	Non-directional
Bolt Circle Diameter	114.3
Product line	DFC GEOSPEC Coated Rotor
Fits	Lincoln · 3 vehicles

GEOSPEC coated rotor. Coated rotor construction with a clean, service-ready finish.

Vented design. Helps manage heat during repeated braking.

Precision dimensions. Defined thickness, diameter, and bolt pattern for fitment matching.

$95.27Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Disc Brake Rotors are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Disc Brake Rotor options

Overview

The Dynamic Friction 604-55012 is a vented disc brake rotor built for direct fitment on select Lincoln Nautilus front applications. It uses a smooth, non-directional braking surface and a plain finish for a clean, service-ready replacement.

Fits 2024-2026 Lincoln Nautilus, front. The DFC GEOSPEC Coated Rotor line focuses on coated rotor construction for consistent service characteristics and a straightforward replacement path. Part number 604-55012 is the reference to verify before ordering.

Key Features

Vented rotor design for improved heat management during braking.
Plain disc finish with a smooth, non-directional surface.
5-bolt pattern with 114.3 mm bolt circle diameter.
345 mm outside diameter and 53.2 mm overall height.
Center hole diameter of 71 mm for proper hub location.
Fits 2024-2026 Lincoln Nautilus, front.

Detailed Description

This brake rotor is engineered around the listed dimensions: 26.5 mm discard thickness, 28 mm nominal thickness, 15.8 mm bolt hole diameter, and a vented construction. Those specifications matter when matching rotor geometry, pad sweep, and hub fitment on the Lincoln Nautilus. If you are replacing a worn front rotor, part number 604-55012 provides the size and bolt pattern details needed for a correct application match.

The DFC GEOSPEC Coated Rotor line is positioned as a coated rotor solution for drivers who want a replacement rotor with a clean surface finish and defined dimensional specs. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Is Used For

Replacing a worn or below-spec front brake rotor.
Correcting brake pulsation caused by rotor wear or thickness variation.
Restoring proper pad contact on the braking surface.
Addressing noise or uneven braking linked to rotor surface condition.

Installation Notes and Tips

Verify rotor diameter, center bore, bolt pattern, and thickness against the existing part before installation. Confirm the application by matching part number 604-55012 to the vehicle’s front brake specification. Clean the hub mounting surface thoroughly so the rotor seats flat and runs true.

Quality Assurance

Dynamic Friction supplies the GEOSPEC Coated Rotor line as a specification-driven replacement rotor family with defined dimensional and surface-finish details for fitment verification.

This part fits 3 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2026	Lincoln	Nautilus	Front	DFC GEOSPEC Coated Rotor
2025	Lincoln	Nautilus	Front	DFC GEOSPEC Coated Rotor
2024	Lincoln	Nautilus	Front	DFC GEOSPEC Coated Rotor
