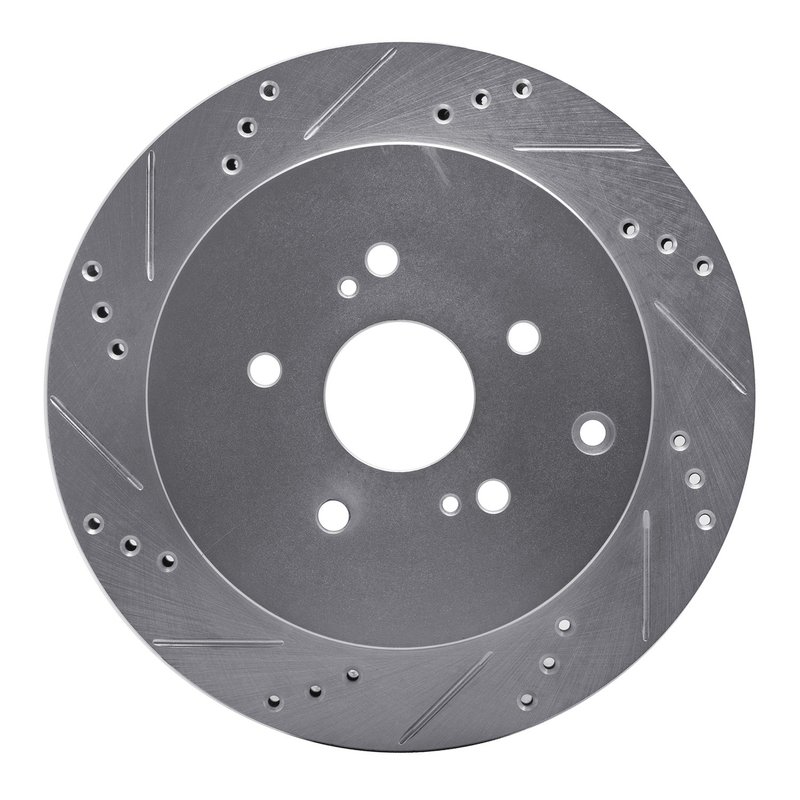

Dynamic Friction 631-01015L Disc Brake Rotor - Rear Left

Brake Rotor for Grand Vitara

This Dynamic Friction disc brake rotor is built for the rear left position on compatible Suzuki Grand Vitara applications. It combines a vented rotor design with a slotted and drilled surface to support consistent braking performance and heat management.

Part number 631-01015L identifies this rotor in the DFC Brake Rotor - Drilled and Slotted - Silver line. The zinc silver hat finish and rust-resistant coating add corrosion protection, while the directional braking surface is engineered for controlled contact.

Key Features

• Vented disc brake rotor with slotted and drilled surface
• Zinc silver hat finish with rust-resistant coating
• Directional brake surface for consistent rotor action
• 5-lug pattern with 114.3 mm bolt circle
• Part number 631-01015L for easy identification

Detailed Description

Dynamic Friction 631-01015L is a rear left disc brake rotor for 2009-2017 Suzuki Grand Vitara fitments. The rotor uses a vented construction, 308 mm outside diameter, 57.2 mm overall height, and a 62 mm center hole to match the listed application requirements. Its slotted X drilled surface helps manage heat and maintain a clean braking face, while the plain disc finish and zinc silver hat finish provide a practical balance of function and corrosion resistance. The DFC Brake Rotor - Drilled and Slotted - Silver line focuses on application-specific rotor design, and this part number 631-01015L follows that approach for Grand Vitara brake service.

Common Issues This Rotor Can Address

• Brake pulsation from a worn or uneven rotor surface
• Reduced braking consistency from heat buildup
• Surface corrosion on the rotor hat or braking face
• Noise caused by rotor wear or surface irregularity
• Service needs on a rear left brake rotor for the listed Grand Vitara applications

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and directional surface orientation before installation. This rotor is listed for the rear left position on 2009-2017 Suzuki Grand Vitara applications, so confirm the vehicle match and side before service. Clean the hub mounting surface and inspect related brake components during replacement to help ensure proper rotor seating.

Quality Assurance

Dynamic Friction supplies this rotor as part of its DFC Brake Rotor - Drilled and Slotted - Silver line, with application-specific sizing and corrosion-resistant finishing details that support consistent brake service.
