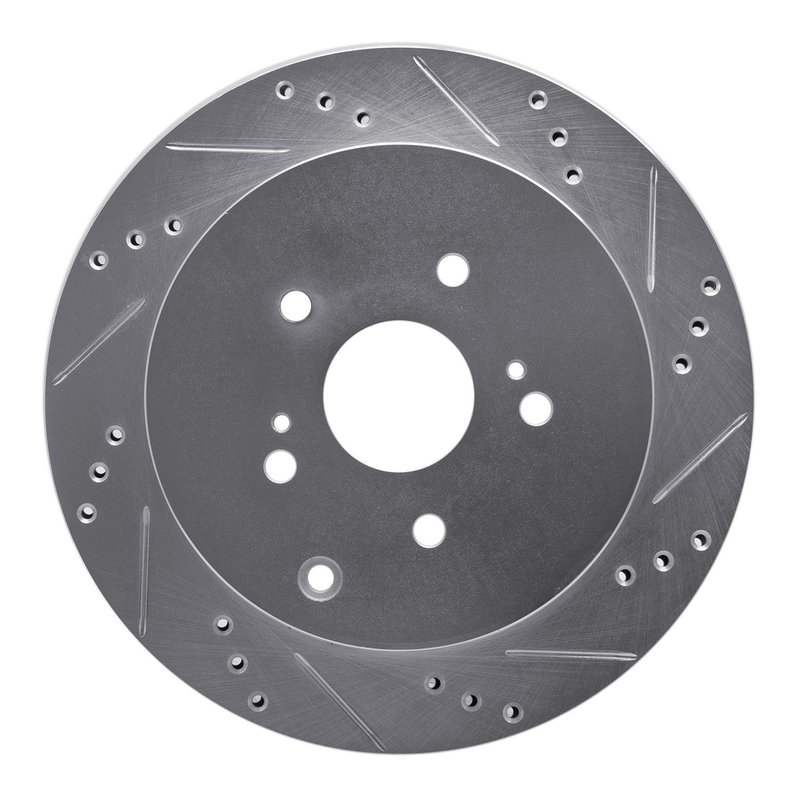

Dynamic Friction 631-01015R Disc Brake Rotor - Rear Right

Overview

Dynamic Friction 631-01015R is a vented disc brake rotor with a slotted and drilled surface, zinc silver hat finish, and rust-resistant coating. It is built for the rear right position and fits 2009-2017 Suzuki Grand Vitara applications listed below.

This rotor uses a directional braking surface and a 5-lug pattern with a 114.3 mm bolt circle. The plain disc finish and coated hat help support consistent service life in demanding brake environments.

Key Features

• Slotted and drilled rotor surface for improved brake surface management.
• Vented rotor construction for heat dissipation.
• Zinc silver hat finish with rust-resistant coating.
• 5-bolt, 5-lug design with 114.3 mm bolt circle.
• Directional brake surface for the specified application.

Detailed Description

The Dynamic Friction 631-01015R brake rotor is a direct-fit replacement for the rear right position on 2009-2017 Suzuki Grand Vitara models shown in the fitment data. Its vented construction, drilled and slotted surface, and corrosion-resistant finish make it a practical choice for restoring brake performance and maintaining rotor appearance over time. The 308 mm outside diameter, 62 mm center hole, and 57.2 mm overall height match the listed application requirements.

Dynamic Friction 631-01015R is part of the DFC Brake Rotor - Drilled and Slotted - Silver line, which identifies the rotor’s surface design and finish in one product family. For buyers searching for a Suzuki Grand Vitara rear right brake rotor, this part number provides a fitment-specific option with the dimensions and bolt pattern needed for the listed vehicle application.

What It Is Used For

• Replacing a worn or scored rear brake rotor.
• Addressing brake pulsation caused by rotor surface wear.
• Restoring braking contact on the rear right corner.
• Replacing a rotor with corrosion on the hat or braking surface.
• Matching the listed bolt pattern and rotor dimensions for service work.

Installation Notes and Tips

Verify the rear right fitment, 308 mm outside diameter, 114.3 mm bolt circle, and 62 mm center hole before installation. Confirm the rotor thickness meets service limits and inspect pads, caliper condition, and hub surfaces during replacement. This part number is 631-01015R.

Quality Assurance

Dynamic Friction supplies brake components with application-specific fitment and corrosion-resistant finishes. The 631-01015R rotor is built to the listed dimensional and surface specifications for the stated Suzuki Grand Vitara application.
