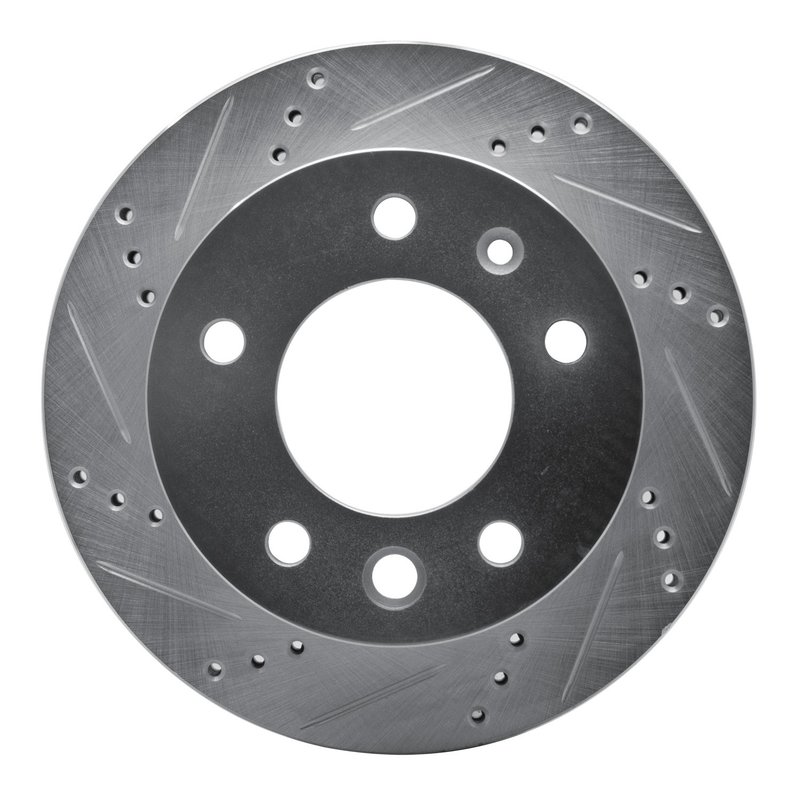

Dynamic Friction 631-40041L Disc Brake Rotor - Front Left

Drilled and Slotted Brake Rotor

The Dynamic Friction 631-40041L is a vented disc brake rotor with a drilled and slotted surface, built for direct replacement applications that require consistent braking performance and corrosion resistance. It is compatible with select Dodge Sprinter 2500, Dodge Sprinter 3500, Freightliner Sprinter 2500, Freightliner Sprinter 3500, and Mercedes-Benz Sprinter front left fitments.

Key Features

• Vented rotor design helps manage heat during repeated braking.
• Slotted and drilled surface promotes pad bite and helps clear gases and debris.
• Zinc silver hat finish and rust-resistant coating help protect exposed surfaces.
• Directional braking surface supports consistent contact pattern.
• Five-lug pattern with 130 mm bolt circle for confirmed fitment applications.

Detailed Description

Dynamic Friction 631-40041L is a front left disc brake rotor engineered for 276 mm front rotor applications on select Sprinter platforms. The rotor uses a vented construction with a slotted and drilled friction surface, a plain disc finish, and a zinc silver hat finish for added corrosion protection. Its 22 mm nominal thickness, 19 mm discard thickness, 276 mm outside diameter, and 85 mm center hole diameter align with the listed fitment requirements. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For buyers searching for a Dodge Sprinter 2500 brake rotor, a Freightliner Sprinter 3500 front left rotor, or a Mercedes-Benz Sprinter replacement rotor, 631-40041L matches the specified vehicle configurations and brake hardware notes shown in the fitment data. The part number 631-40041L is also useful when verifying the correct rotor for 2002-2006 Sprinter applications.

What It Is Used For

• Replacing a worn or below-spec front brake rotor.
• Addressing brake pulsation caused by rotor wear or surface variation.
• Restoring braking contact on drilled and slotted rotor applications.
• Replacing a corroded rotor hat or friction surface.
• Matching the correct rotor for listed Sprinter brake configurations.

Installation Notes and Tips

Confirm the vehicle year, make, model, and brake system notes before ordering. This rotor is listed for front left applications only, with fitment notes that include 276 mm front rotors and specific pad sensor or caliper configurations on some vehicles. Verify bolt pattern, center hole diameter, and rotor dimensions against the existing part before installation. The part number 631-40041L should be matched to the vehicle’s brake setup exactly as listed.

Quality Assurance

Dynamic Friction supplies brake components with application-specific dimensions and finish details to support accurate replacement selection. The 631-40041L rotor is built with rust-resistant coating and zinc silver hat finish for added surface protection in service.
