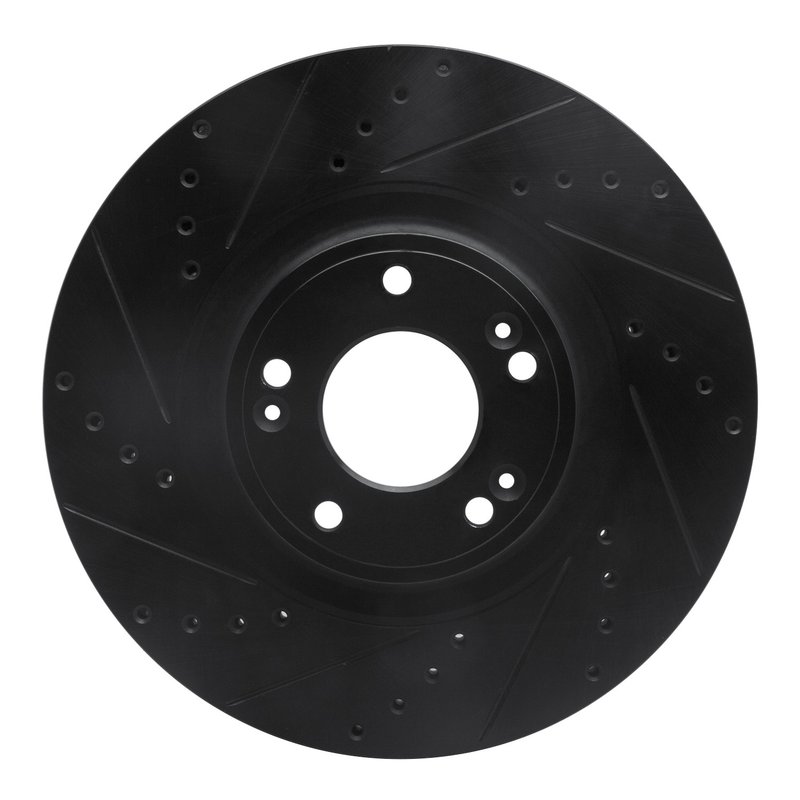

Dynamic Friction 633-03028L Disc Brake Rotor - Front Left

Overview

This Dynamic Friction disc brake rotor is built for direct fitment on select Hyundai Genesis applications. It combines a vented rotor design with a slotted and drilled surface, plus a black zinc hat finish for added corrosion resistance.

Part number 633-03028L is a fitment-based replacement for drivers looking for a Hyundai Genesis front left brake rotor with the correct dimensions and directional braking surface.

Key Features

• Slotted and drilled rotor surface for consistent pad contact and heat management.
• Vented construction for improved airflow through the rotor.
• Black zinc hat finish with rust-resistant coating.
• Directional brake surface for proper rotation-specific installation.
• Built to match the specified bolt pattern, center bore, and overall dimensions.

Detailed Description

Dynamic Friction 633-03028L is a disc brake rotor engineered around the listed fitment and dimensional requirements for 2009-2014 Hyundai Genesis front left applications. The rotor uses a vented design with a slotted X drilled surface, a 330 mm outside diameter, and a 114.3 mm bolt circle to align with the original mounting geometry. The plain disc finish and zinc black hat finish provide a clean appearance with added resistance to surface corrosion.

This rotor is a practical choice when replacing a worn or heat-affected Hyundai Genesis brake rotor and when maintaining the correct directional surface is important. Part number 633-03028L should be matched to the vehicle and position listed in the fitment data before installation.

What It Helps Solve

• Brake pulsation caused by rotor wear or uneven surface condition.
• Reduced braking consistency from heat buildup.
• Surface corrosion on the rotor hat and exposed metal areas.
• Noise or vibration related to an out-of-spec rotor surface.
• Fitment issues when the replacement rotor does not match the required dimensions.

Installation Notes

Verify the vehicle, model year, and front left position before installation. Confirm rotor thickness, bolt circle diameter, center hole diameter, and overall height against the removed part. Because the surface is directional, install the rotor in the correct rotation orientation for the application.

Quality Assurance

Dynamic Friction supplies this rotor with a rust-resistant coating and zinc black hat finish for added protection in service. Part number 633-03028L is built to the listed specifications for the Hyundai Genesis application shown in the fitment data.
