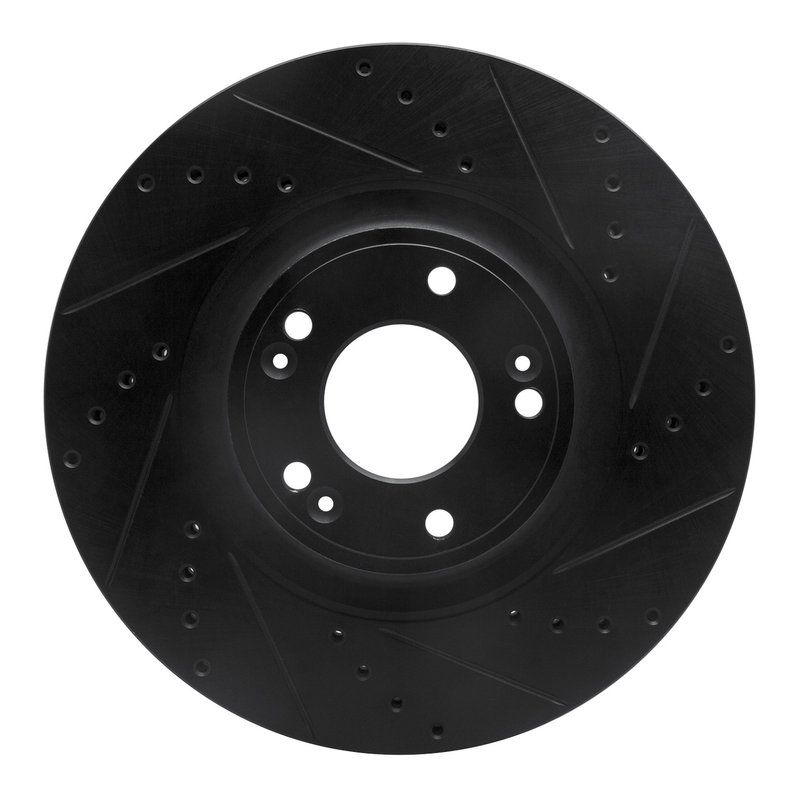

Dynamic Friction 633-03028R Disc Brake Rotor - Front Right
| Brand | Dynamic Friction 633-03028R |
|---|---|
| Position | Front Right |
| Discard Thickness | 28.4 |
| Nominal Thickness | 30 |
| Bolt Hole Diameter | 12.5 |
| Disc Finish | Plain |
| Hat Finish | Zinc black |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 5 |
| Overall Height | 56.8 |
| Outside Diameter | 330 |
| Height | 56.8 |
| Surface Type | Slotted x drilled |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 69 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.5 |
| Directional or Non-Directional Brake Surface | Directional |
| Bolt Circle Diameter | 114.3 |
| Stud/Lug Hole Circle Diameter | 114.3 |
| Product line | DFC Brake Rotor - Drilled and Slotted - Black |
| Fits | Hyundai · 6 vehicles |
Drilled and slotted. Surface design helps maintain consistent pad contact and airflow.
Rust-resistant finish. Black zinc hat coating adds protection against corrosion.
OE-style dimensions. Application-specific sizing supports accurate rotor replacement.
Overview
The Dynamic Friction 633-03028R is a vented disc brake rotor with a slotted and drilled surface, built for direct replacement applications that require the correct fit and braking surface geometry. It is compatible with 2009-2014 Hyundai Genesis, front right, and uses a black zinc hat finish with rust-resistant coating for added surface protection.
Key Features
- Slotted and drilled rotor surface for consistent pad contact and heat management.
- Vented rotor construction for improved airflow through the disc.
- Rust-resistant coating and zinc black hat finish for corrosion protection.
- 5-lug pattern with 114.3 mm bolt circle and 69 mm center hole diameter.
- Plain disc finish with directional braking surface design.
Product Details
This Dynamic Friction brake rotor, part number 633-03028R, is engineered to match the specified dimensions for the Hyundai Genesis brake system. The rotor measures 330 mm outside diameter, 56.8 mm overall height, and 30 mm nominal thickness with a 28.4 mm discard thickness. Its slotted X-drilled surface and vented design support stable braking performance under repeated use. Part number 633-03028R is a fitment-specific rotor for 2009-2014 Hyundai Genesis, front right.
Common Issues It Can Address
- Uneven braking feel caused by worn rotor surfaces.
- Brake pulsation related to rotor wear or surface variation.
- Reduced braking consistency from heat buildup.
- Corrosion on exposed rotor surfaces.
Installation Notes
Verify rotor dimensions, bolt pattern, center hole diameter, and directional surface orientation before installation. Confirm compatibility with 2009-2014 Hyundai Genesis, front right, and inspect pads and related brake components for wear during service. Part number 633-03028R should be matched to the vehicle application and mounting position listed in the fitment data.
Quality Assurance
Dynamic Friction supplies brake components with application-specific dimensions and protective finishes intended to support consistent fit and corrosion resistance.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Hyundai | Genesis | 3.8 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2013 | Hyundai | Genesis | 3.8 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2012 | Hyundai | Genesis | 3.8 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2011 | Hyundai | Genesis | 4.6 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2010 | Hyundai | Genesis | 4.6 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2009 | Hyundai | Genesis | 4.6 | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
