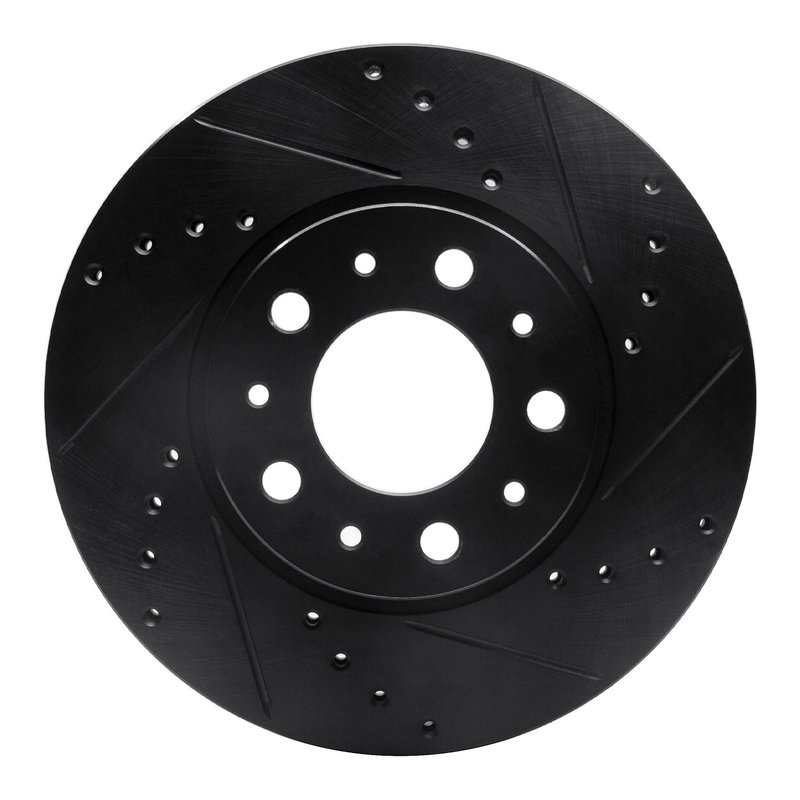

Dynamic Friction 633-27015R Disc Brake Rotor - Front Right

Overview

This Dynamic Friction disc brake rotor, part number 633-27015R, is built for Volvo applications that require a front right rotor with a 5-lug, 108 mm bolt pattern. The slotted and drilled surface, vented construction, and black zinc hat finish give this rotor a performance-focused design with added corrosion resistance.

Compatible with Volvo 740, 780, 940, and 960 applications listed below, this rotor is a fitment-specific replacement for vehicles using the noted front right configuration. The 633-27015R part number is also useful when matching the correct rotor by application details.

Key Features

• Slotted and drilled braking surface for consistent pad contact and heat management.
• Vented rotor design for improved airflow through the disc.
• Rust-resistant coating with a black zinc hat finish for added surface protection.
• 5-lug pattern with 108 mm bolt circle and 68 mm center hole.
• Plain disc finish with directional braking surface.

Detailed Description

Dynamic Friction 633-27015R is a vented disc brake rotor with a slotted X drilled surface and directional braking face. The rotor measures 280 mm outside diameter, 26 mm nominal thickness, and 24 mm discard thickness, with 14 mm bolt and stud/lug holes. Its black zinc hat finish and rust-resistant coating help protect exposed surfaces, while the plain disc finish keeps the braking area focused on contact performance. For Volvo 940, Volvo 960, Volvo 740, and Volvo 780 fitments, this rotor is specified for the front right position and should be matched carefully to the listed suspension and caliper notes. The 633-27015R part number should be verified against the vehicle’s exact configuration before ordering.

What It Is Used For

• Replacing a worn or below-spec front right brake rotor.
• Addressing rotor scoring, grooves, or uneven braking feel.
• Restoring proper braking surface thickness and geometry.
• Reducing corrosion on exposed rotor surfaces.
• Matching the correct rotor for listed Volvo fitment notes.

Installation Notes and Tips

Confirm the vehicle’s suspension and caliper configuration before installation, especially on Volvo 940 and Volvo 960 applications where independent rear suspension notes affect fitment. Verify bolt pattern, center hole diameter, and rotor dimensions against the removed part. Clean the hub mounting surface before installing the rotor to help prevent runout-related issues.

Quality Assurance

Dynamic Friction’s DFC Brake Rotor line focuses on application-specific brake components with performance-oriented surface treatments and corrosion protection. Part number 633-27015R is built to match the listed fitment and dimensional requirements for the specified Volvo applications.
