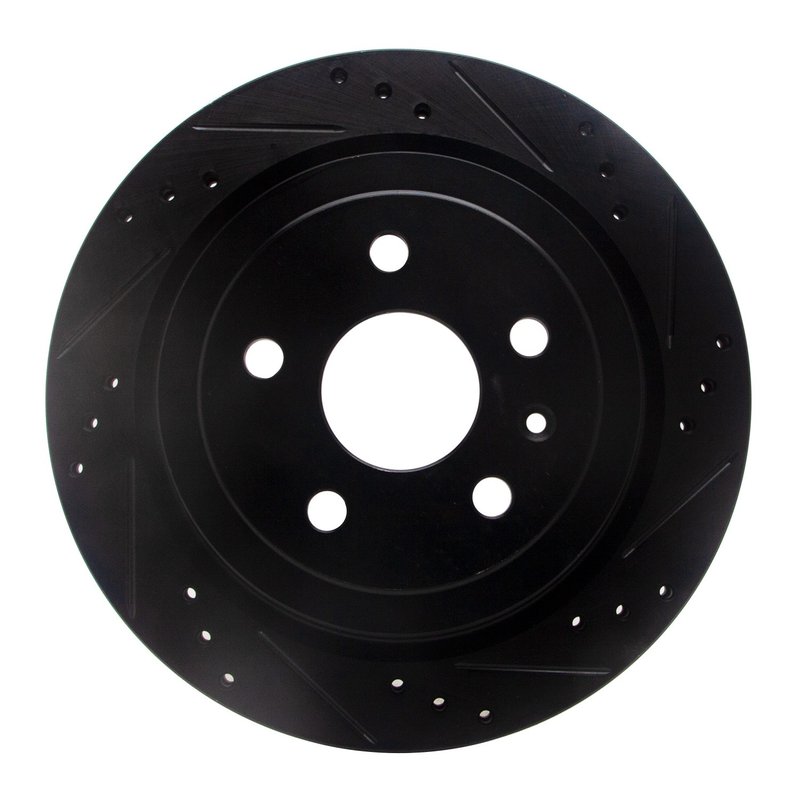

Dynamic Friction 633-46024R Disc Brake Rotor - Rear Right

Drilled and Slotted Rear Right Rotor

The Dynamic Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-46024R, is a rear right disc brake rotor built for select Cadillac CTS and Chevrolet Camaro applications. It combines a vented rotor design with a slotted X drilled surface and a zinc black hat finish for a clean, corrosion-resistant appearance.

For drivers searching for a rear right brake rotor for 2010-2015 Chevrolet Camaro or 2008-2019 Cadillac CTS applications, 633-46024R provides the fitment and dimensions needed for direct replacement service.

Key Features

• Part number 633-46024R from Dynamic Friction
• Disc brake rotor with drilled and slotted surface type
• Vented rotor construction for rear right position use
• Plain disc finish with zinc black hat finish
• Rust resistant coating for added surface protection
• Directional brake surface design
• 5-bolt, 5-lug pattern with 120 mm bolt circle diameter
• Outside diameter: 315 mm
• Nominal thickness: 23 mm; discard thickness: 21.5 mm
• Center hole diameter: 67.4 mm

Product Line Details

The DFC Brake Rotor - Drilled and Slotted - Black line focuses on rotor geometry and finish details that matter in service fitment. The slotted X drilled surface supports consistent pad contact characteristics, while the black zinc hat finish and rust resistant coating help maintain a cleaner appearance on exposed rotor areas.

Detailed Description

This rear right brake rotor is engineered around the listed dimensions for direct replacement on compatible Cadillac CTS and Chevrolet Camaro models. The 315 mm outside diameter, 48 mm overall height, 120 mm bolt circle diameter, and 67.4 mm center hole diameter are key measurements for matching the original brake setup. The vented design and directional slotted/drilled surface make it a technical replacement choice for drivers maintaining factory-style brake geometry with a performance-oriented rotor finish. Fits 2014-2019 Cadillac CTS, rear right. Fits 2015-2019 Cadillac CTS, rear right. Fits 2014 Cadillac CTS, rear right. Fits 2008-2013 Cadillac CTS, rear right. Fits 2010-2015 Chevrolet Camaro, rear right. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Rotor Can Address

• Rear brake rotor wear that requires replacement at the specified discard thickness
• Brake pulsation caused by rotor surface irregularity
• Corrosion on exposed rotor and hat surfaces
• Loss of consistent pad-to-rotor contact from worn braking surfaces
• Fitment needs for a rear right rotor on Cadillac CTS and Chevrolet Camaro applications

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center bore before installation. Confirm the rear right position and compare the old rotor to the listed 315 mm outside diameter, 120 mm bolt circle, and 67.4 mm center hole diameter. Inspect pads, caliper condition, and hub surface during service so the new rotor seats evenly and operates within specification.

Quality Assurance

Dynamic Friction supplies this rotor with a rust resistant coating and zinc black hat finish to support long-term surface protection in normal brake service conditions. The part number 633-46024R is built to match the listed fitment and dimensional requirements for the specified Cadillac CTS and Chevrolet Camaro rear right applications.
