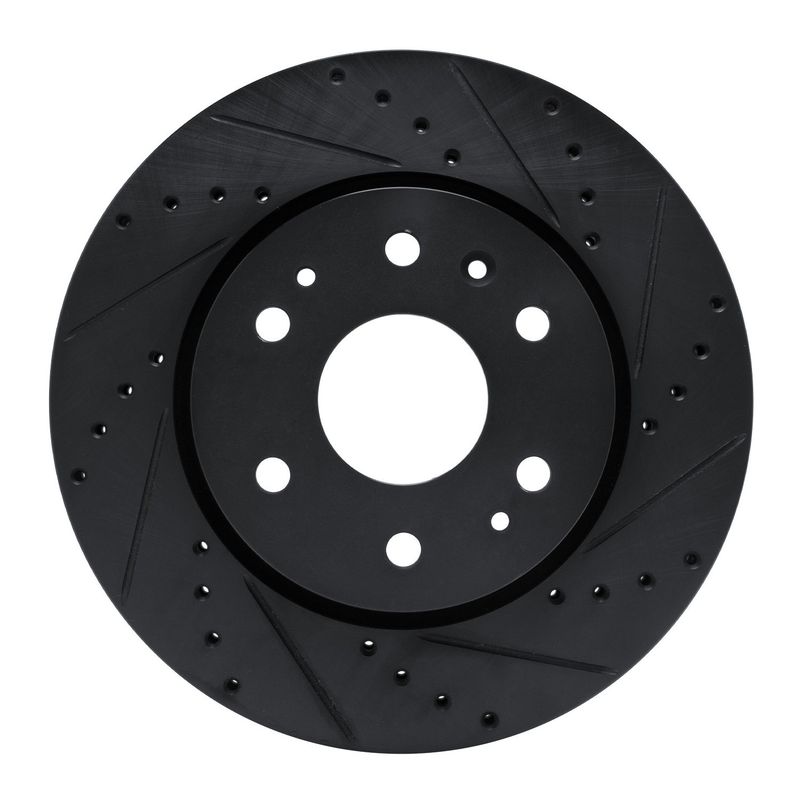

Dynamic Friction 633-47092R Disc Brake Rotor - Front Right
| Brand | Dynamic Friction 633-47092R |
|---|---|
| Position | Front Right |
| Discard Thickness | 25 |
| Nominal Thickness | 27 |
| Bolt Hole Diameter | 16 |
| Disc Finish | Plain |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 340 |
| Height | 54 |
| Surface Type | Slotted x drilled |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 78.5 |
| Stud/Lug Hole Quantity | 6 |
| Directional or Non-Directional Brake Surface | Directional |
| Bolt Circle Diameter | 139.7 |
| Product line | DFC Brake Rotor - Drilled and Slotted - Black |
| Fits | Chevrolet and GMC · 8 vehicles |
Drilled and slotted. Directional braking surface helps maintain consistent pad contact under heat.
Vented rotor design. Built to move air through the rotor for improved heat management.
Fitment-specific sizing. 340 mm diameter with a 6-lug, 139.7 mm bolt pattern.
Overview
The Dynamic Friction 633-47092R is a vented disc brake rotor with a slotted and drilled surface, built for direct fitment on select front right applications. It is engineered for vehicles that use a 6-lug, 139.7 mm bolt circle and a 340 mm outside diameter.
Key Features
- Vented rotor construction for improved heat management.
- Slotted and drilled braking surface for consistent pad contact.
- Directional surface design for controlled rotation-specific performance.
- 6-bolt, 6-lug pattern with 139.7 mm bolt circle diameter.
- Black DFC Brake Rotor line styling with a plain disc finish.
Detailed Description
The Dynamic Friction 633-47092R brake rotor is part of the DFC Brake Rotor - Drilled and Slotted - Black line and is built around a vented, directional design. With a 340 mm outside diameter, 54 mm height, 78.5 mm center hole diameter, and 25 mm discard thickness, it matches the dimensional requirements for select Chevrolet Colorado and GMC Canyon front right brake applications. The slotted X drilled surface supports stable pad engagement, while the plain disc finish keeps the rotor surface straightforward for service use. This part number, 633-47092R, is a fitment-specific replacement for vehicles that require the listed bolt pattern and rotor dimensions.
What It Is Used For
- Replacing a worn front right brake rotor.
- Restoring braking performance when the rotor surface is scored or uneven.
- Addressing brake pulsation caused by rotor wear or thickness variation.
- Matching the correct bolt pattern and rotor dimensions for service repair.
Installation Notes and Tips
Verify rotor diameter, center hole diameter, bolt circle diameter, and discard thickness before installation. Confirm directional orientation during service, since this rotor uses a directional braking surface. Fits 2023-2026 Chevrolet Colorado, front right. Fits 2023-2026 GMC Canyon, front right. Part number 633-47092R should be matched to the vehicle’s brake specification before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2026 | Chevrolet | Colorado | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2026 | GMC | Canyon | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2025 | Chevrolet | Colorado | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2025 | GMC | Canyon | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2024 | Chevrolet | Colorado | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2024 | GMC | Canyon | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2023 | Chevrolet | Colorado | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
| 2023 | GMC | Canyon | Front Right | DFC Brake Rotor - Drilled and Slotted - Black |
