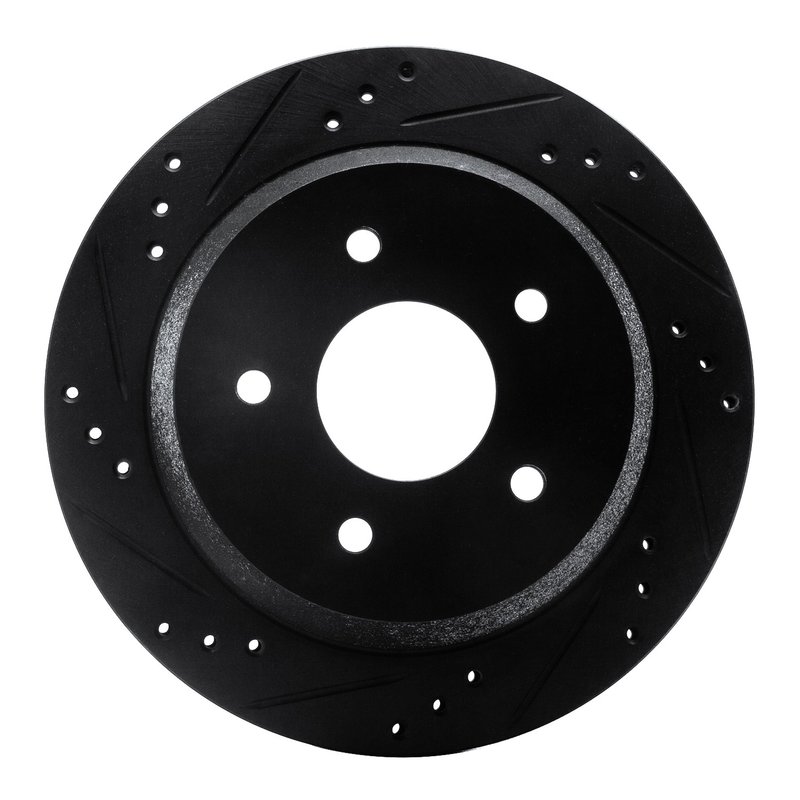

DFC Brake Rotor - Drilled and Slotted - BlackDynamic Friction 633-48035L Disc Brake Rotor - Rear Left
| Brand | Dynamic Friction 633-48035L |
|---|---|
| Position | Rear Left |
| Discard Thickness | 18.5 |
| Nominal Thickness | 20 |
| Bolt Hole Diameter | 13.1 |
| Disc Finish | Plain |
| Hat Finish | Zinc black |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 5 |
| Overall Height | 73 |
| Outside Diameter | 295 |
| Height | 73 |
| Surface Type | Slotted x drilled |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 70.7 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.1 |
| Directional or Non-Directional Brake Surface | Directional |
| Bolt Circle Diameter | 120.7 |
| Stud/Lug Hole Circle Diameter | 120.7 |
| Product line | DFC Brake Rotor - Drilled and Slotted - Black |
| Fits | Chevrolet and GMC · 36 vehicles |
Slotted and drilled. Directional brake surface promotes consistent pad contact and heat control.
Corrosion protection. Zinc black hat finish and rust-resistant coating add surface durability.
OE-style fitment. Application-specific rotor for select GM brake service needs.
$110.27Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options
Brake Rotor for Select GM Applications
This Dynamic Friction disc brake rotor is built for specific rear left applications and uses a slotted, drilled surface with a vented design. It is a fitment-based replacement for Chevrolet Blazer, Chevrolet S10, GMC Sonoma, and GMC Jimmy models listed below.
Key Features
- Slotted and drilled braking surface for consistent pad contact.
- Vented rotor construction for improved heat management.
- Zinc black hat finish with rust-resistant coating.
- Five-lug pattern with 120.7 mm bolt circle diameter.
- Part number 633-48035L for application matching.
Detailed Description
Dynamic Friction 633-48035L is a disc brake rotor with a directional, slotted X-drilled surface and a plain disc finish. The rotor measures 295 mm in outside diameter, 20 mm nominal thickness, and 18.5 mm discard thickness, with a 70.7 mm center hole diameter and 73 mm overall height. The zinc black hat finish and rust-resistant coating add corrosion protection for service use. This rotor is listed for rear left fitment on select Chevrolet and GMC trucks and SUVs, including Chevrolet Blazer, Chevrolet S10, GMC Sonoma, and GMC Jimmy. The part number 633-48035L appears in the application data and product line identification for easier catalog matching.
What It Is Used For
- Replacing a worn or warped rear brake rotor.
- Restoring braking smoothness after rotor scoring.
- Addressing vibration caused by uneven rotor wear.
- Servicing corrosion-damaged brake surfaces.
Installation Notes and Tips
- Verify rear left fitment against the vehicle listing before ordering.
- Confirm the 5-lug pattern, 120.7 mm bolt circle, and 70.7 mm center bore.
- Check discard thickness and rotor dimensions during brake service.
- Review notes for exclusions such as Limited Slip Axle, ZR2 Suspension Package, and High Wider Package.
Quality Assurance
Dynamic Friction identifies this rotor as part number 633-48035L and specifies a rust-resistant coating with a zinc black hat finish for added surface protection.
This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | # Doors | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Blazer | Base | — | 4WD | Automatic | Rear Left | excluding Limited Slip Axle; DFC Brake Rotor - Drilled and Slotted - Black |
| 2005 | Chevrolet | Blazer | ZR2 | — | 4WD | Automatic | Rear Left | excluding Limited Slip Axle; DFC Brake Rotor - Drilled and Slotted - Black |
| 2005 | Chevrolet | Blazer | Xtreme | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2005 | Chevrolet | Blazer | Base | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2004 | Chevrolet | Blazer | — | 2 Door | 4WD | Automatic | Rear Left | without ZR2 Suspension Package; excluding Limited Slip Axle; DFC Brake Rotor - Drilled and Slotted - Black |
| 2004 | Chevrolet | Blazer | — | 4 Door | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2004 | Chevrolet | S10 | — | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2004 | GMC | Sonoma | — | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2003 | Chevrolet | Blazer | LS | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2003 | Chevrolet | Blazer | Xtreme | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2003 | Chevrolet | Blazer | LS | — | 4WD | Automatic | Rear Left | Except High Wider Package; DFC Brake Rotor - Drilled and Slotted - Black |
| 2002 | Chevrolet | Blazer | LS | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2002 | Chevrolet | Blazer | Xtreme | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2002 | Chevrolet | Blazer | LS | — | 4WD | Automatic | Rear Left | Except High Wider Package; DFC Brake Rotor - Drilled and Slotted - Black |
| 2002 | Chevrolet | Blazer | LT | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2002 | GMC | Jimmy | — | — | — | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2001 | Chevrolet | Blazer | — | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2001 | GMC | Jimmy | — | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | Chevrolet | Blazer | — | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | GMC | Jimmy | SLE | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | GMC | Jimmy | SLS | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | GMC | Jimmy | Envoy | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | GMC | Jimmy | Diamond Edition | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 2000 | GMC | Jimmy | SLT | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | Chevrolet | Blazer | — | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | GMC | Jimmy | SLE | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | GMC | Jimmy | SLS | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | GMC | Jimmy | Envoy | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | GMC | Jimmy | SLT | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1999 | GMC | Jimmy | SL | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | Chevrolet | Blazer | — | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | GMC | Jimmy | SLE | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | GMC | Jimmy | SLS | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | GMC | Jimmy | Envoy | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | GMC | Jimmy | SLT | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
| 1998 | GMC | Jimmy | SL | — | RWD | — | Rear Left | DFC Brake Rotor - Drilled and Slotted - Black |
