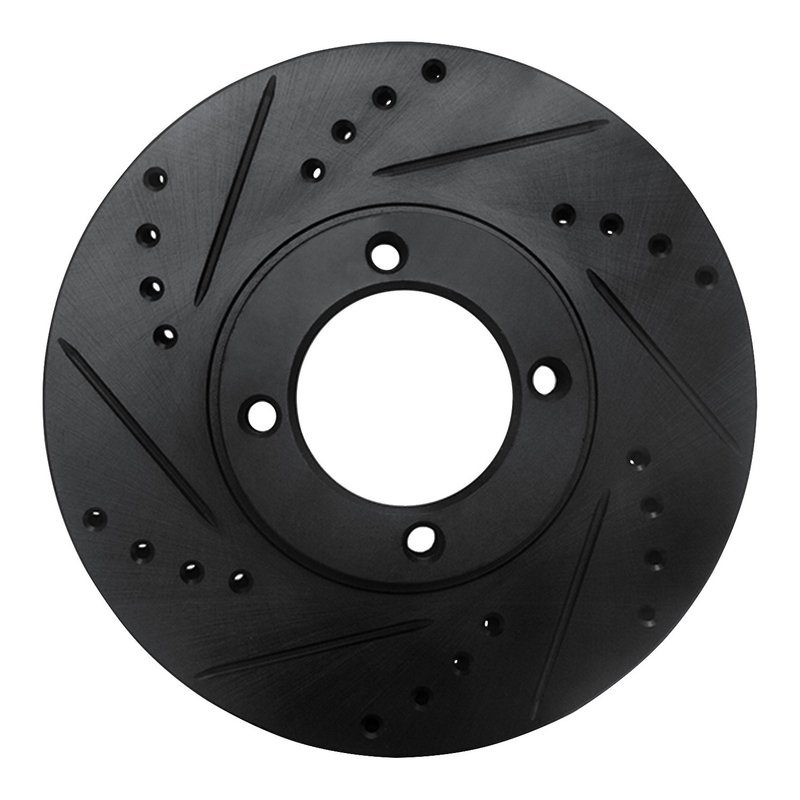

Dynamic Friction 633-76103L Disc Brake Rotor - Front Left

Overview

Dynamic Friction 633-76103L is a vented disc brake rotor with a slotted and drilled surface, black zinc hat finish, and rust-resistant coating. It is built for direct fitment on select Toyota Van and Toyota Van Wagon applications with a front left mounting position.

Key Features

• Vented rotor design for improved heat management during braking.
• Slotted and drilled braking surface for consistent pad contact and debris evacuation.
• Black zinc hat finish with rust-resistant coating for added corrosion protection.
• Plain disc finish with a directional brake surface.
• 4-lug, 100 mm bolt circle and 74 mm center hole for application-specific fitment.

Detailed Description

This Dynamic Friction brake rotor, part number 633-76103L, is engineered as a vented disc rotor with a slotted X drilled surface and directional braking face. The 255 mm outside diameter, 20 mm nominal thickness, and 19 mm discard thickness provide the dimensional profile needed for the listed Toyota Van and Toyota Van Wagon fitments. The black zinc hat finish and rust-resistant coating add protection against surface corrosion, while the 4-bolt, 100 mm pattern supports the specified front left application. This part number 633-76103L is a fitment-specific replacement for Toyota Van and Toyota Van Wagon brake service.

Common Issues This Rotor Addresses

• Brake pulsation caused by uneven rotor wear.
• Reduced braking consistency from heat buildup.
• Surface corrosion on exposed rotor areas.
• Poor pad cleaning from worn or glazed rotor surfaces.
• Fitment mismatch on the specified Toyota front left application.

Installation Notes

Fits 1986-1989 Toyota Van, front left. Fits 1988 Toyota Van Wagon, front left. Verify rotor dimensions, bolt pattern, center hole diameter, and discard thickness before installation. Confirm the directional surface orientation matches the vehicle side and braking setup. Part number 633-76103L should be matched to the listed application before service begins.

Quality Assurance

Dynamic Friction markets this rotor under its DFC Brake Rotor line, which identifies the drilled and slotted design and black finish used for this application. Part number 633-76103L is built to the listed dimensional and fitment requirements for the specified Toyota vehicles.
