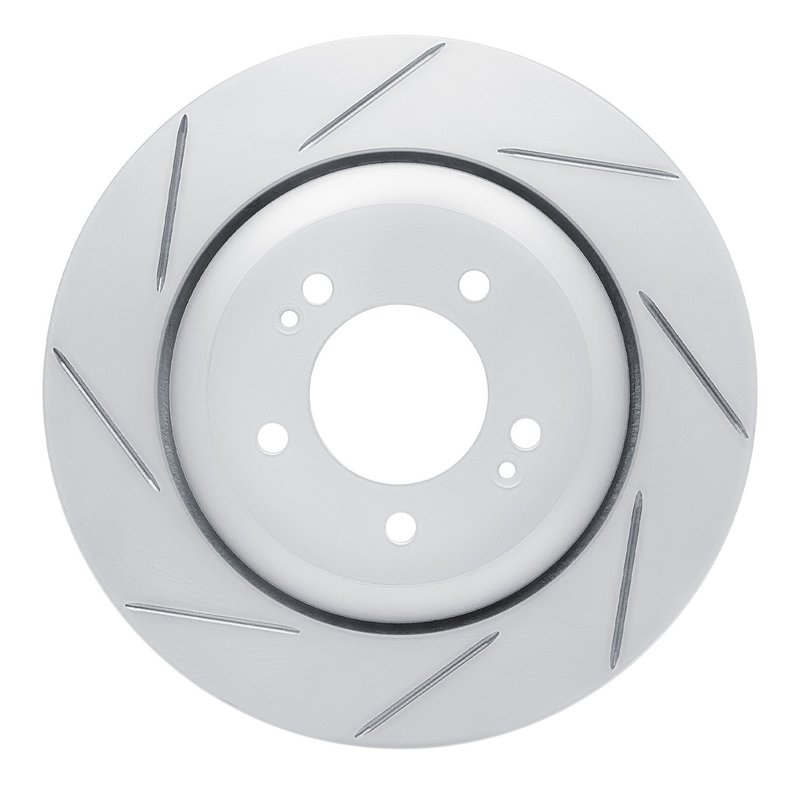

Dynamic Friction 810-03062L Disc Brake Rotor - Rear Left
| Brand | Dynamic Friction 810-03062L |
|---|---|
| Position | Rear Left |
| Discard Thickness | 18 |
| Nominal Thickness | 20 |
| Bolt Hole Diameter | 12.4 |
| Disc Finish | Plain |
| Hat Finish | Geospec silver grey |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 5 |
| Overall Height | 33.3 |
| Outside Diameter | 314 |
| Height | 33.3 |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 76 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.4 |
| Directional or Non-Directional Brake Surface | Directional |
| Bolt Circle Diameter | 114.3 |
| Stud/Lug Hole Circle Diameter | 114.3 |
| Product line | DFC Geoperformance Rotor - Slotted |
| Fits | Hyundai · 16 vehicles |
Slotted surface. Helps maintain consistent pad contact during braking.
Rust-resistant coating. Adds protection to exposed rotor surfaces.
Geoperformance line. Application-specific rotor design with a finished hat.
Overview
This Dynamic Friction slotted disc brake rotor is built for specific rear-left applications and uses a vented design with a directional braking surface. It is a fitment-based replacement for Hyundai performance models, including Hyundai Elantra, Hyundai Elantra N, Hyundai Kona N, and Hyundai Veloster N applications listed below.
- Slotted surface helps maintain consistent pad contact.
- Vented rotor construction supports heat management during braking.
- Rust-resistant coating helps protect exposed surfaces.
- Geospec Silver Grey hat finish provides a clean, finished appearance.
- Directional brake surface is engineered for the specified rotation pattern.
Product Details
The DFC Geoperformance Rotor - Slotted, part number 810-03062L, is a vented disc brake rotor with a 314 mm outside diameter, 20 mm nominal thickness, and 18 mm discard thickness. It uses a 5-lug, 114.3 mm bolt circle layout with a 76 mm center hole and 12.4 mm bolt hole diameter. The plain disc finish and slotted braking surface are paired with a rust-resistant coating and Geospec Silver Grey hat finish for a service-focused design. Part number 810-03062L is listed for rear-left fitment on Hyundai performance platforms, including 2022-2026 Hyundai Elantra, 2022-2026 Hyundai Elantra N, 2022-2023 Hyundai Kona N, and 2019-2022 Hyundai Veloster N.
Common Uses
- Brake pulsation or uneven rotor surface wear.
- Reduced braking consistency from heat buildup.
- Corrosion on the rotor hat or exposed surfaces.
- Need for a direct replacement rotor with the correct directional surface.
Installation Notes
Verify rotor dimensions, bolt pattern, and rear-left position before installation. This rotor is listed for 2022-2026 Hyundai Elantra, 2022-2026 Hyundai Elantra N, 2022-2023 Hyundai Kona N, and 2019-2022 Hyundai Veloster N applications. Confirm the vehicle uses the specified 314 mm rotor size and directional slotted surface. Part number 810-03062L should be matched to the exact fitment shown in the application data.
Quality Assurance
Dynamic Friction’s Geoperformance Rotor line focuses on application-specific rotor design with corrosion protection and performance-oriented surface geometry. The 810-03062L is built to the listed dimensional and fitment requirements for the specified Hyundai models.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2026 | Hyundai | Elantra | N Line | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2026 | Hyundai | Elantra N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2025 | Hyundai | Elantra | N Line | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2025 | Hyundai | Elantra N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2024 | Hyundai | Elantra | N Line | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2024 | Hyundai | Elantra N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2023 | Hyundai | Elantra | N Line | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2023 | Hyundai | Elantra N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2023 | Hyundai | Kona N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2022 | Hyundai | Elantra | N Line | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2022 | Hyundai | Elantra N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2022 | Hyundai | Kona N | — | Rear Left | DFC Geoperformance Rotor - Slotted |
| 2022 | Hyundai | Veloster N | — | Rear Left | 345mm Front Disc; DFC Geoperformance Rotor - Slotted |
| 2021 | Hyundai | Veloster N | — | Rear Left | 345mm Front Disc; DFC Geoperformance Rotor - Slotted |
| 2020 | Hyundai | Veloster N | — | Rear Left | 345mm Front Disc; DFC Geoperformance Rotor - Slotted |
| 2019 | Hyundai | Veloster N | — | Rear Left | 345mm Front Disc; DFC Geoperformance Rotor - Slotted |
