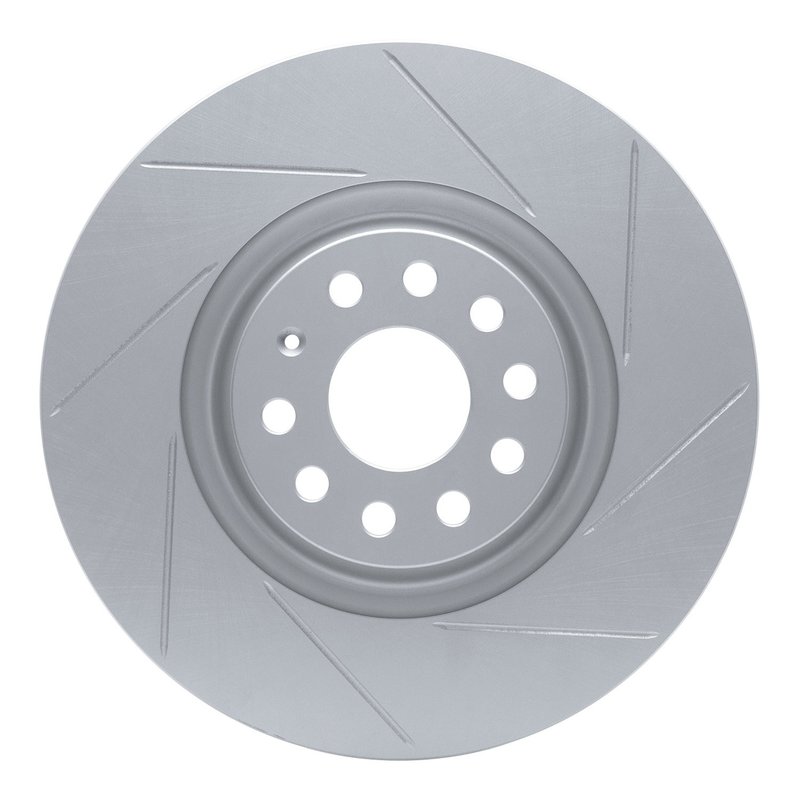

Dynamic Friction 810-74034R Disc Brake Rotor - Front Right

Overview

The Dynamic Friction 810-74034R is a slotted disc brake rotor built for front right applications with a 340 mm brake surface. It features a vented design, rust-resistant coating, and a Geospec Silver Grey hat finish for a clean, corrosion-resistant appearance.

Compatible With Audi, Volkswagen, Cupra, and Seat applications, this rotor is engineered for vehicles that use a 5-lug, 112 mm bolt pattern. The 810-74034R supports direct replacement needs where the original rotor matches the listed dimensions and fitment.

Key Features

• Slotted brake surface for consistent pad contact and surface cleaning.
• Vented rotor construction for improved heat management.
• Rust-resistant coating helps protect exposed surfaces.
• Plain disc finish with Geospec Silver Grey hat finish.
• 5-bolt, 112 mm bolt circle with 65 mm center hole diameter.

Detailed Description

The Dynamic Friction 810-74034R is a front right disc brake rotor with a 340 mm outside diameter, 30 mm nominal thickness, and 27 mm discard thickness. Its directional slotted surface and vented construction are suited to performance-oriented braking systems that require stable friction behavior and heat dissipation. The rotor is listed for Audi Q3, Volkswagen GTI, Volkswagen Jetta GLi, Volkswagen Tiguan, Cupra Ateca, Cupra Leon, Audi TTS Quattro, Cupra Formentor, Volkswagen Arteon, Audi A3 Quattro, Audi S3, Volkswagen Golf R, Seat Leon, and Volkswagen CC applications where the specified dimensions match.

Dynamic Friction 810-74034R is a fitment-based replacement for select Audi and Volkswagen platforms, including Audi Q3 and Volkswagen GTI applications. Verify rotor dimensions, bolt pattern, and position before installation to confirm the correct match for the vehicle.

Common Uses

• Replacing a worn or below-spec front brake rotor.
• Addressing brake pulsation caused by rotor wear or surface variation.
• Restoring braking performance when the rotor surface is scored or heat-affected.
• Matching a vented, slotted rotor specification for performance brake systems.
• Correcting corrosion on exposed rotor surfaces.

Installation Notes

Confirm front right fitment, 340 mm diameter, 112 mm bolt circle, and 65 mm center hole diameter before installation. This rotor is directional, so orientation matters during setup. Compare the existing rotor thickness and hub dimensions to the listed specifications for proper application matching on Audi Q3 and Volkswagen GTI platforms.

Quality Assurance

Dynamic Friction supplies this rotor with a rust-resistant coating and a corrosion-protected hat finish for added surface durability. The 810-74034R is built to the listed dimensional and surface specifications for consistent replacement use.
