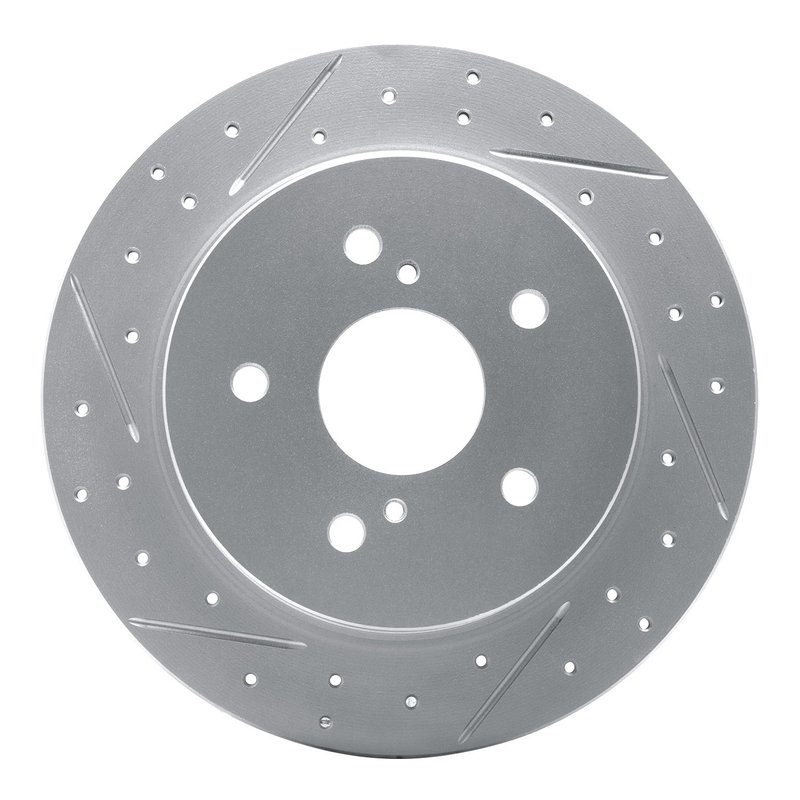

Dynamic Friction 830-01005L Disc Brake Rotor - Rear Left

Overview

Dynamic Friction 830-01005L is a rear left disc brake rotor for select Suzuki applications. It combines a slotted and drilled surface with a rust-resistant coating and Geospec Silver Grey hat finish for a clean, service-ready appearance.

Key Features

• Slotted and drilled rotor surface for consistent brake contact.
• Solid rotor construction with a plain disc finish.
• Rust-resistant coating helps protect the rotor surface.
• Geospec Silver Grey hat finish adds corrosion protection at the hub area.
• 5-lug pattern with 114.3 mm bolt circle and 62 mm center hole.

Detailed Description

This Dynamic Friction brake rotor is built for rear left fitment on 2007-2014 Suzuki SX4 and 2012 Suzuki SX4 Crossover applications. The 830-01005L uses a directional, slotted X drilled braking surface and a solid rotor design with 278 mm outside diameter, 43.5 mm overall height, and 8 mm discard thickness. The 830-01005L is a direct fit replacement for vehicles that require this exact rear left configuration.

DFC Geoperformance Rotor - Drilled and Slotted identifies the product line used for performance-oriented rotor designs with corrosion protection and a finished hub area. For buyers comparing brake rotor options for Suzuki SX4 service, this rotor provides the specified dimensions and surface design in one application-specific part.

What It Is Used For

• Replacing a worn rear left brake rotor.
• Addressing rotor scoring or uneven braking feel.
• Restoring proper brake surface thickness.
• Servicing rear disc brake applications on select Suzuki models.

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center hole diameter before installation. Confirm rear left placement and match the rotor to the vehicle’s rear disc brake setup. The directional braking surface must be installed in the correct orientation for proper operation.

Quality Assurance

Dynamic Friction supplies brake components with application-specific dimensions and finish details for accurate replacement fitment. Part number 830-01005L should be matched to the listed vehicle, position, and brake configuration before installation.
