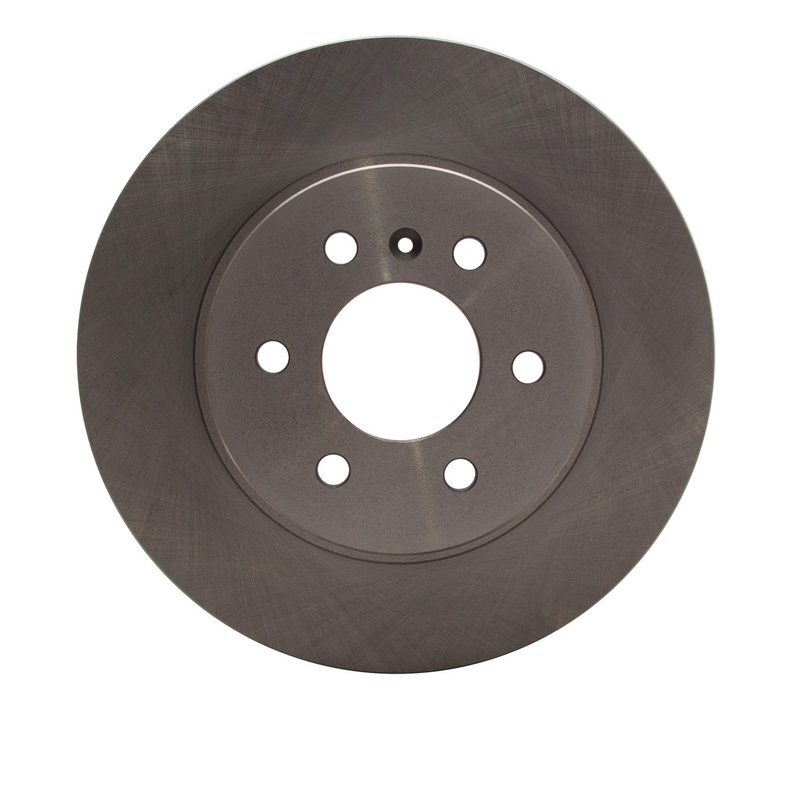

Dynamite Friction 600-52028 Disc Brake Rotor - Rear

Rear Disc Brake Rotor for GM Minivans

The Dynamite Friction DFC Brake Rotor 600-52028 is a solid rear disc brake rotor built for select Chevrolet, Pontiac, Buick, and Saturn applications. With a 300 mm outside diameter, 34.5 mm height, and 6-bolt pattern, it matches the rear brake dimensions used on specific 2006-2009 GM minivan platforms.

Use this rotor when you need a direct-fit rear brake rotor for Chevrolet Uplander, Pontiac Montana, Buick Terraza, or Saturn Relay models with the listed rear axle configurations. The DFC Brake Rotor line focuses on application-specific fitment and dimensional accuracy for brake service work.

Key Features

• Part number 600-52028
• Rear disc brake rotor for select GM vehicles
• Solid rotor design
• 300 mm outside diameter
• 34.5 mm overall height
• 6 bolt holes with 14.3 mm bolt hole diameter
• Inside diameter: 70.7 mm
• Nominal thickness: 12 mm
• Discard thickness: 10.5 mm

Detailed Description

This Dynamite Friction DFC Brake Rotor is engineered for rear brake service on 2006-2009 Chevrolet Uplander, 2006-2009 Pontiac Montana, 2006-2007 Buick Terraza, and 2006-2007 Saturn Relay models listed in the fitment data. The rotor’s solid construction and measured dimensions help ensure proper alignment with the rear brake assembly, including applications noted for I-Beam Rear Axle and Beam Rear Axle configurations. If you are replacing a worn rear rotor on a Chevrolet Uplander, Pontiac Montana, Buick Terraza, or Saturn Relay, part number 600-52028 provides the specified OE-style dimensions for the application.

What This Rotor Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Reduced braking performance from a worn rear rotor
• Noise from a rotor that has reached discard thickness
• Uneven rear brake contact on the specified GM platforms
• Service replacement for rear rotor corrosion or scoring

Installation Notes and Tips

Confirm rear axle configuration and vehicle fitment before installation. Verify rotor dimensions against the existing part, including outside diameter, height, bolt hole count, and thickness specifications. Clean the hub mounting surface before installing the new rotor, and inspect rear pads, caliper hardware, and bearings for wear while servicing the brake system. For fitment searches, this rotor is listed for Fits 2006-2009 Chevrolet Uplander, rear; Fits 2006-2009 Pontiac Montana, rear; Fits 2006-2007 Buick Terraza, rear; and Fits 2006-2007 Saturn Relay, rear.

Quality Assurance

Dynamite Friction DFC Brake Rotor 600-52028 is built to match the listed application dimensions and fitment requirements for the specified rear brake service use. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
