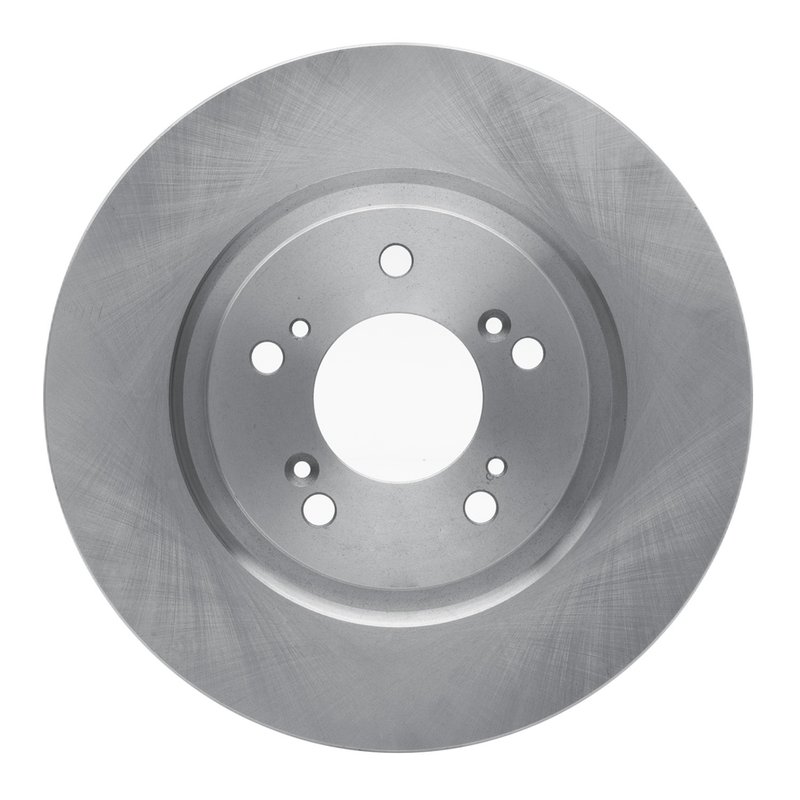

Dynamite Friction 600-58011 Disc Brake Rotor - Front

Front Brake Rotor for Acura NSX

The Dynamite Friction DFC Brake Rotor 600-58011 is a vented front disc brake rotor built for 1997-2005 Acura NSX applications. It is sized for the front axle and matches the vehicle-specific dimensions needed for a direct brake service replacement.

Key Features

• Part number: 600-58011
• DFC Brake Rotor product line from Dynamite Friction
• Vented disc brake rotor construction
• Outside diameter: 297 mm
• Nominal thickness: 28 mm
• Discard thickness: 26 mm
• Height: 36.2 mm
• Inside diameter: 70 mm
• 5-bolt hole design with 12.7 mm bolt hole diameter

Product Details

This DFC Brake Rotor is engineered around the dimensions required for the Acura NSX front brake setup. The vented design supports heat dissipation during repeated braking, while the 297 mm outside diameter, 28 mm nominal thickness, and 26 mm discard thickness provide the dimensional reference needed when comparing rotor wear and replacement requirements. The DFC Brake Rotor line focuses on application-specific brake service parts, and part number 600-58011 is listed for 1997-2005 Acura NSX front fitment. This part number, 600-58011, is the reference to use when matching the correct front rotor for Acura NSX brake maintenance.

Common Reasons for Replacement

• Brake pulsation from rotor wear or thickness variation
• Scoring, grooves, or heat checking on the braking surface
• Rotor thickness at or below discard specification
• Reduced braking consistency during front brake service
• Noise or vibration traced to worn front brake rotors

Installation Notes

Verify rotor dimensions, bolt pattern, and front axle placement before installation. Measure the existing rotor against the discard thickness and nominal thickness specifications to confirm replacement need. Clean the hub mounting surface thoroughly so the new rotor seats flat, and inspect pads and caliper components at the same time to complete the brake service correctly. Fits 1997-2005 Acura NSX, front.

Quality Assurance

Built to the listed dimensional specifications for the Acura NSX front brake application, this rotor supports accurate fitment checks and consistent brake service planning. Part number 600-58011 should be matched to the confirmed vehicle year and front position before installation.
