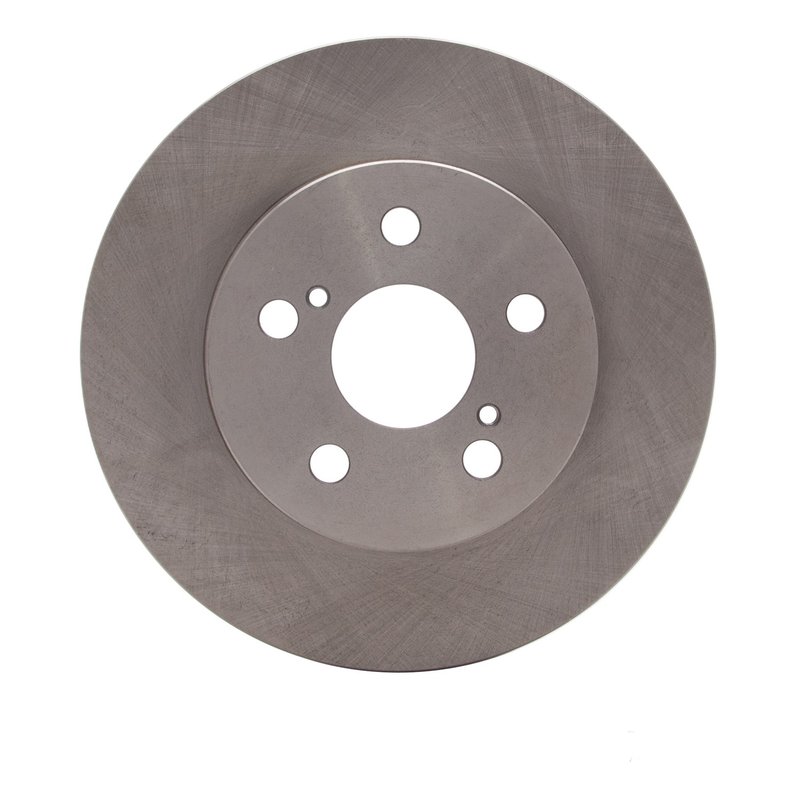

Dynamite Friction 600-76151 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Toyota Corolla and Prius Models

The Dynamite Friction DFC Brake Rotor 600-76151 is engineered to provide consistent braking performance for select Toyota vehicles. Designed specifically for Toyota Corolla, Prius, Prius AWD-e, and Prius Prime models, this vented disc brake rotor ensures effective heat dissipation and durability under various driving conditions.

Key Features of the DFC Brake Rotor 600-76151

• Nominal thickness of 25 mm for optimal rotor strength
• Discard thickness set at 22 mm to indicate service limits
• Vented rotor design enhances cooling and reduces brake fade
• Outside diameter measures 255 mm, compatible with specified Toyota models
• Five bolt holes with a diameter of 14.6 mm for secure mounting
• Inside diameter of 55 mm and height of 49.3 mm for precise fitment

About the DFC Brake Rotor Product Line

The DFC Brake Rotor line by Dynamite Friction focuses on delivering rotors that balance performance and reliability. This product line includes vented rotors like the 600-76151, which are designed to improve heat dissipation during braking. The vented design helps maintain consistent braking efficiency, especially in vehicles such as the Toyota Corolla and Prius series, where reliable stopping power is essential.

Detailed Product Description

The Dynamite Friction DFC Brake Rotor 600-76151 is a vented disc brake rotor tailored for Toyota Corolla and Prius models, including the Prius AWD-e and Prius Prime. With a nominal thickness of 25 mm and a discard thickness of 22 mm, this rotor provides a clear service threshold to maintain braking safety. The vented design allows air to circulate between the rotor surfaces, reducing heat buildup and minimizing brake fade during extended use. Its 255 mm outside diameter and 55 mm inside diameter ensure compatibility with the specified Toyota vehicles, while the five bolt holes with a 14.6 mm diameter provide secure and precise installation.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake vibration
• Improves braking performance in Toyota Corolla and Prius models
• Addresses brake fade due to overheating with vented rotor design
• Restores proper rotor thickness for safe braking operation
• Ensures secure fitment with correct bolt hole pattern and dimensions

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below 22 mm discard thickness
• Ensure proper cleaning of hub surface to prevent rotor runout
• Torque bolts to manufacturer specifications for secure mounting
• Inspect brake pads and replace if worn to maintain optimal braking
• Check for any signs of rotor warping or damage during installation

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor 600-76151 to meet industry standards for durability and performance. The rotor undergoes quality control checks to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Dynamite Friction products typically adhere to standard automotive part warranties covering manufacturing defects.
