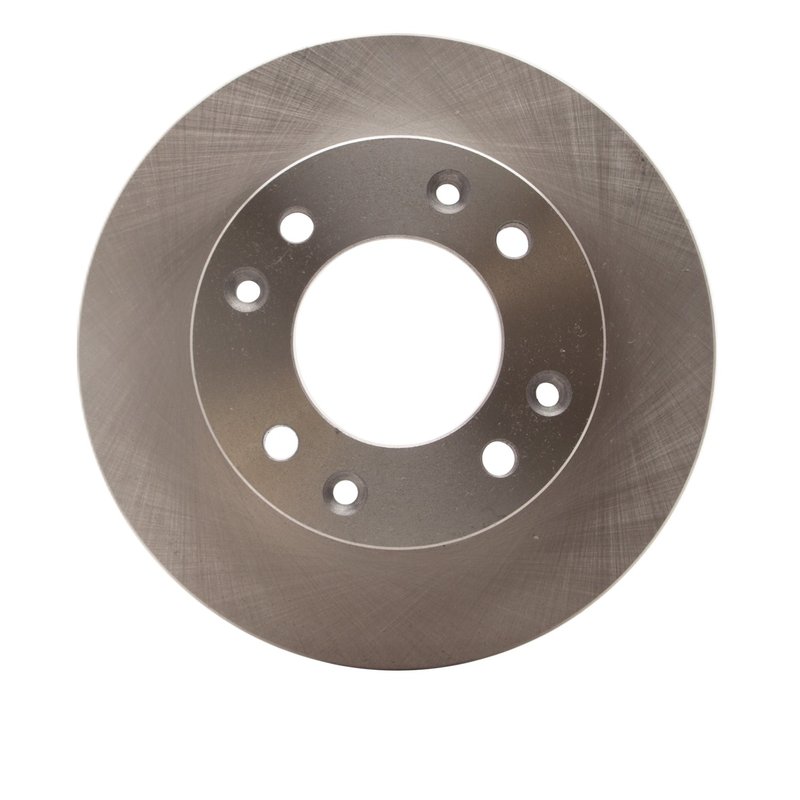

Dynamite Friction 600-80012 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC Brake Rotor 600-80012

The Dynamite Friction DFC Brake Rotor 600-80012 is engineered for Mazda RX-7 models requiring reliable disc brake performance. This vented rotor is designed to maintain optimal braking efficiency and heat dissipation under demanding driving conditions.

• Compatible with Mazda RX-7 vehicles
• Part number 600-80012 for precise identification
• Vented disc brake rotor design for improved cooling
• Nominal thickness of 22 mm with a discard thickness of 20 mm
• Four bolt holes with a 13.1 mm diameter each
• Outside diameter measures 250 mm, inside diameter 77 mm
• Rotor height of 63.1 mm

Detailed Specifications and Features

This DFC Brake Rotor from Dynamite Friction features a vented design that enhances heat dissipation, reducing the risk of brake fade during extended use. The rotor’s nominal thickness is 22 mm, with a discard thickness of 20 mm, ensuring a clear maintenance threshold for safety. The rotor includes four bolt holes, each with a diameter of 13.1 mm, compatible with the Mazda RX-7’s mounting system. Its outside diameter of 250 mm and inside diameter of 77 mm provide the correct fitment and braking surface area for this vehicle. The rotor height is 63.1 mm, matching the specifications required for proper installation and operation.

About the DFC Brake Rotor Product Line

The DFC Brake Rotor line by Dynamite Friction focuses on delivering rotors that balance durability and performance. This product line includes vented rotors like the 600-80012, which are designed to improve airflow and cooling compared to solid rotors. The DFC Brake Rotor series is tailored to meet the specific requirements of various vehicle models, including the Mazda RX-7, ensuring compatibility and consistent braking performance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mazda RX-7 disc brake systems
• Addresses brake fade caused by overheating during aggressive driving
• Resolves vibration or pulsation issues linked to rotor thickness irregularities
• Improves braking consistency by maintaining proper rotor dimensions
• Supports safe braking by adhering to discard thickness limits

Installation Notes and Tips

When installing the Dynamite Friction DFC Brake Rotor 600-80012, ensure the rotor surface is clean and free of any contaminants. Verify that the bolt hole pattern matches the Mazda RX-7 specifications, with four holes at 13.1 mm diameter. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Check rotor thickness before installation to confirm it meets or exceeds the nominal 22 mm specification and is above the 20 mm discard thickness. Proper torque settings on mounting bolts should be followed according to vehicle manufacturer guidelines.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor 600-80012 to meet industry standards for durability and performance. While specific warranty details are not provided here, Dynamite Friction products typically undergo rigorous quality control to ensure reliability. Users should consult product documentation or contact the manufacturer for warranty information related to this rotor.
