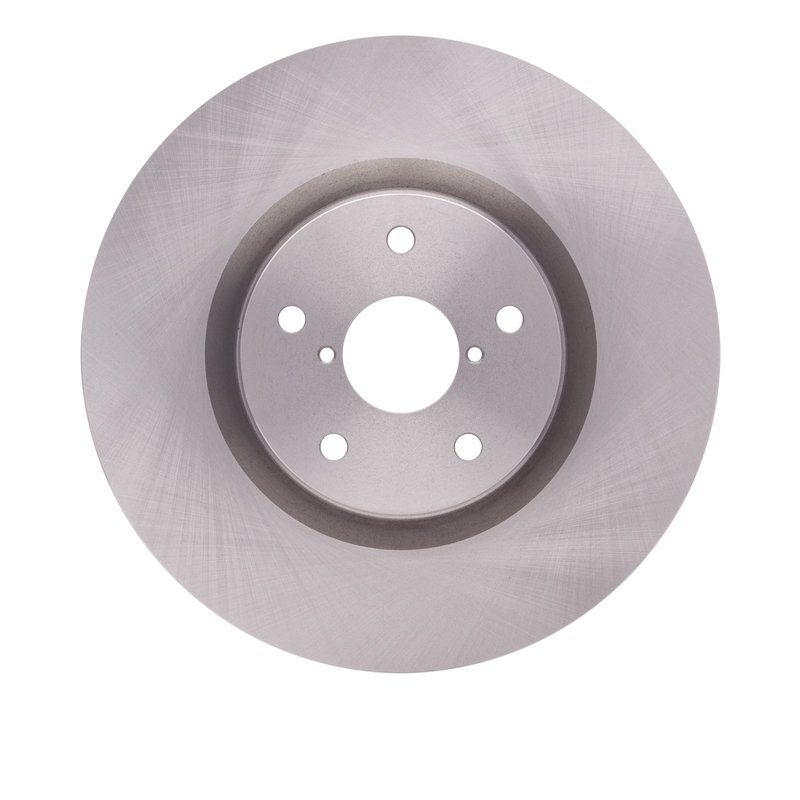

Dynamite Friction 604-13016 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-13016

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-13016 is engineered for Subaru Impreza, WRX, and WRX STI models. This vented disc brake rotor offers precise dimensions and coating designed to maintain braking performance and rotor longevity under demanding conditions.

• Compatible with Subaru Impreza, WRX, and WRX STI
• Part number 604-13016 for accurate identification
• Vented rotor design for improved heat dissipation
• Nominal thickness of 30 mm and discard thickness of 28 mm
• Outside diameter of 326 mm and inside diameter of 58 mm
• Five bolt holes with 12.9 mm diameter each
• Height of 53.1 mm for proper fitment

Detailed Specifications and Features

This disc brake rotor features a vented design that enhances cooling efficiency, reducing the risk of brake fade during extended use. The nominal thickness of 30 mm ensures structural integrity, while the discard thickness of 28 mm indicates when replacement is necessary to maintain safe braking performance. The rotor's outside diameter measures 326 mm, with an inside diameter of 58 mm, matching the hub size for a secure fit. It includes five bolt holes, each with a diameter of 12.9 mm, compatible with the bolt pattern of Subaru Impreza, WRX, and WRX STI models. The rotor height of 53.1 mm ensures proper alignment with the brake caliper assembly.

About the DFC GEOSPEC Coated Rotor Product Line

The DFC GEOSPEC Coated Rotor line by Dynamite Friction is designed to provide enhanced corrosion resistance and consistent braking performance. The coating applied to this rotor helps protect against rust and environmental wear, extending the rotor's service life. This product line focuses on maintaining OEM specifications while offering improved durability for Subaru vehicles, including the Impreza, WRX, and WRX STI.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Impreza, WRX, and WRX STI
• Improves braking consistency by reducing heat buildup with vented design
• Addresses rotor corrosion issues through protective coating
• Restores proper rotor thickness to maintain braking safety
• Ensures correct fitment with precise bolt hole and diameter measurements

Installation Notes and Tips

When installing the Dynamite Friction DFC GEOSPEC Coated Rotor 604-13016, ensure the rotor thickness is above the discard thickness of 28 mm. Verify the bolt hole pattern matches the vehicle’s hub assembly. Clean the hub surface before installation to prevent rotor runout. It is recommended to replace brake pads simultaneously to ensure optimal braking performance. Proper torque specifications should be followed for the five 12.9 mm bolt holes to secure the rotor safely.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC GEOSPEC Coated Rotor 604-13016 to meet or exceed OEM standards for Subaru Impreza, WRX, and WRX STI models. The vented rotor design and protective coating contribute to durability and consistent braking performance. Warranty details should be confirmed with the supplier or manufacturer, as coverage may vary.
