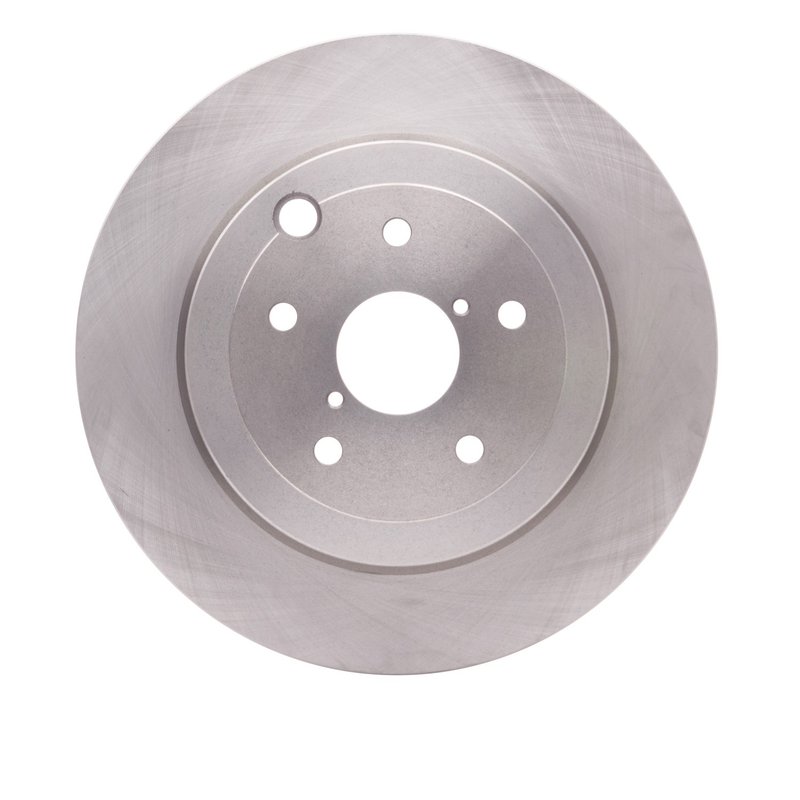

Dynamite Friction 604-13022 Disc Brake Rotor - Rear

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-13022

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-13022 is engineered for Subaru Impreza, WRX, and WRX STI models. This vented disc brake rotor offers precise dimensions and a durable coating designed to maintain performance and resist corrosion.

• Nominal thickness: 20 mm
• Discard thickness: 18 mm
• Outside diameter: 316 mm
• Inside diameter: 58 mm
• Bolt hole diameter: 12.8 mm
• Bolt hole quantity: 5
• Height: 63.5 mm
• Vented rotor design for improved heat dissipation

Details on the DFC GEOSPEC Coated Rotor Product Line

The DFC GEOSPEC Coated Rotor line by Dynamite Friction focuses on rotors with protective coatings that help reduce rust and extend rotor life. This product line is designed to meet the specific braking demands of performance-oriented vehicles like the Subaru WRX and WRX STI, providing consistent braking performance under various driving conditions.

Technical Description and Specifications

This disc brake rotor, part number 604-13022, features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness is 20 mm, with a discard thickness of 18 mm, indicating when replacement is necessary to maintain safe braking performance. The rotor measures 316 mm in outside diameter and 58 mm inside diameter, with five bolt holes each 12.8 mm in diameter, ensuring proper fitment on Subaru Impreza, WRX, and WRX STI models. The rotor height is 63.5 mm, matching OEM specifications for these vehicles.

Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Impreza, WRX, and WRX STI
• Improves braking consistency by reducing heat buildup with vented design
• Helps prevent rust and corrosion with GEOSPEC coating
• Restores proper rotor thickness to maintain braking safety
• Compatible with vehicles requiring 5-bolt, 12.8 mm bolt hole diameter rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 18 mm before installation. Clean the hub surface to prevent rotor runout and ensure proper seating. Use appropriate torque specifications for the 5-bolt pattern with 12.8 mm bolt holes. It is recommended to replace brake pads when installing new rotors to optimize braking performance.

Quality Assurance and Warranty

Dynamite Friction rotors, including the 604-13022, are manufactured to meet strict quality standards for fitment and durability. The GEOSPEC coating provides additional protection against corrosion, extending rotor life. Warranty details should be confirmed with the product documentation or supplier.
