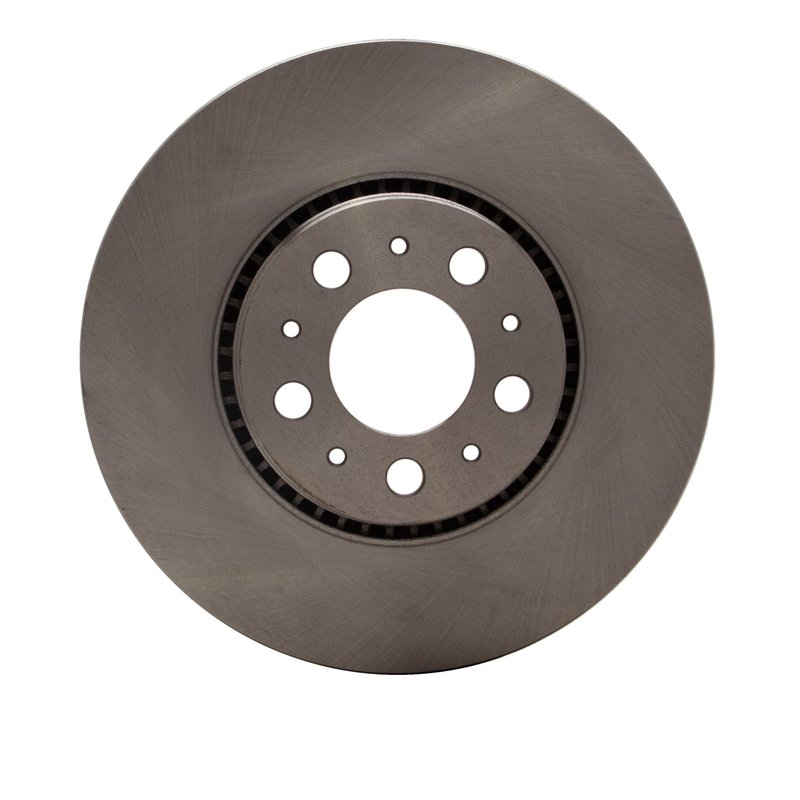

Dynamite Friction 604-27025 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-27025

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-27025 is engineered for reliable braking performance on select Volvo models. Designed specifically for Volvo S60, S80, and V70 vehicles, this vented disc brake rotor offers precise fitment and consistent durability.

• Nominal thickness: 28 mm
• Discard thickness: 25 mm
• Outside diameter: 305 mm
• Inside diameter: 68 mm
• Bolt hole diameter: 16.5 mm
• Bolt hole quantity: 5
• Height: 50.3 mm
• Vented rotor design for heat dissipation

DFC GEOSPEC Coated Rotor Product Line Details

The DFC GEOSPEC Coated Rotor line by Dynamite Friction features rotors with a protective coating that helps resist corrosion and extends rotor life. This coating is particularly beneficial for vehicles exposed to varying weather conditions, such as the Volvo S60, S80, and V70. The vented design improves heat dissipation during braking, reducing the risk of brake fade and maintaining consistent stopping power.

Technical Description and Specifications

This disc brake rotor is vented, measuring 305 mm in outside diameter and 50.3 mm in height, which supports effective heat management during braking. The nominal thickness of 28 mm ensures structural integrity, while the discard thickness of 25 mm indicates when the rotor should be replaced to maintain safety standards. The rotor features five bolt holes with a diameter of 16.5 mm, designed to fit securely on compatible Volvo models. The inside diameter of 68 mm aligns with the hub specifications for proper installation.

Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S60, S80, and V70
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking performance by reducing heat buildup
• Prevents rotor corrosion with specialized coating
• Restores proper rotor thickness for safe braking

Installation Notes and Tips

Ensure the rotor is compatible with your Volvo model by verifying the part number 604-27025. Clean the hub surface before installation to prevent runout. Use proper torque specifications on the five bolt holes to secure the rotor. It is recommended to replace brake pads simultaneously to optimize braking performance. Check rotor thickness regularly and replace when it reaches the discard thickness of 25 mm.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC GEOSPEC Coated Rotor 604-27025 to meet industry standards for durability and performance. The protective coating enhances corrosion resistance, contributing to longer rotor life. Warranty details should be confirmed with the point of purchase or manufacturer documentation to ensure coverage specifics.
