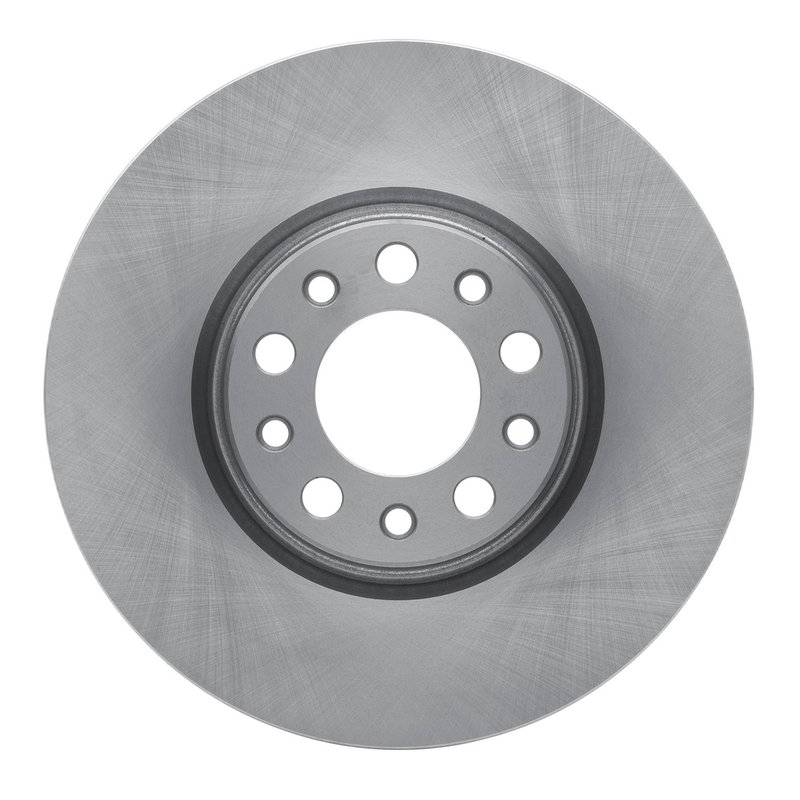

Dynamite Friction 604-39025 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-39025

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-39025 is engineered for reliable braking performance on select Chrysler, Dodge, Fiat, and Jeep vehicles. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for models including the 200, 500X, Compass, Dart, and Renegade.

• Nominal thickness: 28 mm
• Discard thickness: 26 mm
• Outside diameter: 305 mm
• Inside diameter: 70 mm
• Bolt hole diameter: 16.8 mm
• Bolt hole quantity: 5
• Height: 39.7 mm
• Vented rotor design for improved cooling

Details on the DFC GEOSPEC Coated Rotor Product Line

The DFC GEOSPEC Coated Rotor line by Dynamite Friction focuses on rotors with protective coatings to resist corrosion and extend service life. This coating helps maintain rotor integrity under various driving conditions, making it suitable for vehicles like the Jeep Renegade and Dodge Dart. The 604-39025 part benefits from this coating, ensuring consistent braking performance over time.

Technical Specifications and Compatibility

This disc brake rotor features a vented design with a 305 mm outside diameter and a 70 mm inside diameter, optimized for heat dissipation during braking. The rotor thickness starts at a nominal 28 mm and should be replaced once it reaches the discard thickness of 26 mm to maintain safe braking. It includes five bolt holes with a diameter of 16.8 mm, compatible with the specified vehicle models. The rotor height is 39.7 mm, fitting the brake assembly specifications of Chrysler 200, Dodge 500X, Fiat 500X, Jeep Compass, Dodge Dart, and Jeep Renegade models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chrysler, Dodge, Fiat, and Jeep vehicles
• Improves braking consistency and reduces brake fade
• Addresses rotor corrosion issues with coated surface
• Restores proper rotor thickness for safe braking performance
• Compatible upgrade for vented rotor brake systems

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets the nominal 28 mm specification. Replace the rotor if thickness is at or below the discard thickness of 26 mm. Properly torque the five 16.8 mm bolt holes to manufacturer specifications. Clean the rotor surface before installation to remove any protective oils or residues. This rotor is designed for vented brake systems, so verify compatibility with your vehicle’s brake assembly.

Quality Assurance and Warranty

Dynamite Friction rotors, including the 604-39025, undergo quality control to meet industry standards for durability and performance. The DFC GEOSPEC Coated Rotor line includes corrosion-resistant coatings to extend rotor life. Warranty details should be confirmed with the original equipment provider or distributor.
