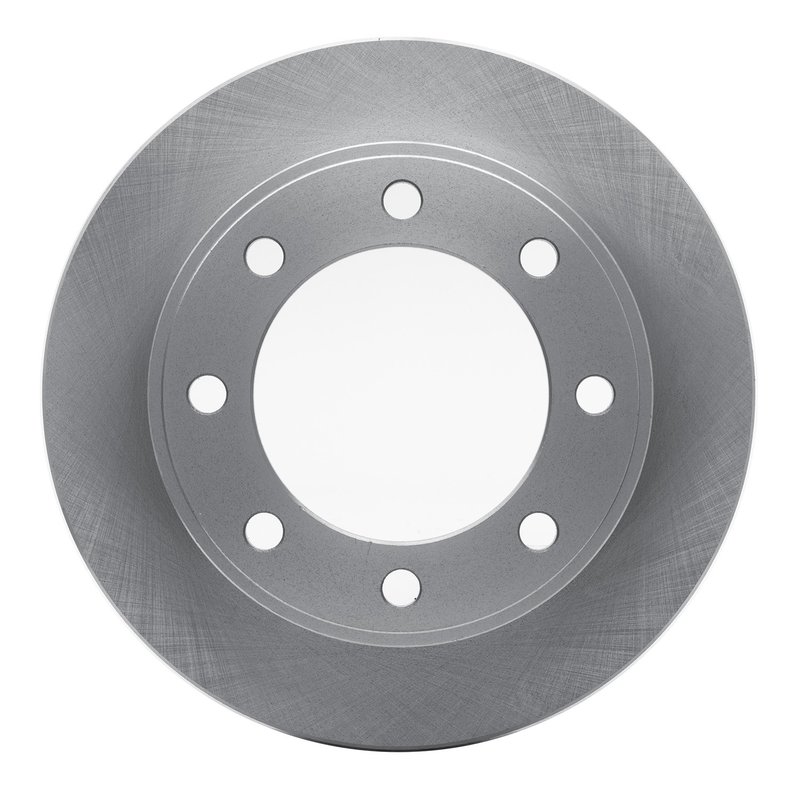

Dynamite Friction 604-54147 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor

The Dynamite Friction DFC GEOSPEC Coated Rotor (part number 604-54147) is engineered for reliable braking performance on Ford F-150 and F-150 Heritage models. This vented disc brake rotor is designed to meet the specific requirements of these trucks, ensuring consistent stopping power and durability.

• Compatible with Ford F-150 and F-150 Heritage
• Part number 604-54147 for precise identification
• Vented rotor design for improved heat dissipation
• Nominal thickness of 26 mm with discard thickness at 24.5 mm
• 308 mm outside diameter and 90 mm inside diameter
• Five bolt holes with 15.2 mm diameter each
• Rotor height of 52 mm

Detailed Specifications and Features

This disc brake rotor features a vented design that helps reduce heat buildup during braking, which is critical for maintaining brake performance and preventing warping. The rotor's nominal thickness is 26 mm, with a discard thickness of 24.5 mm, indicating when replacement is necessary to maintain safety and effectiveness. The 308 mm outside diameter and 90 mm inside diameter are tailored to fit the brake assembly of Ford F-150 and F-150 Heritage trucks. The rotor includes five bolt holes, each with a diameter of 15.2 mm, ensuring secure mounting. With a height of 52 mm, this rotor fits precisely within the brake system specifications for these vehicles.

About the DFC GEOSPEC Coated Rotor Line

The DFC GEOSPEC Coated Rotor line by Dynamite Friction is designed to provide enhanced corrosion resistance and consistent braking performance. The coating helps protect the rotor surface from rust and environmental damage, extending the service life of the part. This product line focuses on delivering reliable, OEM-quality rotors that meet the exact fitment and performance standards required by specific vehicle models, such as the Ford F-150 series.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford F-150 and F-150 Heritage
• Improves braking consistency and reduces brake fade under heavy use
• Addresses rotor corrosion issues with protective coating
• Restores proper rotor thickness to maintain safe braking distances
• Ensures proper fitment with exact bolt hole pattern and dimensions

Installation Notes and Tips

When installing the Dynamite Friction DFC GEOSPEC Coated Rotor (604-54147), ensure the rotor thickness is above the discard thickness of 24.5 mm. Clean the hub surface before mounting to prevent uneven rotor seating. Use proper torque specifications on the five 15.2 mm bolt holes to secure the rotor. It is recommended to inspect brake pads and replace them if worn to optimize braking performance. Proper bedding-in of the new rotor and pads will help achieve consistent braking results.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC GEOSPEC Coated Rotor to meet stringent quality standards. The coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Dynamite Friction products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
