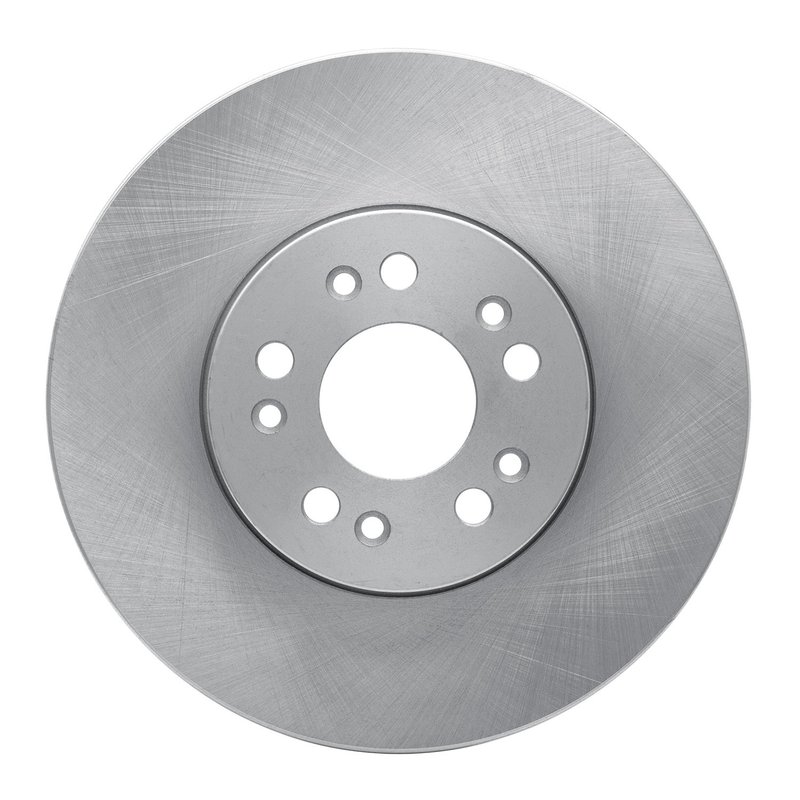

Dynamite Friction 604-63023 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-63023

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-63023 is engineered for reliable braking performance on select Mercedes-Benz models. Designed as a vented disc brake rotor, it offers consistent heat dissipation and durability for vehicles such as the Mercedes-Benz 300SD, 400SEL, and S500.

• Nominal thickness: 30 mm
• Discard thickness: 27.4 mm
• Outside diameter: 320 mm
• Inside diameter: 67 mm
• Bolt hole diameter: 15.3 mm
• Bolt hole quantity: 5
• Height: 82 mm
• Vented rotor design for improved cooling

DFC GEOSPEC Coated Rotor Product Line Details

The DFC GEOSPEC Coated Rotor line by Dynamite Friction features rotors with a protective coating designed to resist corrosion and extend rotor life. This coating helps maintain rotor integrity under various driving conditions, making it suitable for Mercedes-Benz vehicles requiring precise braking components. The 604-63023 part number belongs to this line, ensuring compatibility and performance aligned with manufacturer specifications.

Technical Description and Specifications

This disc brake rotor is vented, which enhances heat dissipation during braking, reducing the risk of brake fade. With a nominal thickness of 30 mm and a discard thickness of 27.4 mm, the rotor maintains structural integrity throughout its service life. The 320 mm outside diameter and 67 mm inside diameter are designed to fit specific Mercedes-Benz models, secured by five bolt holes each measuring 15.3 mm in diameter. The rotor height of 82 mm ensures proper alignment within the braking system.

Compatible Mercedes-Benz Models and Applications

• Mercedes-Benz 300SD, 300SE
• Mercedes-Benz 400SE, 400SEL
• Mercedes-Benz 500SEC, 500SEL
• Mercedes-Benz 600SEC, 600SEL
• Mercedes-Benz CL500, CL600
• Mercedes-Benz S320, S350, S420, S500, S600

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Corrosion and rust on rotor surfaces
• Reduced braking efficiency from worn rotors
• Brake noise caused by uneven rotor wear
• Vibration during braking from rotor thickness variation

Installation Notes and Tips

Ensure the rotor is installed on compatible Mercedes-Benz models listed above. Verify bolt hole alignment and torque specifications according to manufacturer guidelines. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Clean the rotor surface before installation to remove any protective coating residue that may affect initial braking.

Quality Assurance and Warranty

Dynamite Friction rotors, including the DFC GEOSPEC Coated Rotor 604-63023, are manufactured to meet or exceed OEM standards. The protective coating enhances corrosion resistance, contributing to longer service life. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
