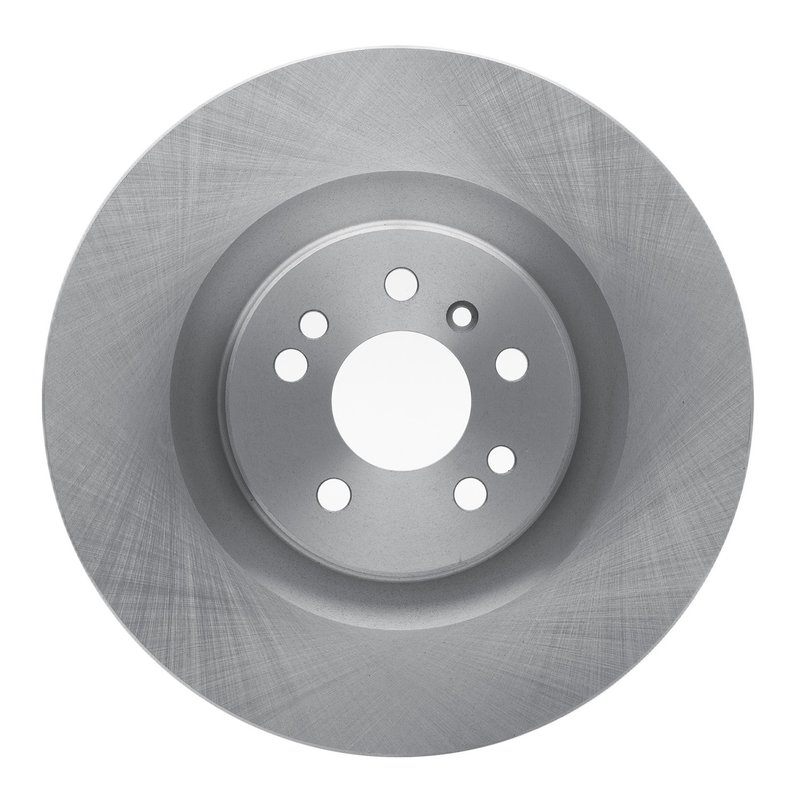

Dynamite Friction 604-63130 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor 604-63130

The Dynamite Friction DFC GEOSPEC Coated Rotor 604-63130 is engineered for reliable braking performance on select Mercedes-Benz models. Designed as a vented disc brake rotor, it offers enhanced heat dissipation and durability for vehicles such as the GL320, ML350, and R500.

• Nominal thickness: 32 mm
• Discard thickness: 29.4 mm
• Outside diameter: 350 mm
• Inside diameter: 67 mm
• Bolt hole diameter: 15.3 mm
• Bolt hole quantity: 5
• Height: 54.8 mm
• Vented rotor design for improved cooling

Detailed Product Description

This disc brake rotor from Dynamite Friction is part of the DFC GEOSPEC Coated Rotor line, which features a specialized coating to resist corrosion and extend rotor life. The vented design allows for better heat dissipation during braking, reducing the risk of brake fade under demanding conditions. With a nominal thickness of 32 mm and a discard thickness of 29.4 mm, this rotor maintains structural integrity and performance throughout its service life. The rotor measures 350 mm in outside diameter and includes five bolt holes with a diameter of 15.3 mm, ensuring compatibility with specific Mercedes-Benz models.

DFC GEOSPEC Coated Rotor Product Line

The DFC GEOSPEC Coated Rotor line focuses on providing rotors with a protective coating that helps prevent rust and corrosion, which is especially beneficial in regions with harsh weather conditions. This coating contributes to longer rotor life and consistent braking performance. The 604-63130 part number is a vented rotor designed to meet the specifications required by Mercedes-Benz GL and ML series vehicles, offering a balance of durability and heat management.

Compatible Vehicles and Common Applications

• Mercedes-Benz GL320, GL350, GL450, GL550
• Mercedes-Benz ML320, ML350, ML450, ML500, ML550
• Mercedes-Benz R320, R350, R500
• Replacement for worn or warped rotors
• Addressing brake noise or vibration issues
• Improving heat dissipation for heavy-duty braking

Installation Notes and Tips

When installing the Dynamite Friction 604-63130 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the bolt hole pattern and diameter match the vehicle specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed when securing the rotor to avoid warping or uneven wear.

Quality Assurance and Warranty

Dynamite Friction rotors undergo rigorous quality control to meet OEM standards for fit and function. The DFC GEOSPEC Coated Rotor 604-63130 is manufactured to provide consistent braking performance and corrosion resistance. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use conditions.
