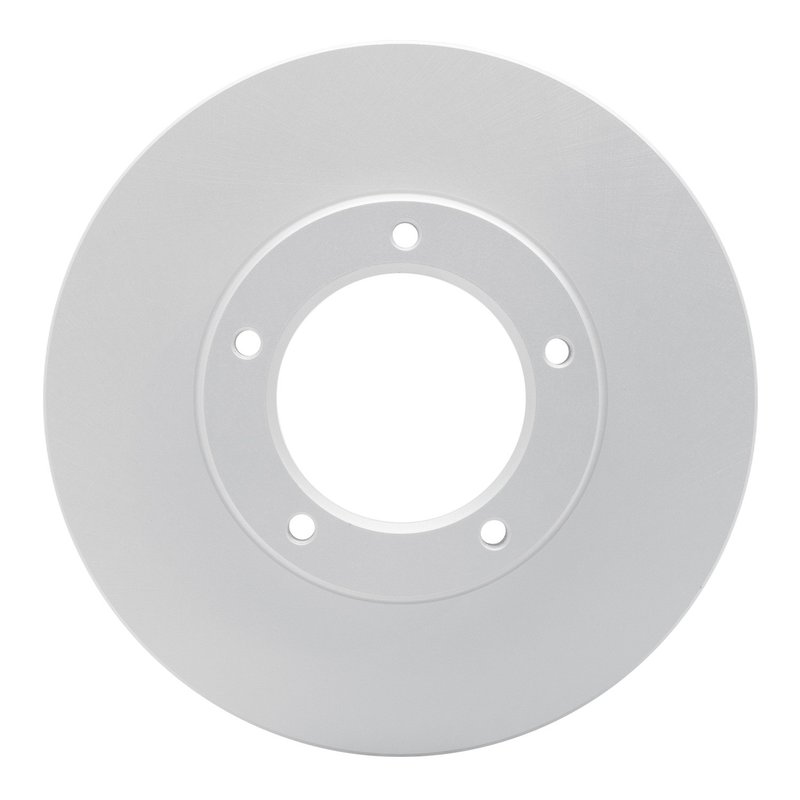

Dynamite Friction 604-76096 Disc Brake Rotor - Front

Overview of Dynamite Friction DFC GEOSPEC Coated Rotor

The Dynamite Friction DFC GEOSPEC Coated Rotor (part number 604-76096) is engineered for Toyota Pickup models requiring reliable disc brake performance. This vented rotor is designed to maintain optimal braking efficiency and durability under demanding conditions.

• Nominal thickness: 22 mm
• Discard thickness: 21 mm
• Outside diameter: 248 mm
• Inside diameter: 84.1 mm
• Bolt hole quantity: 5
• Bolt hole diameter: 10x1.25 mm
• Height: 46 mm
• Vented rotor design for heat dissipation

DFC GEOSPEC Coated Rotor Product Line Details

The DFC GEOSPEC Coated Rotor line from Dynamite Friction focuses on rotors with protective coatings that help resist corrosion and extend rotor life. This coating is particularly beneficial for vehicles like the Toyota Pickup that may be exposed to varied driving environments. The vented design enhances heat dissipation, reducing the risk of brake fade during extended use.

Technical Description and Specifications

This disc brake rotor features a nominal thickness of 22 mm and a discard thickness of 21 mm, ensuring a clear service limit for safe operation. The rotor’s 248 mm outside diameter and 84.1 mm inside diameter are matched to the Toyota Pickup’s brake system requirements. With five bolt holes sized at 10x1.25 mm, installation aligns precisely with factory specifications. The 46 mm height and vented rotor design improve cooling efficiency, which helps maintain consistent braking performance under load.

Applications and Problem Solving

• Replacement rotor for worn or warped Toyota Pickup disc brakes
• Improves heat dissipation to reduce brake fade during heavy braking
• Resists corrosion with GEOSPEC coating for longer service life
• Restores braking performance affected by rotor thickness below discard limit
• Compatible with Toyota Pickup models requiring 5-bolt, 10x1.25 mm bolt pattern rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 21 mm before installation. Clean the hub surface to prevent runout and ensure proper rotor seating. Use the correct torque specifications for the 5 bolt holes (10x1.25 mm) to avoid warping. It is recommended to replace brake pads simultaneously to optimize braking performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC GEOSPEC Coated Rotor to meet or exceed OEM standards for fit, form, and function. The protective coating helps prevent rust and corrosion, contributing to extended rotor life. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
